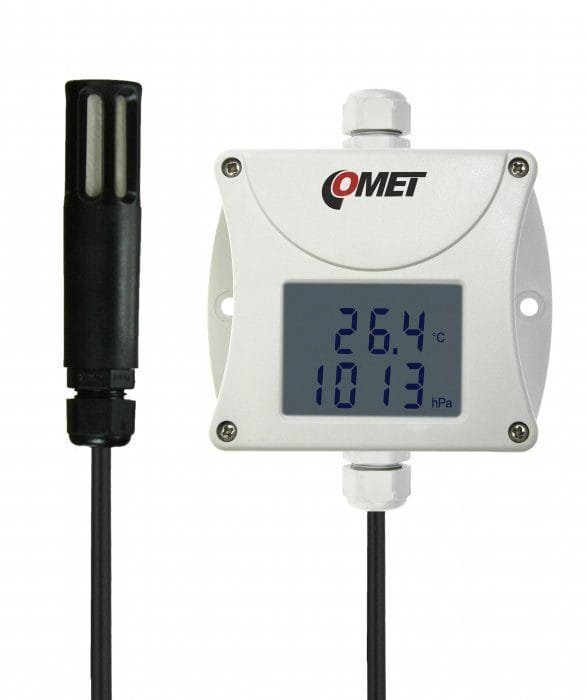

Comet T7311 – Industrial Temperature, Humidity, Barometric Pressure Transmitter, RS232 Output

• Computerized design ensures temperature compensation of the humidity sensor and fails indication
• Indoor
• Transmitters are designed for use in a non-aggressive environment
• Transmitter contains a microprocessor-based control circuitry in a durable plastic case with connection terminals and sensors in a filter with stainless steel mesh

Degrees Celsius and Fahrenheit are user selectable. Transmitter contains a microprocessor-based control circuitry in a durable plastic case with connection terminals and sensors in a filter with stainless steel mesh. Large dual line LCD for simultaneous display of T+RH or other humidity interpretation is an advantage. Display is possible to switch off. Computerized design ensures temperature compensation of the humidity sensor and fails indication. State-of-the-art capacitive polymer sensor ensures excellent calibration long-term stability, inertia against water, and condensation. Transmitters are designed for use in non-aggressive environment.

Measured values are converted to RS232 serial output. Serial output RS232 – transmitter works with ModBus RTU communication protocol or with Advantech ADAM compatible protocol. Protocol is user selectable in special configuration mode by means of the PC. Serial link enables to read actual readings and modify transmitter configuration. Instrument works always in slave mode, i.e. responds only to master device query. Transmitters have the address space available from 1 to 255. Communication speed is 110 to 115200B.

Applications

• Building HVAC management
• Building HVAC automation
• Warehouses
• Glasshouses
• Manufacturers
• Museums, archives, galleries
• Air-conditioned rooms
• Weather stations

• Comet Database
• Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
• Sensor RS485/232 utility
• Allows communication of sensors with RS485/RS232 output and sending data to Comet Database.
• T-Sensor software
• Free configuration utility for Comet Transmitters and Regulators.
• Sensor Reader software
• Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
