Compliance 00-3500S-RF – Hipot Tester, 0-2500Vac 20mA, 0-3500Vdc 5mA and Adjustable Ground Continuity
16 people are viewing this product right now
Original price was: $2,849.00.$2,775.00Current price is: $2,775.00.
Shipping calculated at checkout.
Estimated delivery:5 days

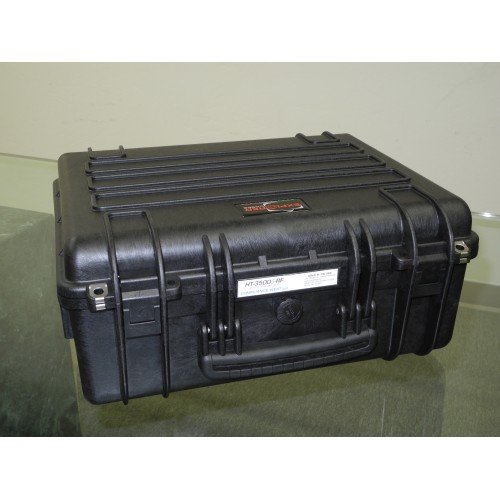

Hipot Tester, 0-2500Vac @ 20mA, 0-3500Vdc @ 5mA and Adjustable Ground Continuity, Portable and Rugged!
- • AC output: 0-2500V Leakage current up to 20mA
- DC output: 0-3500V Leakage current up to 5mA.
- Logic controlled, one button test, easy setup, LED’s indicate test progress buzzer sounds and testing is terminated.
- Output voltage, leakage current limit, Ground continuity limit, voltage ramp time and test duration are controlled from front panel.
- Ground continuity test is defeatable for testing of two wire products .
- Operation instructions provided on front panel.
- Performs UL and CSA safety agency testing requirements for production hipot testing
- Supports PLC interface for complete automated testing with RI option

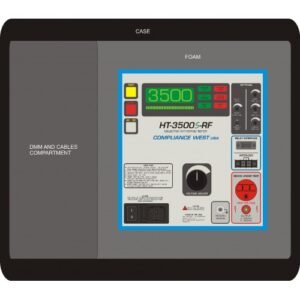

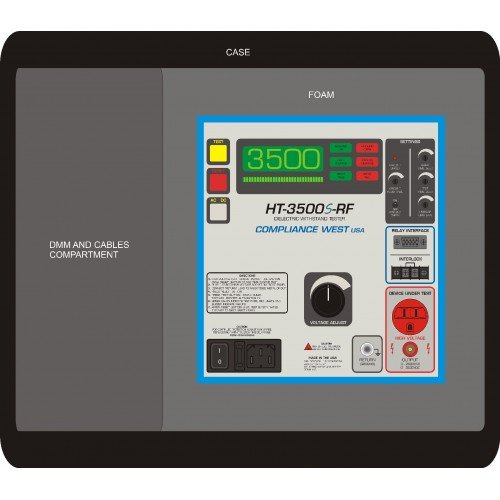

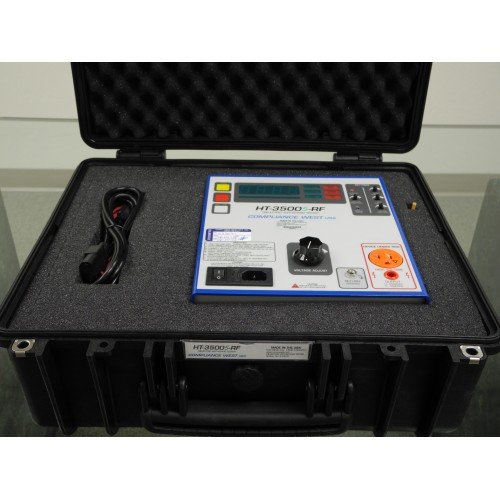

- Includes specialized Explorer customized inserts for maximum protection and durability
- Custom voltage adjustment knob for ease-of-use.
Guarantee Safe and Secure Payment Checkout
Description
Compliance 00-3500S-RF
- AC output: 0-2500V Leakage current up to 20mA
- DC output: 0-3500V Leakage current up to 5mA
- Nema 5-15R receptacle provided on front panel for high voltage output.
- One year calibration cycle
- One year warranty
Hipot Tester, 0-2500Vac 20mA, 0-3500Vdc 5mA and Adjustable Ground Continuity
- High precision leakage current, duration and ground continuity settings.
- Allows no load setup of leakage current and test dwell times.
- Once entered, ground continuity setting, leakage current and test dwell times can be referenced on the front panel display when unit is not testing.
- Leakage currents can be set from 1-20 mA AC or 1-5 mA DC in 0.1mA increments.
- Dwell times can be set from 1-60 seconds in 1 second increments.
- Two tests with one setup. Conducts UL/CSA Ground continuity and Hipot tests with one setup, so no additional equipment is needed.
- Small and light. 9.25″ wide x 4.75″ high x 10″ deep. 14 lbs. But rugged enough to test manufactured housing.
- Ground continuity check is defeatable for testing two-wire products.
- Easy equipment connections. Plug your equipment right into the NEMA plug on the front panel. No adapters needed!
- J2 and J3 cords allow connection of pigtail power leads.
- Simple test outcome judgement. Green lights mean pass – red lights mean fail. Failing tests sound a buzzer as well.
- Ready for your UL Inspector out of the box. NIST Traceable Calibration Certificate to MIL-STD45662-A is included. Cal cert is in accordance with UL guidance.
- Operation Instructions are printed on the rear panel for easy reference.
- In-depth testing. Both true Arc Dectection and Leakage Current circuits test the product to find problems.
- RED lights and a buzzer leave no question if a failure has occurred.
- Expandable for TUV/European Agency Testing. Can be connected to our GF-30ac 25A Ground Bond Tester with optional TEST-LINK™.
- Easy shift-by-shift Function Test. Compatible with our Patented function checker, the HTT-1and HTT-1R (With 0.1 ohm Ground check Pass/Fail Setup).
Product General Attributes | |
|---|---|
| Product Weight | 14 LBS |
| Product Height | 4.75 IN |
| Product Length | 10 IN |
| Product Width | 9.25 IN |
| Shipping Weight | 22 LBS |
| Shipping Height | 15 IN |
| Shipping Length | 21 IN |
| Shipping Width | 21 IN |
You must be logged in to post a review.
Manuals/Guides
Manuals
| Weight | 14 lbs |
|---|---|
| Dimensions | 10 × 9.25 × 4.75 in |
