Compliance 00-TMM-PF – MegaPulse Defib Surge P, EN 45502-1 Sec.20 140V External Defib Protection w/IGBTs

Allows repeatable Pulse Programs to be applied to MegaPulse PF models

Users can control voltage, polarity and time between test pulse deliveries

Flexible fields allow detailed data input

Connects via USB to any Windows 32 bit computer

TestMinder MegaPulse PF USB Pulse Automation Software

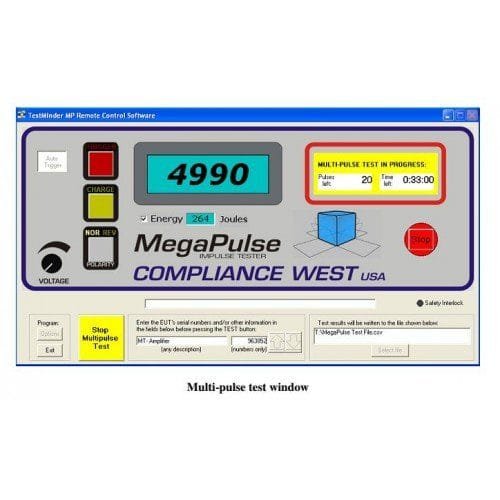

The TestMinder MegaPulse PF remote control software provides an automated method of applying sequential pulses from a MegaPulse tester, and allows the test voltage to be controlled on a test-by-test basis; can set polarity; and reports Joules consumed if the MegaPulse Surge Tester is capable of that measurement. TestMinder works via the USB port of any Windows PC using a 32 bit Operating System. The program displays the front panel of a MegaPulse tester on the computer screen. Screen shots can be seen in the Manual, please see the Manual Section, below. Sequential pulses are input via mouse and keyboard.

The Serial Number field can contain numbers up to 2,000,000,000 and includes an AUTO INCREMENT feature that allows the user to increment serial numbers up or down, making the data collection fast and easy.

Test results and data fields are automatically entered into a Microsoft Excel spreadsheet or an ASCII comma delimited text file.
