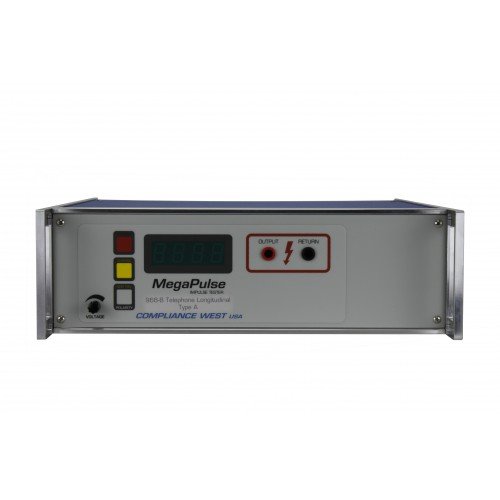

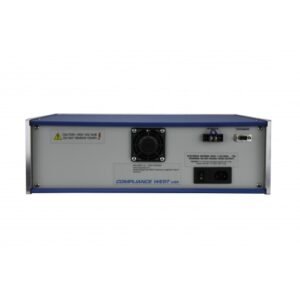

Compliance 968-B Phone Long A – 968-B Telephone Longitudinal Type A 1500V 7.5 Ohm 8x210uSec
29 people are viewing this product right now
Original price was: $7,777.00.$7,574.99Current price is: $7,574.99.
Shipping calculated at checkout.
Estimated delivery:5 days
968-B Telephone Longitudinal Type A 1500V 7.5 Ohm 8x210uSec
- Generates the waveforms required by TIA/EIA-IS-968 (formerly known as FCC Part 68), Section 4.1.2.2, for testing of Unpackaged Registered Terminal Equipment and Registered Protective Circuitry
- Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation
- Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse within the 968 Series, allowing checks and proof of test setups
- Reverse polarity waveforms available by pushing a button on the front panel. No need to change the test setup. Positive polarity indication minimizes errors
- Front panel voltage meter shows residual voltage in charging circuit for safer operation
- 1-year calibration cycle
- All test leads included
Guarantee Safe and Secure Payment Checkout
Description
Compliance 968-B Phone Long A
- Generates the waveforms required by TIA/EIA-IS-968 (formerly known as FCC Part 68), Section 4.1.2.2, for testing of Unpackaged Registered Terminal Equipment and Registered Protective Circuitry
- Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation
- Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse within the 968 Series, allowing checks and proof of test setups
968-B Telephone Longitudinal Type A 1500V 7.5 Ohm 8x210uSec
Designed to generate the surge test described in TIA-968-B, Section 4.1.2.2, Longitudinal Telephone line surge – Type A. Peak voltage is 1500 volts minimum, peak short circuit current is 200A minimum. A switch is provided for reversal of output polarity. TestMinder P USB computer control optional.
The waveform generated is 10×160/10×160, Vp=1500V. To test, the front panel voltage meter is set to 1500V.
Safety Testing / Surge Testing/Impulse / Surge Testers Template | |
|---|---|
| Test Method (Safety) | TIA/EIA/IS-968 |
Product General Attributes | |
| Product Weight | 30 LBS |
| Product Height | 17 IN |
| Product Length | 6 IN |
| Product Width | 17 IN |
| Shipping Weight | 50 LBS |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 30 lbs |
|---|---|
| Dimensions | 6 × 17 × 17 in |
