Description
Compliance CDT-240 8A CE Approve
- Accurate test results within seconds
- Designed with presets to implement the plug discharge test described in IEC 61010, 60065 and 60335
- Meets or exceeds accuracy specifications of CTL DSH 251e
- Easy to configure one button test

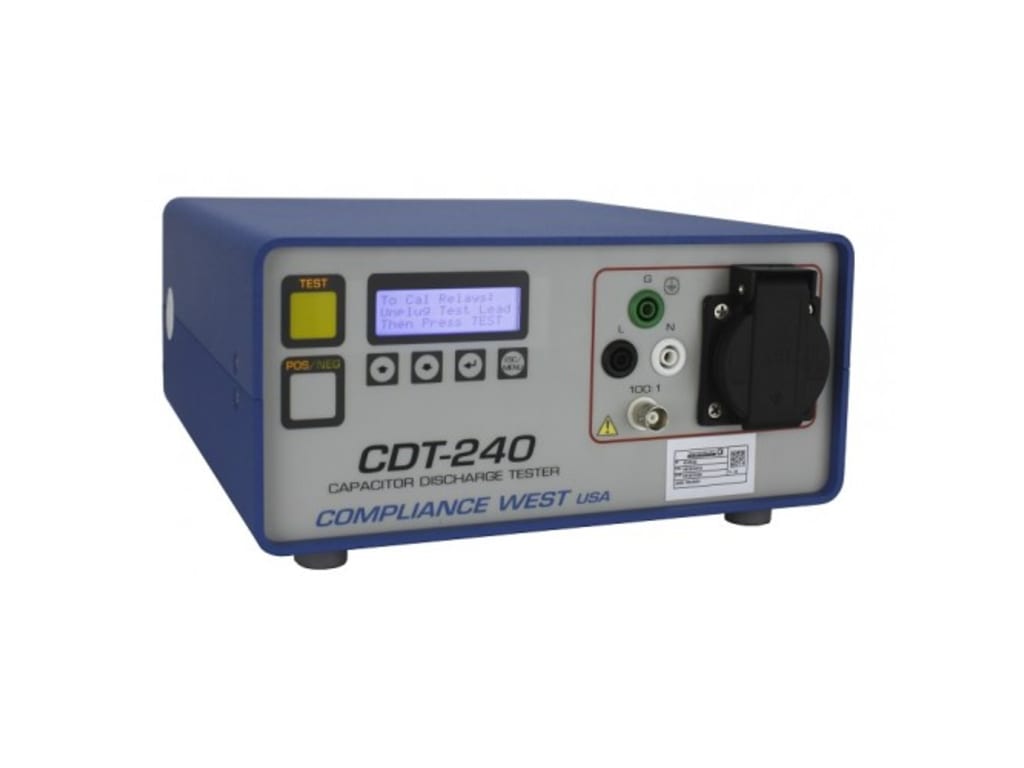

Capacitor Discharge Tester 8A, CE Approved
The CDT-240 is for IEC Testing of residual voltage after plug disconnect. The CDT-240 disconnects the line at the voltage peak and analyzes results to the requirements of various standards, allowing quick results. The CDT-240 includes scope output for viewing decay waveform, presets for EN 61010, EN 60065, EN 60950, EN 60601-1 and EN60335, recommendations for Pluggable Type B equipment, NIST calibration, A2LA calibration available, and 15A option for testing large equipment.
Please see Documents section for Additional Information CDT-240.
LCR Meters / Impedance Measurement Products /Capacitance Testers Template | |
---|---|
Type | Benchtop |
Max Test Frequency | 60 kHz (60000 Hz) |
Accuracy Ranges | EUT disconnect within 5% of supply voltage peak |
Auto Ranging | No |
Data Hold | No |
Product General Attributes | |
Shipping Weight | 7 LBS |
Shipping Height | 7 IN |
Shipping Length | 12 IN |
Shipping Width | 12 IN |
