Description
Compliance CDT-240 V2 8A
- Accurate; in accordance with CTL voltage and time specifications
- Disconnects input test voltage at positive or negative peak, normal, and reversed polarity
- Tests Line-Ground, Line-Neutral, and Neutral-Ground
- Micro-controller Technology, one button test, easy setup, LCD display indicates test results
- Maximum Rated Test Current 8A

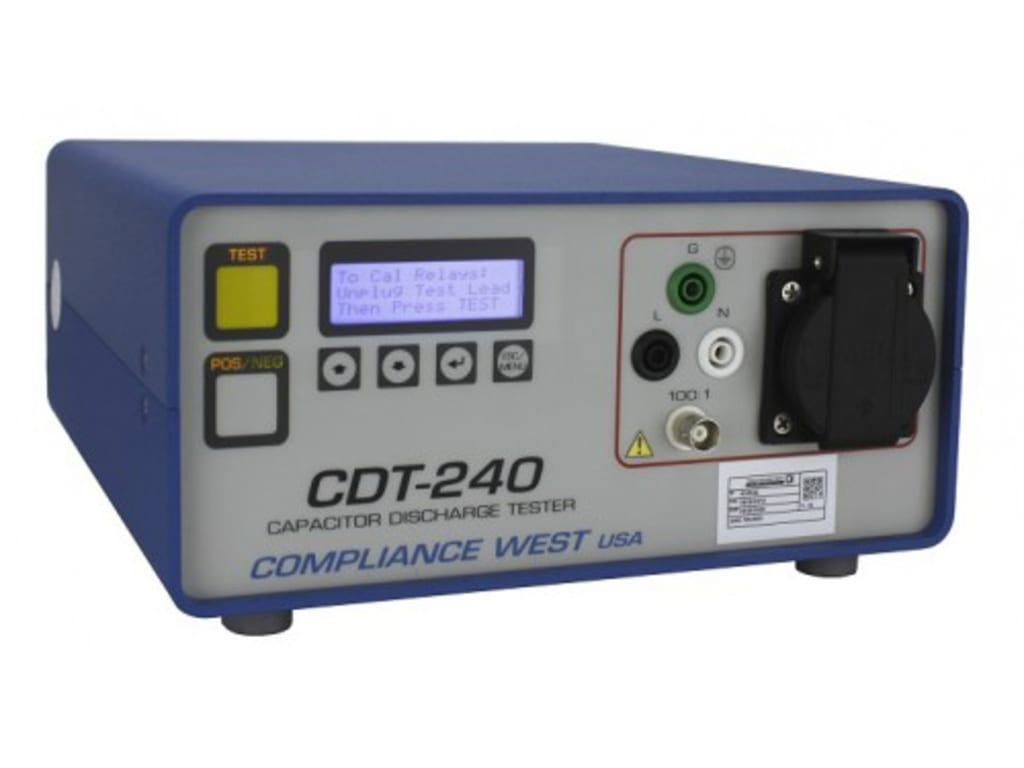

Capacitor Discharge Tester 8A, CE Approved (CBX Built in)
For IEC Testing of residual voltage after plug disconnect. The CDT-240 disconnects the line at the voltage peak and analyzes results to the requirements of various Standards, allowing quick results. Scope output for viewing decay waveform. Presets for EN 61010, EN 60065, EN 60950, EN 60601-1 and EN60335. Recommendations for Pluggable Type B equipment. NIST calibration supplied; A2LA calibration available. 15A option for testing large equipment.
LCR Meters / Impedance Measurement Products /Capacitance Testers Template | |
|---|---|
| Type | Benchtop |
| Max Test Frequency | 60 Hz |
| Auto Ranging | No |
| Data Hold | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 5.8 LBS |
| Product Height | 4.75 IN |
| Product Length | 10 IN |
| Product Width | 9.25 IN |
| Shipping Weight | 6.67 LBS |
| Data Logging | No |
| Shipping Height | 7.00 IN |
| Shipping Length | 12.00 IN |
| Shipping Width | 12.00 IN |
