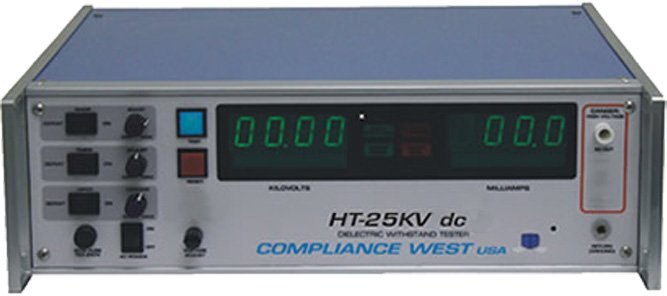

Compliance HT-25kVdc – Hipot Tester, 0-25kVdc @ 5-2mA DC
49 people are viewing this product right now
Original price was: $6,127.00.$5,967.85Current price is: $5,967.85.
Shipping calculated at checkout.
Estimated delivery:4 days
HT-25KVPDC, Hipot Tester, 0-25kVdc 5-2mA dc
- DC output to 25Kv. Delivers up to 5 mA leakage current.
- Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates. Test termination defeatable by switch on rear panel. Provided with arc detection circuit to properly detect hipot failures.
- Rear panel adjustments: leakage limit, ramp time, test time and voltage.
- Automatic voltage ramp-down circuit eliminates residual voltage.
- Designed for product development and laboratory use.
- High voltage test jack output.
- Calibrated to NIST standards.
- 1 year warrantyDC output to 25Kv. Delivers up to 5 mA leakage current.
- Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates. Test termination defeatable by switch on rear panel. Provided with arc detection circuit to properly detect hipot failures.
- Rear panel adjustments: leakage limit, ramp time, test time and voltage.
- Automatic voltage ramp-down circuit eliminates residual voltage.
- Designed for product development and laboratory use.
- High voltage test jack output.
- Calibrated to NIST standards.
- 1 year warranty
Guarantee Safe and Secure Payment Checkout
Description
Compliance HT-25kVdc – Hipot Tester, 0-25kVdc @ 5-2mA DC
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | DC |
| Max DC Test Voltage | 25000 V (25 kV) |
| Min DC Test Voltage | 0 V |
| Max Trip Current DC Test | 5 mA |
| Min Trip Current DC Test | 1 mA |
| Programmable (hipot) | Yes |
| Ground Continuity Current DC | 47 mA (0.047 A) |
| Connection Type | Nema Socket |
| Arc Detection | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
| Interfaces I/O | Analog Output, Analog Input |
| Product Weight | 32 LBS |
| Product Height | 10.00 IN |
| Product Length | 17 IN |
| Product Width | 17 IN |
| Shipping Weight | 36.00 LBS |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | 220V Only, 240V Only |
| Shipping Height | 10.00 IN |
| Shipping Length | 21.00 IN |
| Shipping Width | 21.00 IN |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 32 lbs |
|---|---|
| Dimensions | 17 × 17 × 10 in |
