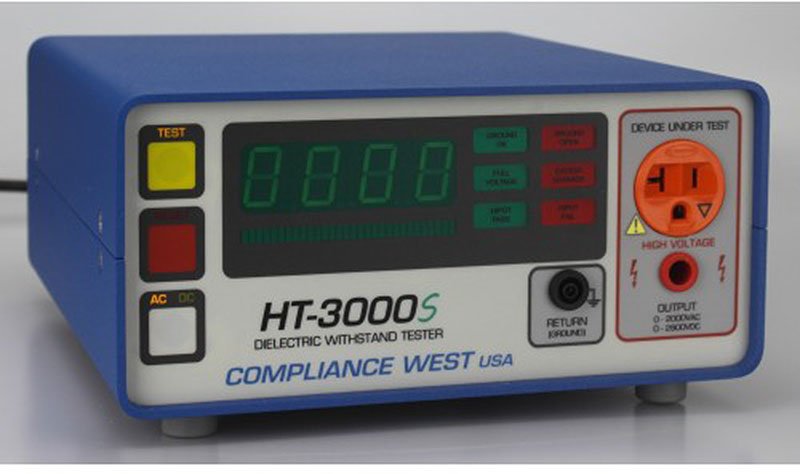

Compliance HT-3000S – Hipot Tester, 0-2000Vac @ 20mA, 0-2800Vdc @ 5mA and Adjustable Ground Continuity, UL Listed
16 people are viewing this product right now
Original price was: $2,079.00.$2,025.00Current price is: $2,025.00.
Shipping calculated at checkout.
Estimated delivery:4 days
Hipot Tester, 0-2000Vac @ 20mA, 0-2800Vdc @ 5mA and Adjustable Ground Continuity, UL Listed!
- AC Output: 0-2000V Leakage current up to 20mA
- DC Output: 0-2800V Leakage Current up to 5 mA
- Logic controlled, one button test, easy to setup, LED’s indicate test progress. Upon failure, buzzer sounds and testing is terminated

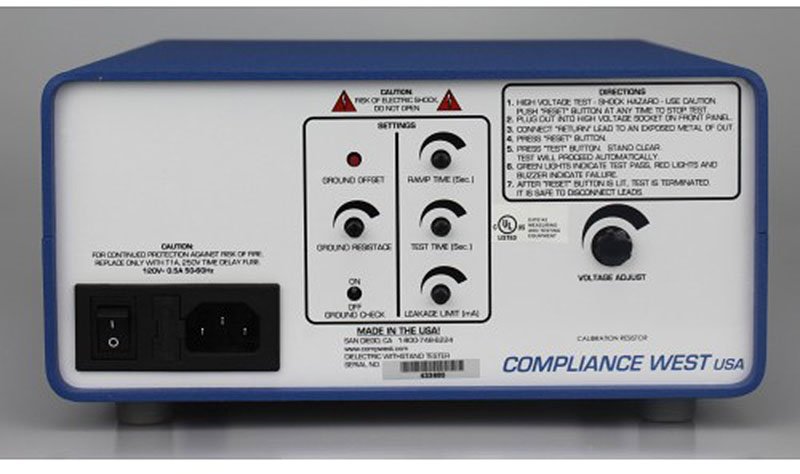

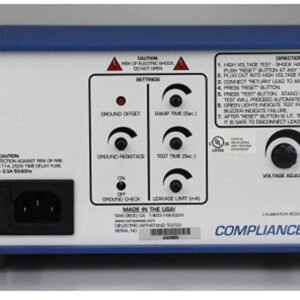

- Output voltage, leakage current limit, voltage ramp-up time, ground continuity limit and test duration are controlled from the rear panel
- Ground continuity test is defeatable for testing of two wire products

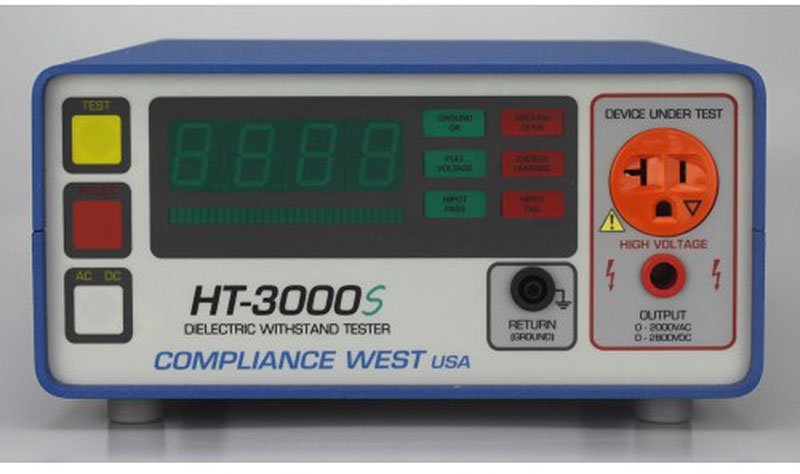

- NEMA 5-15R receptacle provided on front panel for high voltage output
- Operation instructions provided on the rear panel
- UL and c-UL approved
- Performs UL and CSA safety agency requirements for production hipot testing
- Can be connected to the GF-30AC-T ground bond tester for complete TUV and European safety testing, with the TESTLINK option. (TESTLINK voids UL Listing)
- Supports PLC interface for complete automated testing with the RI option
- Small footprint and lightweight
- Economical, durable and compact
- Calibration certificate included
- 6” drop tested
- One year calibration cycle
- One year warranty
Guarantee Safe and Secure Payment Checkout
Description
Compliance HT-3000S
- Economical, durable and compact
- Calibration certificate included
- AC Output: 0-2000V Leakage current up to 20mA
- DC Output: 0-2800V Leakage Current up to 5 mA
Hipot Tester, 0-2000Vac @ 20mA, 0-2800Vdc @ 5mA and Adjustable Ground Continuity, UL Listed!
The newest product of Compliance West Hipot Line Testers, the UL Listed HT-S series hipot now comes with an adjustable ground continuity test in the range of 0.08 – 1.50 Ω, and Auto-offset for test leads up to 1.00 Ω. Performs 0-2000 AC or 0-2800 DC Hipot Test. Neutral/Hot to Ground Leakage current test up to 20 mA AC or 5 mA DC. Easy to use and connect. Ships complete with cables, manual, and a Calibration Certificate. Made in the USA. Calibration and repair services available.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC, DC |
| Max AC Test Voltage | 2000 V (2 kV) |
| Max DC Test Voltage | 2800 V (2.8 kV) |
| Min AC Test Voltage | 0 V |
| Min DC Test Voltage | 0 V |
| Max Trip Current AC Test | 20 mA |
| Min Trip Current AC Test | 1 mA |
| Max Trip Current DC Test | 5 mA |
| Min Trip Current DC Test | 1 mA |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CSA, UL |
| Product Weight | 11 LBS |
| Product Height | 4.75 IN |
| Product Length | 10 IN |
| Product Width | 9.25 IN |
| Shipping Weight | 12 LBS |
| Power Supply Voltage | 120V 50/60 Hz |
| Shipping Height | 7.00 IN |
| Shipping Length | 12.00 IN |
| Shipping Width | 12.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 11 lbs |
|---|---|
| Dimensions | 10 × 9.25 × 4.75 in |
