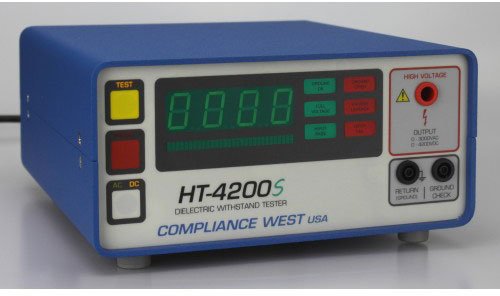

Compliance HT-4200S – Hipot Tester, 0-3000Vac @ 10mA, 0-4200Vdc @ 5mA and Adjustable Ground Continuity, UL Listed
37 people are viewing this product right now
Original price was: $2,112.00.$2,057.14Current price is: $2,057.14.
Shipping calculated at checkout.
Estimated delivery:5 days
Hipot Tester, 0-3000Vac @ 10mA, 0-4200Vdc @ 5mA and Adjustable Ground Continuity, UL Listed
- AC Ouput: 0-3000V Leakage current up to 10mA
DC Ouput: 0-4200V Leakage current up to 5mA - Logic controlled, one button test, easy to setup, LED’s indicate test progress. Upon failure, buzzer sounds and testing is terminated

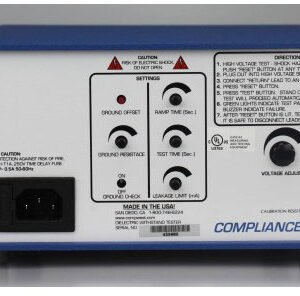

- Output voltage, leakage current limit, voltage ramp-up time, ground continuity limit and test duration are controlled from the rear panel
- Ground continuity test is defeatable for testing of two wire products
- Operation instructions provided on the rear panel
- UL and c-UL approved
- Performs UL and CSA safety agency requirements for production hipot testing
- Can be connected to the GF-30AC-T ground bond tester for complete TUV and European safety testing, with the TESTLINK option. (TESTLINK voids UL Listing)
- Supports PLC interface for complete automated testing with the RI option
- Small footprint and lightweight
- Economical, durable and compact
- Calibration certificate included
- 6” drop tested
- One year calibration cycle
- One year warranty
Guarantee Safe and Secure Payment Checkout
Description
Compliance HT-4200S
- Economical, durable and compact
- Calibration certificate included
- One year calibration cycle
- One year warranty
Hipot Tester, 0-3000Vac @ 10mA, 0-4200Vdc @ 5mA and Adjustable Ground Continuity, UL Listed
The newest product of our Hipot Line Testers, the UL Listed HT-S series hipot now comes with an adjustable ground continuity test in range of 0.08 – 1.50 Ω, and Auto-offset for test leads up to 1.00 Ω. Performs 0-3000 AC or 0-4200 DC Hipot Test. Neutral/Hot to Ground Leakage current test up to 10 mA AC or 5 mA DC. Easy to use and connect. Ships complete with cables, manual, and a Calibration Certificate. Made in the USA. Calibration and repair services available.

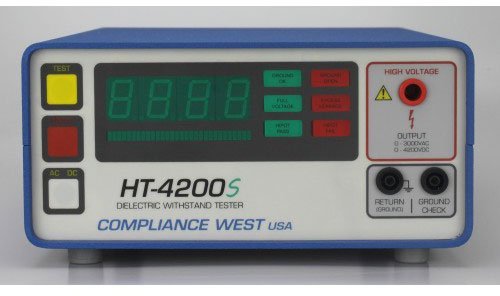

NOTE: This product does not have a NEMA (15A) plug on the front panel. It is equipped with a high voltage lead and alligator clip only. Capable of very high voltage (4200V dc). This product is not intended for regular production line testing; please refer to our HT-2000S, HT-2800S and HT-3000S testers, which are equipped with a NEMA plug for simplified production line testing.
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC, DC |
| Max AC Test Voltage | 3000 V (3 kV) |
| Max DC Test Voltage | 4200 V (4.2 kV) |
| Min AC Test Voltage | 0 V |
| Min DC Test Voltage | 0 V |
| Max Trip Current AC Test | 10 mA |
| Min Trip Current AC Test | 1 mA |
| Max Trip Current DC Test | 5 mA |
| Min Trip Current DC Test | 1 mA |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 11 LBS |
| Product Height | 4.75 IN |
| Product Length | 10 IN |
| Product Width | 9.25 IN |
| Shipping Weight | 12 LBS |
| Power Supply Voltage | 120V 50/60 Hz |
| Shipping Height | 7.00 IN |
| Shipping Length | 12.00 IN |
| Shipping Width | 12.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 11 lbs |
|---|---|
| Dimensions | 10 × 9.25 × 4.75 in |
