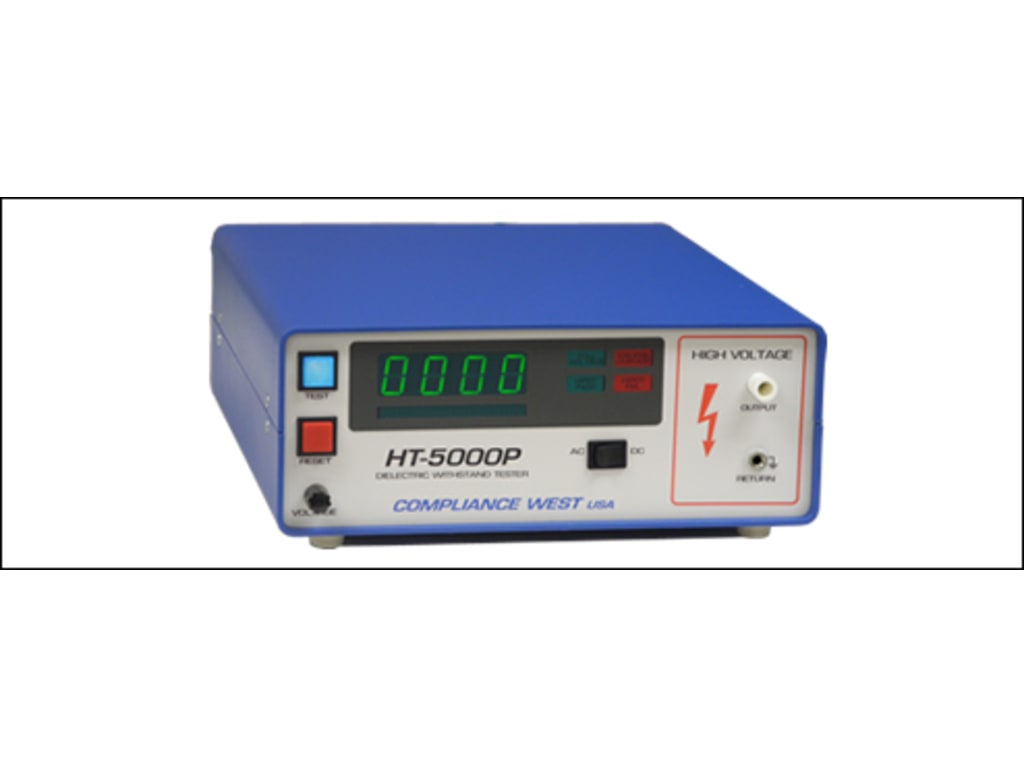

Compliance HT-5000P V2 – Hipot Tester, 0-5000Vac @ 10mA / 0-6000Vdc @ 5mA, Rugged
48 people are viewing this product right now
Original price was: $2,915.00.$2,839.28Current price is: $2,839.28.
Shipping calculated at checkout.
Estimated delivery:3 days
Hipot Tester, 0-5000Vac @ 10mA / 0-6000Vdc @ 5mA Rugged
- High precision leakage current and duration settings
- Allows no load setup of leakage current and test dwell times
- Once entered, leakage current and test dwell times can be referenced on the front panel display at any time
- Leakage currents can be set from 1-10 mA AC or 1-5mA DC in 0.1mA increments
- Dwell times can be set from 1-60 seconds in 1 second increments
- Small and light. 11.25″ wide x 4.75″ high x 11″ deep. 16 lbs
- Leakage current and dielectric breakdown shutdowns can be defeated to allow troubleshooting of problems
- Simple test outcome judgement. Green lights mean pass – red lights mean fail. Failing tests sound a buzzer as well
- NIST Traceable Calibration Certificate to MIL-STD45662-A is included. Cal cert is in accordance with UL guidance
- Operation Instructions are printed on the rear panel for easy reference
- In-depth testing. Both true Arc Dectection and Leakage Current circuits test the product to find problems
- RED lights and a buzzer leave no question if a failure has occurred
Guarantee Safe and Secure Payment Checkout
Description
Compliance HT-5000P V2
- High precision leakage current and duration settings
- Allows no load setup of leakage current and test dwell times
- Once entered, leakage current and test dwell times can be referenced on the front panel display at any time
- Leakage currents can be set from 1-10 mA AC or 1-5mA DC in 0.1mA increments
- Dwell times can be set from 1-60 seconds in 1 second increments
Hipot Tester, 0-5000Vac @ 10mA / 0-6000Vdc @ 5mA, Rugged
A 5000V AC/ 6000VDC hipot tester that’s easy to use and priced right. All the features you need but none of the ones that you pay for but use only once. Select AC or DC output via front panel button. Simple for production line personnel, easy to set up.
When a problem is found, the operator can defeat the leakage current limit and dielectric breakdown shutoffs to allow troubleshooting and analysis of problems with the DUT.
The HT-5000P includes precision leakage current and test time setup and viewing from the LED meter. Adjustment is made with no HV output.
$1975 with an included Calibration Certificate to MIL-STD 45662-A, manual and return lead. Always in stock. Ready to test out of the box.
Option:
- Option HAN: Carrying Handle
- Option RI: PLC Interface Board
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC, DC |
| Max AC Test Voltage | 5000 V (5 kV) |
| Max DC Test Voltage | 6000 V (6 kV) |
| Min AC Test Voltage | 0 V |
| Min DC Test Voltage | 0 V |
| Programmable (hipot) | Yes |
| Connection Type | Probe |
| Arc Detection | Yes |
Product General Attributes | |
| Unique Features | High precision leakage current and duration settings. Allows no load setup of leakage current and test dwell times. Once entered, leakage current and test dwell times can be referenced on the front panel display at any time |
| Warranty | 1 YEARS |
| Warranty Details | Malfunctions which occur within the limits of the warranty will be corrected at no charge. Mail the instrument post paid to the manufacturer. Dated proof of purchase is required for all in-warranty repairs. The manufacturer is also available for calibration and/or repair of instruments that are beyond their warranty period. Contact the manufacturer for a cost quotation. Ship the instrument and your remittance according to the instructions given by the manufacturer. |
| Product Weight | 17.5 LBS |
| Product Height | 5 IN |
| Product Length | 12 IN |
| Product Width | 10 IN |
| Shipping Weight | 20.125 LBS |
| HTS/Schedule B Number | 9030390100 |
| ECCN Number | 3A992 |
| Calibration Included | NIST Calibration |
| Country of Origin | United States |
| Shipping Height | 8.00 IN |
| Shipping Length | 16.00 IN |
| Shipping Width | 16.00 IN |
| Other Information | Depth:: 12″ |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 17.5 lbs |
|---|---|
| Dimensions | 12 × 10 × 5 in |
