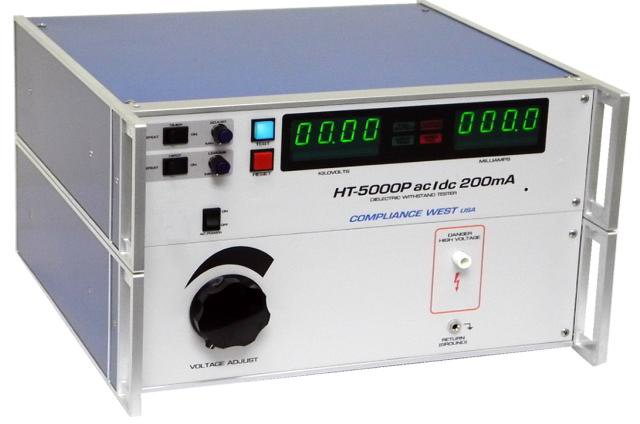

Compliance HT-5000PAC/DC-200mA – Hipot Tester, 0-5000Vac @ 200mA, 0-7000Vdc @ 200mA
19 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Hipot Tester, 0-5000Vac @ 200mA, 0-7000Vdc @ 200mA
- AC output: up to 5,000 V
- DC output: up to 7,000 V
- Microcontroller Technology, one button test, easy to setup, LED’s indicate test progress
- Upon failure, buzzer sounds and testing is terminated
- Output voltage, leakage current limit and test duration are controlled from the front panel
- Arc detection and test timer are defeatable
- Separate arc detection circuitry
- Main shutdown switch on front panel for safety
- Ergonomically designed for safety, speed and efficiency
- Designed for product development and laboratory use
- Cables, manual and calibration certificate included
- One year calibration cycle
- One year warranty
Guarantee Safe and Secure Payment Checkout
Description
Compliance HT-5000PAC/DC-200mA
- Test time, and leakage limit are settable
- Test duration timer is defeatable for specialized testing
- Testing may be terminated or continued when a dielectric breakdown is detected
- Test results are determined quickly, without operator intervention
- Allows custom setups for test time and leakage limit
Hipot Tester, 0-5000Vac @ 200mA, 0-7000Vdc @ 200mA
A 5000V AC/ 6000VDC hipot tester that’s easy to use and priced right. Select AC or DC output via front panel button. Simple for production line personnel, easy to set up. Designed so that operator can defeat the leakage current limit and dielectric breakdown shutoffs to allow troubleshooting and analysis of problems with the DUT. Includes precision leakage current and test time setup and viewing from the LED meter. Adjustment is made with no HV output. Made in the USA. Ships with Calibration Certificate to MIL-STD 45662-A, manual and return lead.
SAFETY | |
| Visual Indicator of Voltage Output | Provided by front panel meter, directly connected to high voltage output. |
| Failure Indicator | Audible, provided by buzzer. Visual, Provided by red LED’s. Test automatically terminated on failure. |
| Leakage Test | Provided, 5 mA factory set pass/fail point, user adjustable. |
| OPTIONS | |
| (XI) Safety Interlock | Two position terminal blocks on rear panel must be shorted for high voltage operation. |
| (VF) Voltage on Failure | If failure as Excess Leakage or Hipot Fail happens, it will terminate the test and the front voltage display will hold the last voltage reading. |
| (AR) Auto Reset on Pass | Resets the units after a few seconds only on passing test conditions. |
| (ZOS) Zero Voltage Start | Voltage adjusts knob must be to minimum position to allow start the test cycle. |
(RI) Relay Isolated Remote Interface | It allows the interface with a PLC or other machine using relay closures. This option allows isolation between the PLC and the Hipot tester. |
Safety Testing / Surge Testing/Hipot Tester Template | |
|---|---|
| Test Type Hipot | AC, DC |
| Max AC Test Voltage | 5000 V (5 kV) |
| Max DC Test Voltage | 7000 V (7 kV) |
| Min AC Test Voltage | 0 V |
| Min DC Test Voltage | 0 V |
| Max Trip Current AC Test | 200 mA |
| Max Trip Current DC Test | 140 mA |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 90 LBS |
| Product Height | 11 IN |
| Product Length | 17 IN |
| Product Width | 17 IN |
| Shipping Weight | 95 LBS |
| Power Supply Voltage | 120V 50/60 Hz |
| Shipping Height | 15.00 IN |
| Shipping Length | 21.00 IN |
| Shipping Width | 21.00 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 90 lbs |
|---|---|
| Dimensions | 17 × 17 × 11 in |
