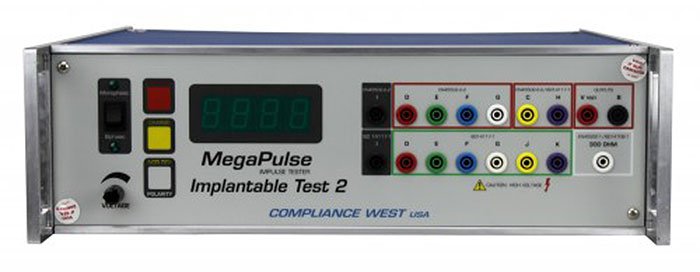

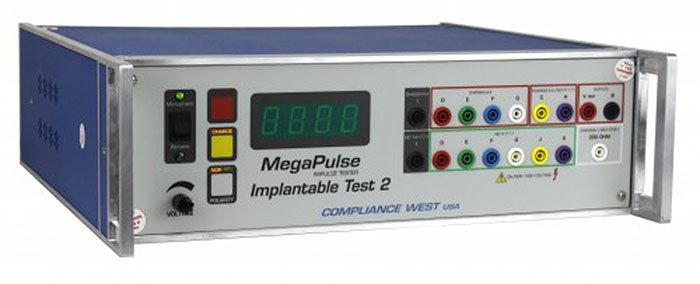

Compliance West Implantable Test 2 – Implantable Surge Tester Truncated Exponential Mono- and Biphasic 140-270V

• Up to 270V test Voltage
• Designed with operator safety in mind: Set up the EUT to the right and behind the tester, and a right-handed operator will find himself standing to the left of the tester, allowing maximum separation.
• Theoretical graphs and actual graphs showing the output of your tester are included with each MegaPulse Implantable Test 2, allowing historical documentation of original machine performance

The MegaPulse Implantable Test 2 outputs the truncated exponential pulse used to defib-proof test implantable medical devices. Resistor networks described in the Standard Tests are included internally. The MegaPulse Implantable Test 2 can recharge and trigger the next pulse in 20 seconds, in accordance with the Standards. Positive and negative polarity are selected with a front panel switch, or via optional computer control. The computer control can conduct the test sequence shown in the Standard.

The tests are described in the following Standards:

• EN 45502-1:2015, clause 20.1, Test 1, Figures 1, 2 and 3; 140V peak.
• ISO 14117:2012, clause 6.2.2, Test 1; Figures 45 and 46; 270V peak.
• ISO14708-1:2014, Part 1; 140V peak.
• EN 45502-2-2:2008, clause 20.2; 270V peak.
• EN 45502-2-1:2003, 140V peak.
• EN 45502-2-2-3:2010, 140V peak.
