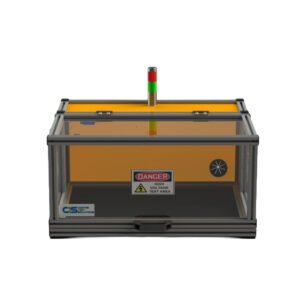

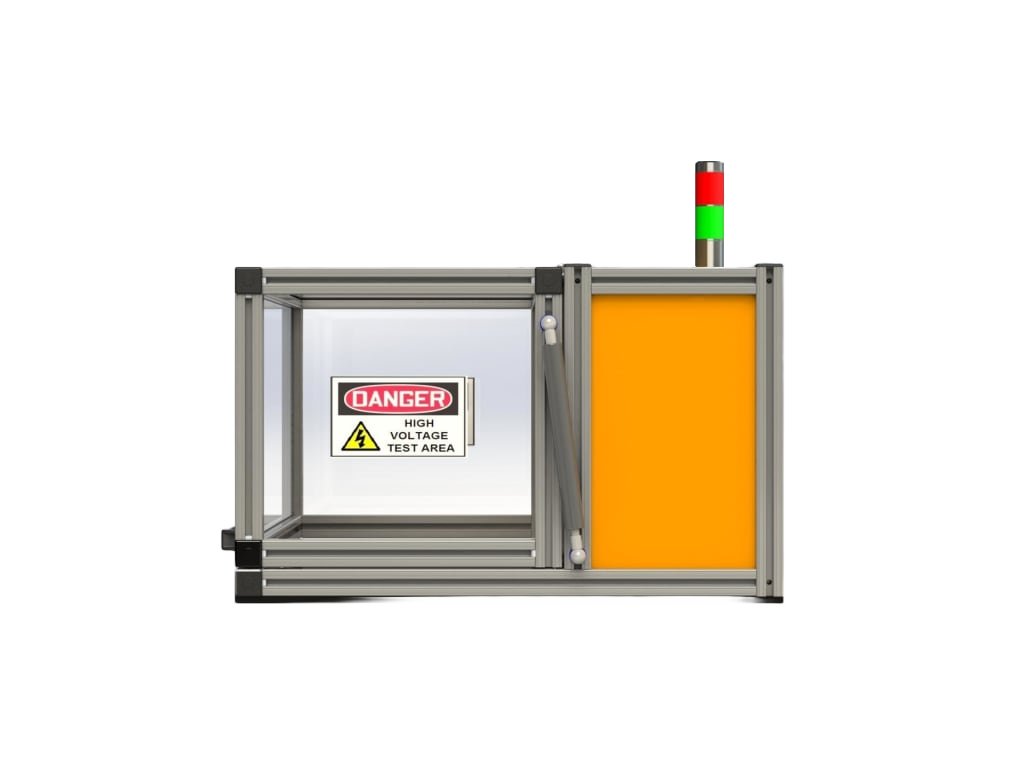

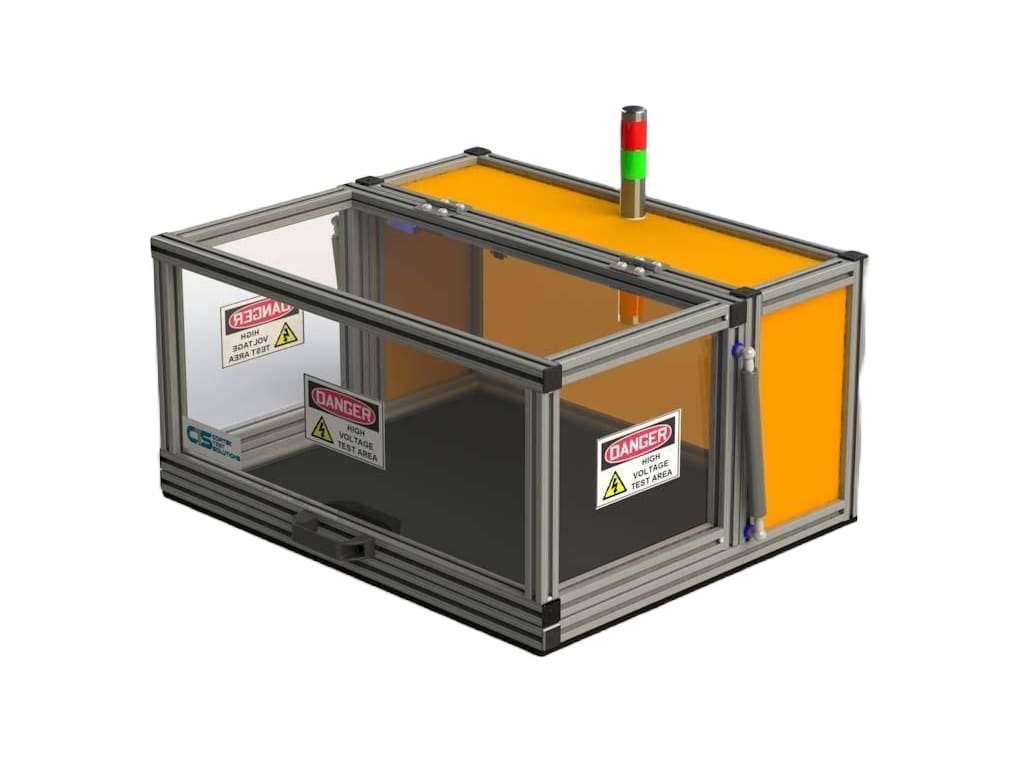

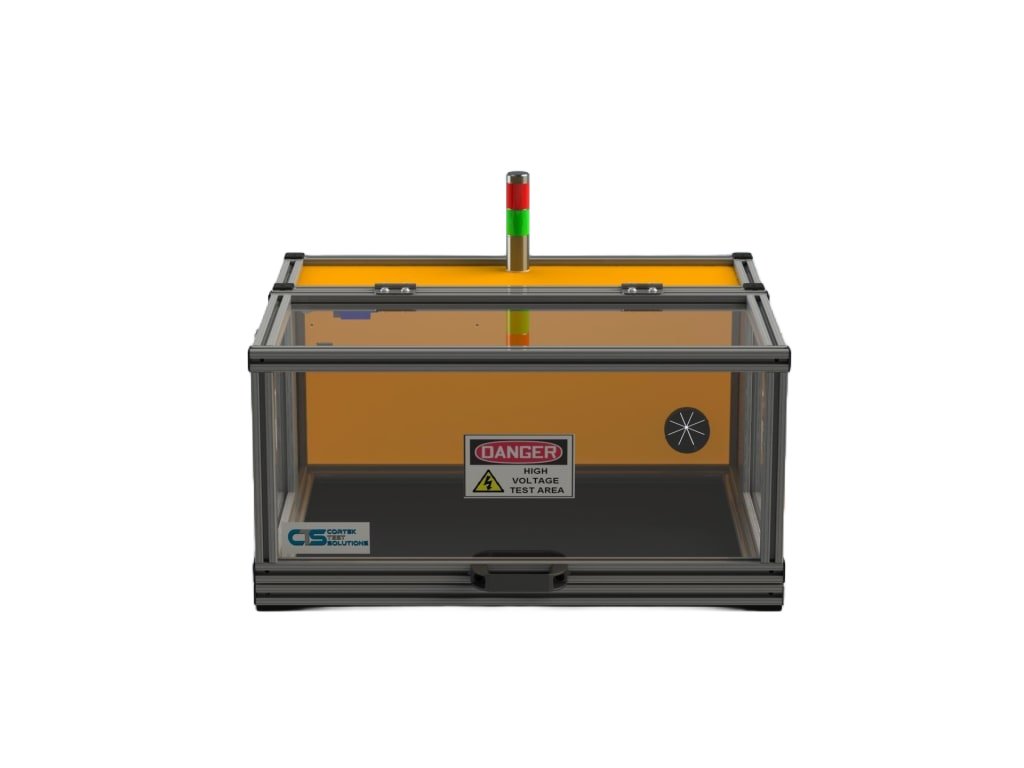

Cortek SE-2420 – Hipot Electrical Safety Enclosure, OD: 24″ W x 20″ D x 12.5″ H

• Outside Dimensions: 24″ wide x 20″ deep x 12.5″ high
• Inside Dimensions: 22″ wide x 18″ deep x 11″ high
• Weight: 36 lbs.
• Tester compatibility: Most HiPot Testers are able to hook up to enclosure

When properly operated, the SE 2420 Hipot Safety Enclosure is designed to negate the potential of electrical shock. This unit is ideal for smaller electronic UUTs such as medical devices and other products. Cortek Test Solutions enclosures were designed to be easily adaptable for both smaller and larger UUTs.

Key Features:

• Aluminum frame construction
• Acrylic Cover
• Magnetic Interlock Safety Switch
• Chassis Ground Wire Connection to be hooked up by the customer
• Yellow Safety Panels
• 20 Position Terminal Block with Removeable Cover
• 9-pin D-Sub Connector
• 2″ Flexible Grommet for pass-through cables

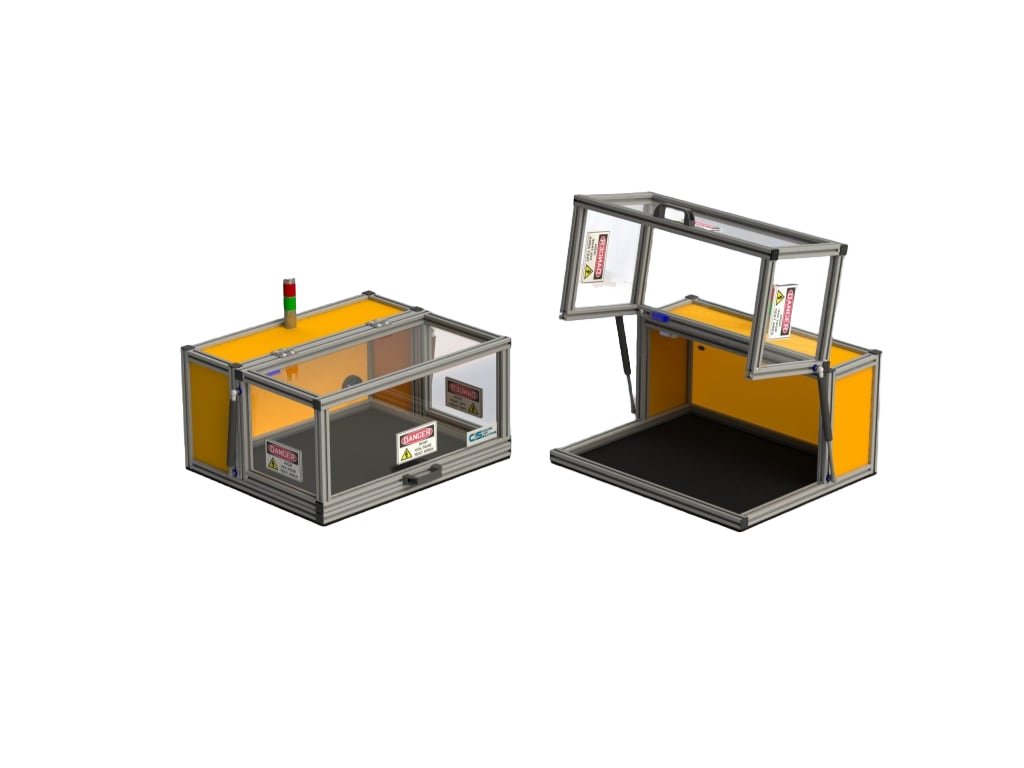

• Large-Wide opening for ease of loading and unloading UUT
• [3] High voltage Test Area Stickers
• Custom Sizes Available. Easily Adaptable to smaller or larger non-standard applications

Options:

• Safety Light Tower – Red/Green, Red/Yellow/Green
• Start Stop Switch Buttons
• E-Stop
• Extra Grommets – 1, 2, 3, 4
• Insulation Mat
• Instrument Shelf – 1,2
