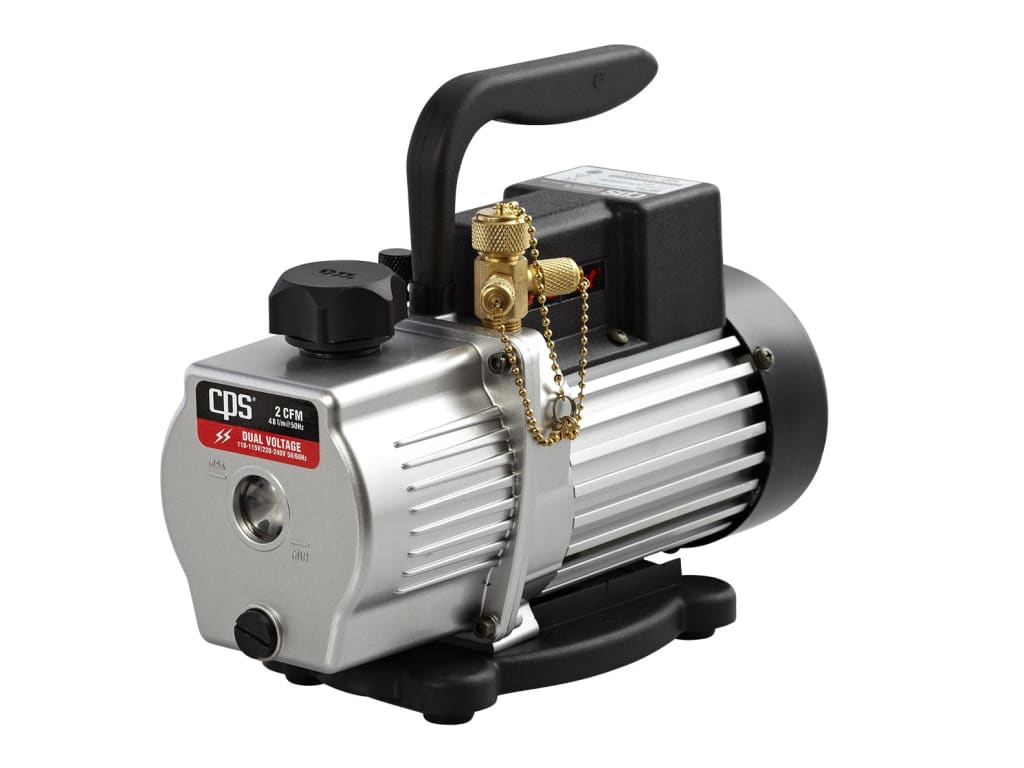

CPS VP2D – Pro-Set Premium Series Vacuum Pump, 2 CFM
34 people are viewing this product right now
Original price was: $280.14.$242.79Current price is: $242.79.
Shipping calculated at checkout.
Estimated delivery:3 days
Premium Series 2 CFM Two-Stage, Dual Voltage (115/230V), w/Gas Ballast Valve
- Dual voltage operation 110-120V / 220V 50 / 60Hz
- Exceptional ultimate vacuum rating as low as 10 microns
- Advanced air cooled motor design for operation in high ambient temperatures
- Proprietary oil mist free exhaust port cap for clean, safe job environment
- Gas ballast valve speeds achievement of deep vacuum
- Multiple port connections for 1 / 4″, 3 / 8″ SAE and 1 / 2″ ACME
- Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port
- Solid rubber base provides extreme shock resistance
- Sure grip handle ergonomically designed for superior comfort and portability
- Proprietary spring activated polymer based exhaust valve enables a 99.999% seal on the discharge port of the vacuum pump mechanism
Guarantee Safe and Secure Payment Checkout
Description
CPS VP2D
- Free Air Displacement: 2 CFM @ 60 Hz, 48 l/m @ 50 Hz
- Power: 110V-120V / 220V 50/60 Hz USA plug
- Ultimate Vacuum: as low as 10 microns
- Intake Fittings: 1/4″ SAE, 3/8″ SAE, and 1/2″ ACME
A solid rubber base provides extreme shock resistance.
Pro-Set Premium Series Vacuum Pump, 2 CFM
The VP2D Pro-Set Premium Series vacuum pump is a 2 CFM, single stage unit with a versatile dual voltage 1/3 HP motor. The unit boasts the same high quality, high value features engineered into all of the Pro-Set vacuum pumps providing performance excellence and years of reliable service.
- For use with class A1 (non-toxic, non-flammable), class A2 (non-toxic, low-flammable) refrigerants
- Air cooled, thermally protected motors encased in a durable aluminum housing
- Oil filled rotary vacuum pump cartridge construction
- Large oil-fill port with proprietary, mist free exhaust cap
- Easily accessible oil drain port
- Large oil sight glass
- Multiple SAE and ACME intake fittings with check valve
- On/Off power switch
- Rubber lined handle, skid resistant rubber feet
- Gas ballast valve
HVAC Equipment and Instruments/HVAC Vacuum Pumps | |
|---|---|
| Number of Stages (Pumps) | 2 |
| Vacuum (Vacuum Pumps) | 2 CFM |
| Line Power (Pumps) | 110/220 VAC |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 17.7 LBS |
| Product Height | 9.6 IN |
| Product Length | 12.2 IN |
| Product Width | 5 IN |
| Shipping Weight | 18.00 LBS |
| Country of Origin | United States |
You must be logged in to post a review.
| Weight | 17.7 lbs |
|---|---|
| Dimensions | 12.2 × 5 × 9.6 in |
