DeFelsko PosiTectorGLS – Portable Gloss Meter

• Larger 2.8″ impact resistant color touchscreen
• Select from 3 probe models: GLS 60, GLS 20/60, and GLS 20/60/85
• Automatic Diagnosis and Auto Calibration performed upon power-
• Fast measurement speeds of 60+ readings per minute
• USB, WiFi, and Bluetooth connectivity

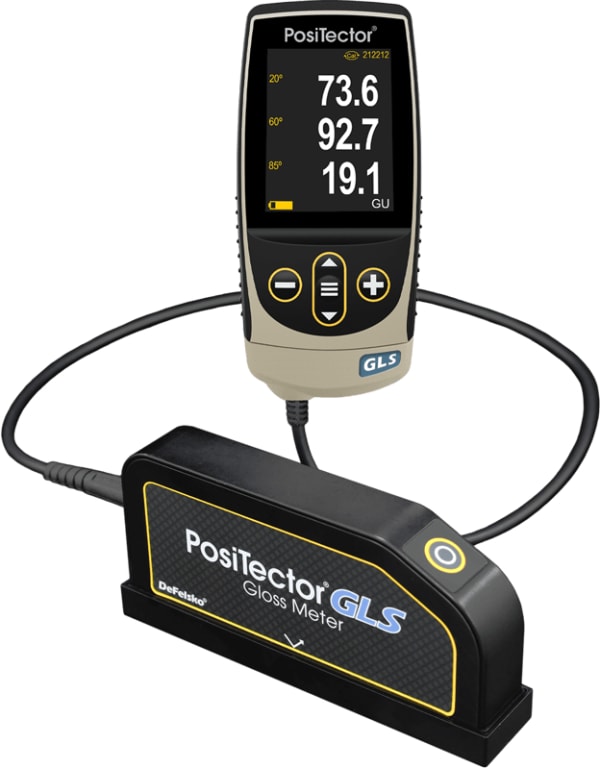

The PosiTector GLS Gloss Meter (GLS) is a hand-held electronic instrument that measures the specular reflectance and gloss of a surface. It consists of a body (Standard or Advanced) and probe.

Standard models include all of the features listed above as well as storage of 1,000 readings per probe. The advanced model on the other hand includes storage of 250,000 readings in up to 1,000 batches and sub-batches. The advanced model also features the following:

• Differential Mode automatically calculates the difference between the current reading and a stored reference value
• 2 Powerful Scan Modes for quantifying large surfaces
• Normal – take continuous readings
• Statistics – take continuous readings and record average, standard deviation, min/max, and number of readings while scanning
• Live graphing of measurement data
• Touchscreen keyboard for quickly renaming batches, adding notes, and more
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

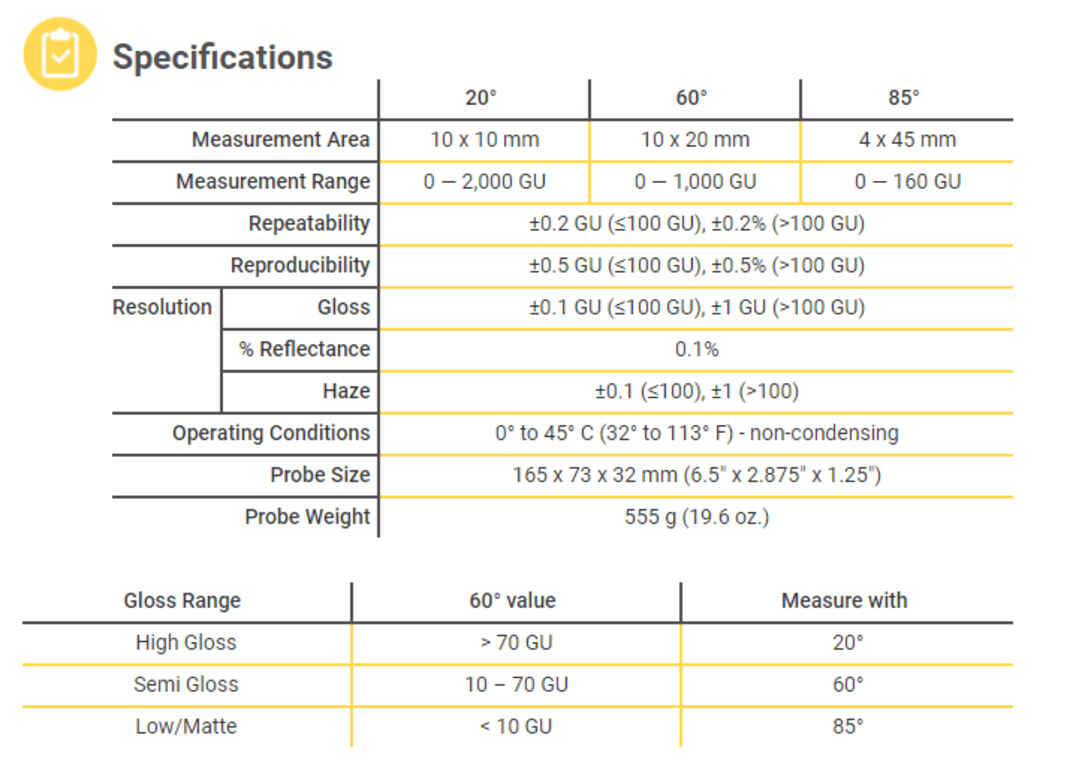

With three probes available there are three measurement angles to suit any application.

GLS 60 degrees – Suitable for most gloss applications, preferred angle for semi-gloss

GLS 20, 60 degrees – Suitable for high- to semi- gloss applications / Calculates Haze (Haze Index)

GLS 20, 60, 85 degrees – Suitable for high-, semi-, and matte- gloss applications / Calculates Haze (Haze Index)

Simple

• Fast measurement speed—60+ readings per minute
• Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
• On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings
• Durable
• All-metal probe construction for long term stability
• Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
• Ergonomic design with durable rubberized grip
• Rugged, indoor/outdoor instrument—ideal for field or shop use
• Shock-absorbing protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included
• Automatic Diagnosis and Auto Calibration upon power-on using the protective base plate with integrated calibration standard (tile)
• Store multiple calibration standards (tiles) for quick calibration adjustment
• Conforms to national and international standards including ISO and ASTM

Versatile

• PosiTector body accepts all PosiTector probes easily converting to a coating thickness gage, dew point meter, soluble surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage.
• Selectable units for each geometry—Gloss and % Reflectance
• Auto rotating display with Flip Lock
• Selectable display languages

Powerful

• Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring.
• Screen Capture—save 100 screen images for record keeping and review.
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits—can be used as Pass/Fail for quick inspection.
• Instant-on feature quickly powers up the gage if recently powered down.
• Up to 30% longer battery life
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• View pre-formatted reports and .csv data with PosiSoft USB Drive—no software installation required.
• Every stored measurement is date and time stamped.
• Includes PosiSoft Software for viewing and reporting data.
