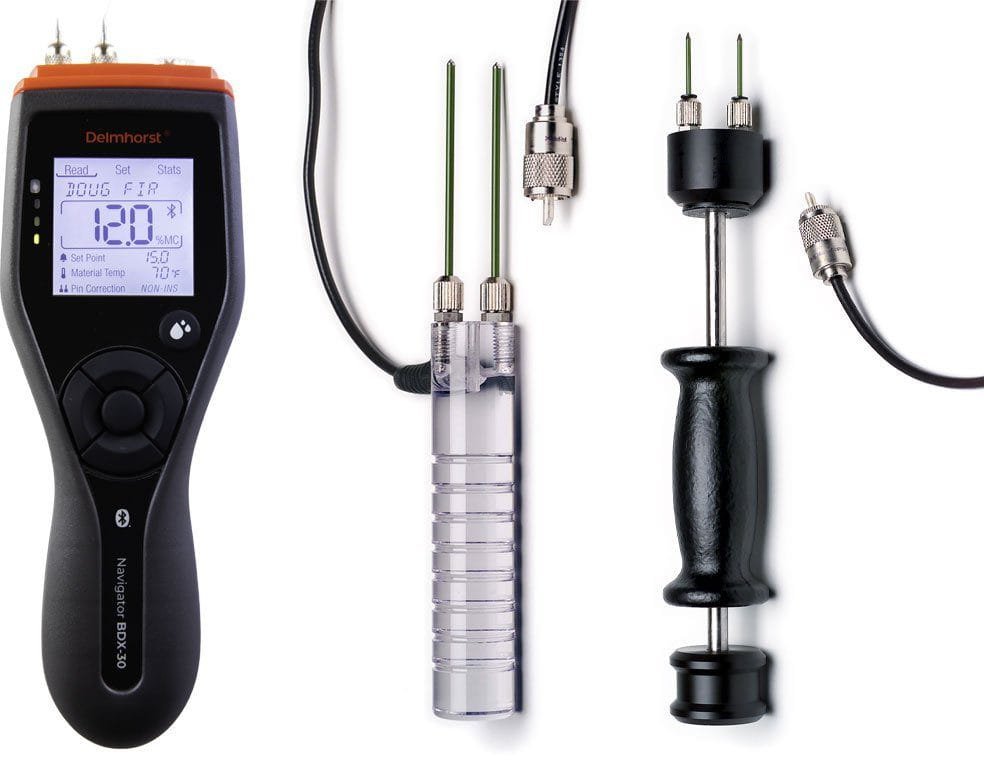

Delmhorst BDX-30 CONTRACTOR – Contractor/EIFS Package

• MC Range: 6%-60% Wood (Douglas Fir) ,0.1% -6% Drywall, 0-100 Reference scale
• Large display with auto backlight
• On-screen readings statistics: High, Low, Average, Standard Deviation
• Wood temperature correction (°F / °C)
• Pins/electrode correction (insulated or non-insulated)

The powerful BDX-30 brings all the design elements and functionality of the BDX-20, and also introduces Bluetooth® integration to the Navigator family with the Delmhorst EDGE™ app! This exciting addition to the meter enhances your ability to ensure precise readings from anywhere and export data including geotags and timestamps. The BDX-30 brings today’s technology from the field to the office, making the most challenging project easier, more efficient, and most accurate.

26-ES Hammer Electrode

The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications:

• Flooring installers: Penetrate through the flooring to plywood sub-floor, or concrete.
• Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
• Furniture manufacturers and craftsmen: Easily check high-density hardwood that short pins are unable to penetrate.

Also available as the 26-ED, which includes a gauge to measure pin penetration depth.

21-E Electrode

The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4″.

Great for use on roofs, insulation, or EIFS.

21-E is also available as the 21-E/001 with 6″ penetration, or as the 21-ET with a tapped handle for hard-to-reach areas.

608-001

The 608 insulated contact pins measure 7″ overall, and penetrate 6″. Standard on 21-E and 18-ES electrodes, and can be used on roofing, insulation, timber, poles, and EIFS.
