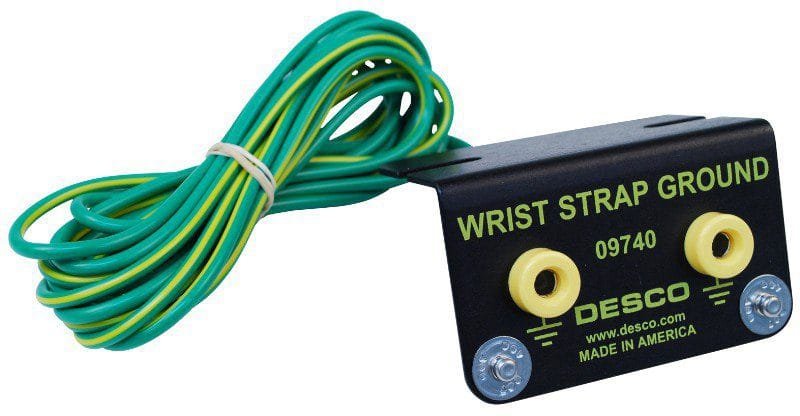

Desco 09740 – Bench Mount Ground for Two Wrist Straps, 4 mm Stud, 10′ Ground Wire

• Bench mount ground for two wrist straps
• Provides two grounding points for wrist straps or carts
• Allows easy attachment to electrical ground

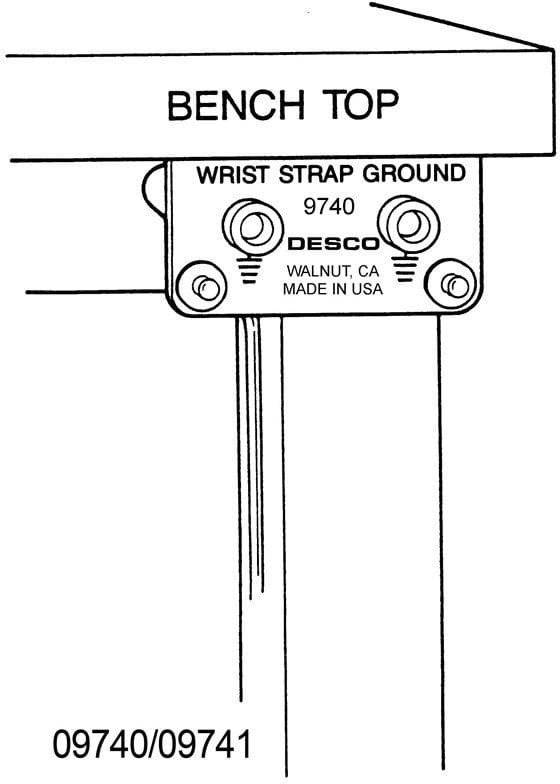

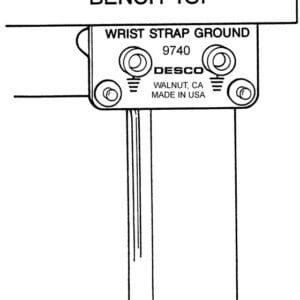

• Mounts under the front edge of the workstation to save workspace
• Made in the USA

Per ANSI/ESD S20.20, all conductors, including personnel, must be electrically connected and attached to a known ground. EOS/ESD S6.1 recommends hard ground, without resistor, of worksurface or floor mats. Per ANSI/ESD S20.20, ground fault circuit interrupters (GFCI) should be considered to provide personnel protection.

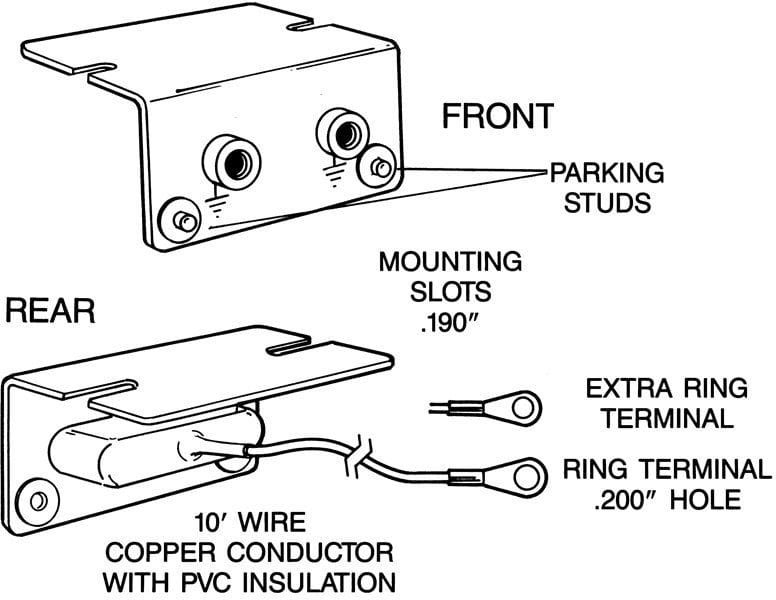

The 09740 wrist strap bench ground is a wrist strap ground connector and consists of a mounting bracket with two standard banana jacks installed and soldered to a ten-foot ground wire terminated with a ring terminal with a 0.200″ hole.
