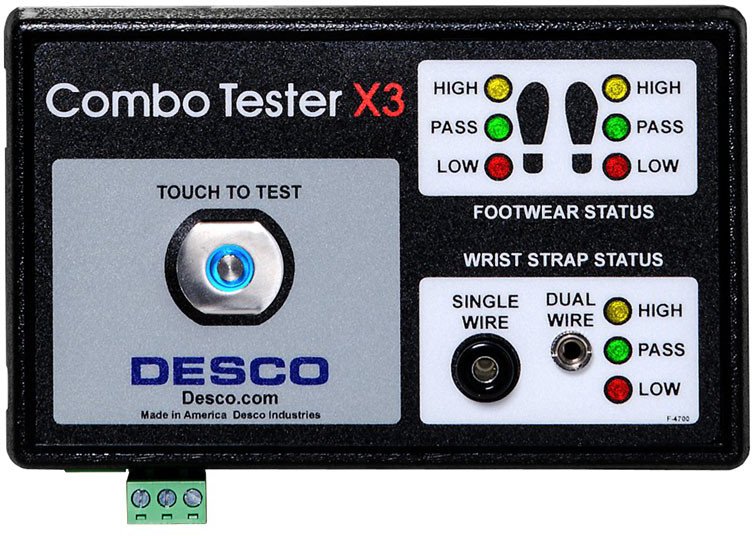

Desco 19275 – Combo Tester X3, Tester Only (Does not Include Stand or Dual Foot Plate)

• This model does not include a stand or dual foot plate
• Determines if the operator’s personal grounding devices are functioning properly
• Can verify both single-wire and dual-wire wrist straps
• Relay for use with automatic door or other locking system
• NIST calibrated with certificate included

The Desco Combo Tester X3 verifies the functionality of personnel grounding devices – wrist straps (1), foot grounders, ESD shoes, smocks (2)

• The Combo Tester X3 can verify single-wire and dual-wire wrist straps
• The Combo Tester X3 will also test a Groundable Static Control Garment System. The Groundable Static Control Garment System must have an RTG of < 3.5 x 107 ohms to meet the required limit of ANSI/ESD S20.20 tested per ANSI/ESD STM2.1 and ESD TR53

Three independent tests are performed simultaneously on the wrist strap and each foot. Green lights indicate a pass condition. Red and yellow lights plus an audible alarm indicate when the wrist strap and/or footwear (left or right) have failed. DIP switches may be accessed for test limit preferences. Access control to an ESD Protected Area can be further enforced by using the relay terminal on the Combo Tester X3 and connecting it to an electronic door lock or turnstile to grant access only to those who have passed their personal grounding device tests. The Combo Tester X3 is calibrated to NIST standards and includes a certificate.

Desco Combo Tester X3 Technology

• The solid-state touch test switch maintains test accuracy and extends the lifetime of the tester
• The 30 volt test signal increases test reliability
• Pairs with the EMIT 50755 ESD Glove Test Fixture to test operators that wear ESD gloves or finger cots per Compliance Verification required by ESD TR53
