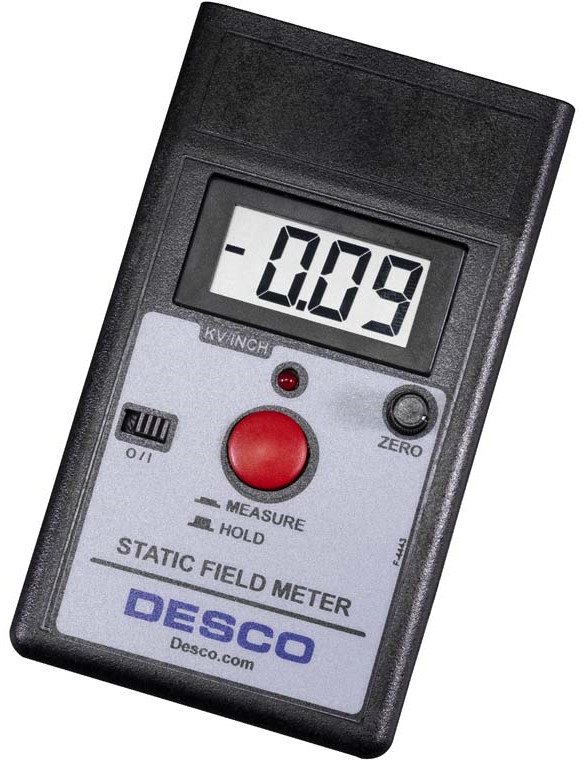

Desco 19442 – Digital Static Field Meter

• Measurement range: 0 to +/-19.99 kV/inch
• Measurement accuracy: Better than +/-5% of reading, +/-2 counts
• Voltage display: 3-1/2 digit LED display
• Sampling rate: 3 readings per second
• Power: (1) 9V Alkaline battery

The Desco 19442 Digital Static Field Meter indicates surface voltage and polarity on objects. The meter has a measurement range of 0 to ±19.99 kV at a distance of 1 inch and a measurement accuracy of +/-5%. It utilizes a chopper-stabilized sensor for use in both normal and ionized environments. The Desco 19442 Digital Static Field Meter’s enclosure is dissipative and features a 7mm snap and ground cord for bonding to equipment ground. A rotary zero knob sets the zero-reference point with finely tuned precision, and a Hold button allows the user to “freeze” a displayed measurement for evaluation. A LED range indicator assists with placing the meter at the correct distance from the object being measured.

Desco 19442 Digital Static Field Meter Features:

• Electrostatic Field Meter
• Measures static charge and polarity on objects up to +/-19.99 kV at 1 inch
• Chopper-Stabilized Sensor
• Yields accurate measurements in both normal and ionized environments
• Dissipative Enclosure with 7mm Ground Snap
• Grounds meter when held by a grounded operator or using the included ground cord
• Rotary Zero Knob
• Sets the zero-reference point with finely tuned precision
• LED Range Indicator
• Assists with placing meter at the correct distance from the object being measured
• Hold Button
• Allows retention of measurements for easy reading and extends battery life
• NIST Calibrated Certificate Included
