Desco 19656 – Dual Operator Monitor (Universal Power Adapter, No Power Cord)

• Dual operator workstation continuous monitor of (2) operators, (1) ESD worksurface
• Universal power adapter, no power cord
• Wave distortion technology for stable continuous monitoring of single-wire wrist straps
• Audible and visual alarms; Large visual status display; Park delay timer; Mat monitor switch
• 1.2V operator test voltage to reduce risk of EOS for handling sensitive components

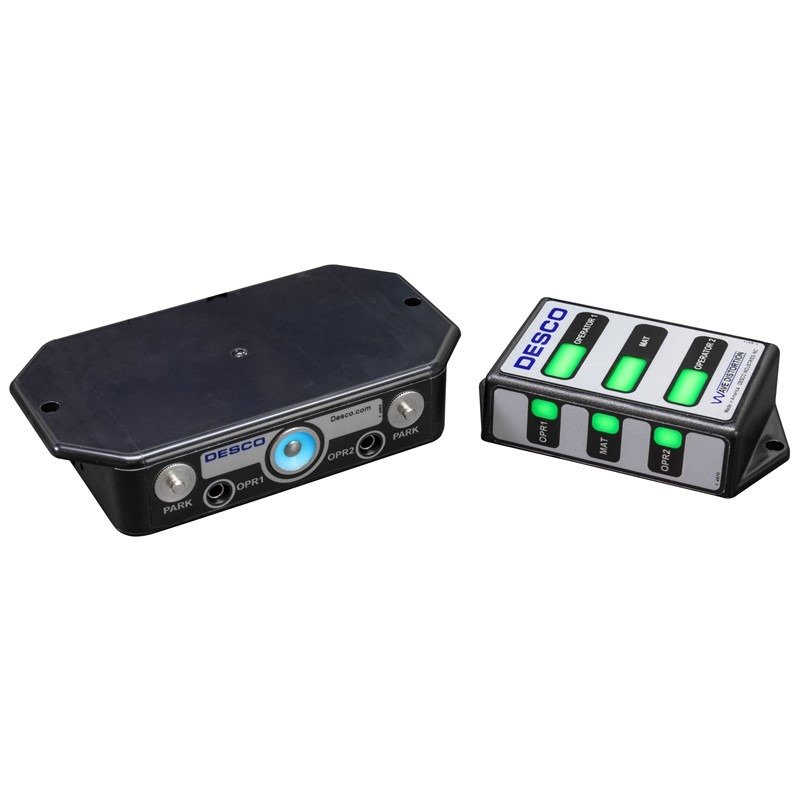

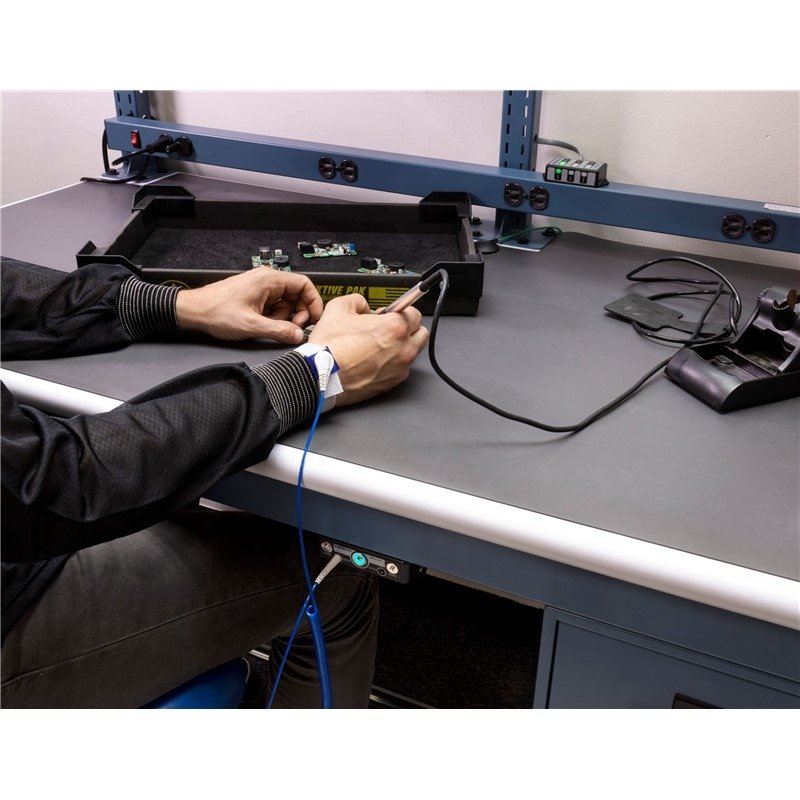

The Desco 19656 Dual Operator Continuous Monitor is a workstation continuous monitor. It continuously monitors the path-to-ground integrity of two operators and one ESD worksurface. Mounting tabs make it suitable to install in workbench or equipment settings, and the Visual Status Display can be placed to increase alarm visibility. It may be connected to the 19323 Power Relay accessory to control power to electronic devices at the workbench dependent on the continuous monitor’s status.

The Desco 19656 Dual Operator Continuous Monitor is designed with Wave Distortion Technology to provide stable continuous monitoring of the path-to-ground and the presence of 1 megohm resistance of an operator’s wrist strap. Audio and visual alarms activate (in less than 500 milliseconds) when the operator unintentionally disconnects from the monitor, or the wrist strap connection points are intermittent. The Dual Operator Continuous Monitor also monitors for a worksurface path-to-ground of fewer than 10 megohms and the integrity of the electrical ground used by the monitor All Dual Operator Continuous Monitors are calibrated to NIST standards and include a certificate.

•  Dual workstation continuous monitor – Continuously monitors the path-to-ground integrity of two operators and one ESD worksurface
•  Wave distortion technology – Provides stable continuous monitoring (versus pulsed or intermittent) of the wrist strap’s path-to-ground and the presence of its 1 megohm safety resistor
•  Operator Alarm – Alarms when the operator unintentionally disconnects from the monitor or the connection between the banana plug, and the monitor’s jack is intermittent
•  Park delay timer – Indicates the 8-second delay to disconnect and park the operator’s wrist cord

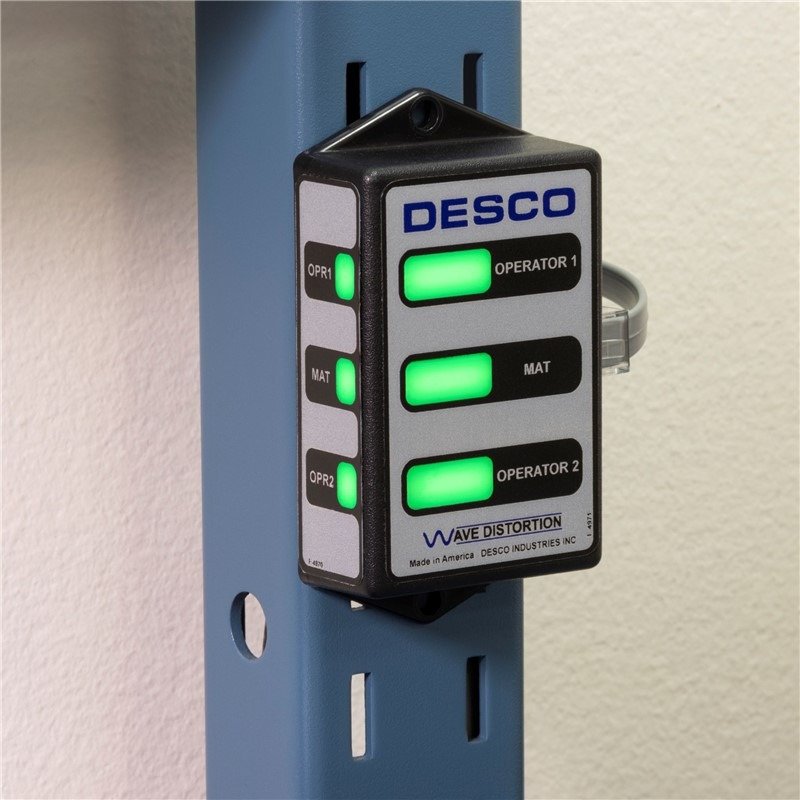

•  Visual status display – Displays the operators’ and worksurface status: illuminates red when intermittent or failed connection occurs
•  Mat monitor switch – Disables the worksurface monitor circuit when used in areas where there is no ESD worksurface
•  Audible alarm adjustment – Sets the audible alarm volume from loud to louder

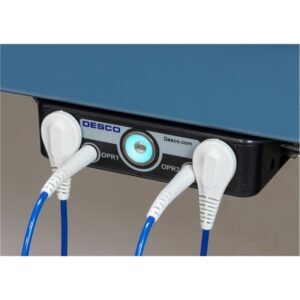

•  Park snap – Allows the operator to disconnect (and park) a wrist strap when leaving the workstation without creating a false alarm
•  1.2V operator test voltage – Reduces the risk of electrical overstress (EOS) for the handling of sensitive components
•  Less than 50 millisecond alarm response time – Identifies failures and intermittencies
•  100-240V AC safety certified power adapter with IEC C14 style inlet
•  NIST calibrated with certificate
•  Made in the USA
