Desco 19790 – ESD Survey Kit (North American Version, 120V)

• Used for measuring, verifying, and qualifying products for use in ESD protected areas
• In accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and other documents
• NIST calibrated with certificate included
• Includes multiple testing products
• Made in the USA

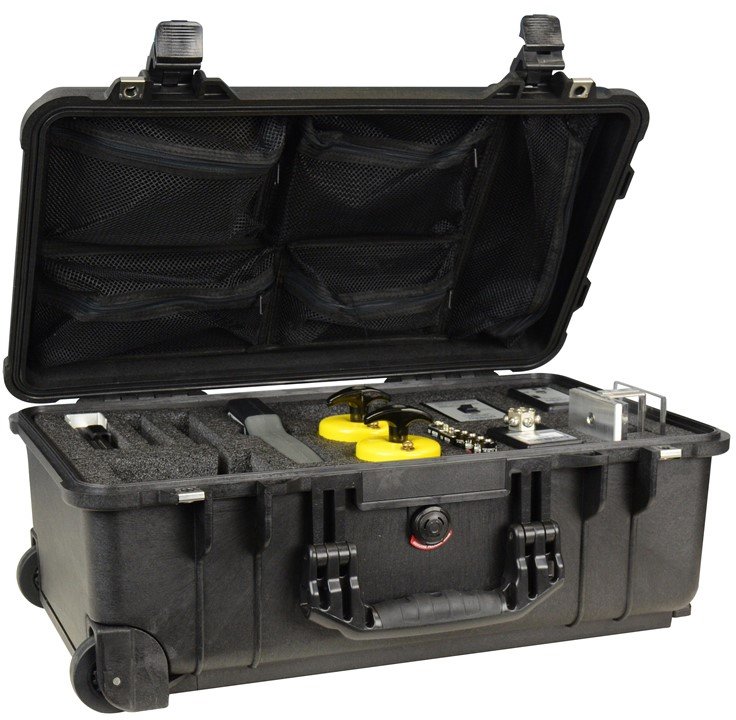

The Desco 19790 ESD Survey Kit is used for measuring, verifying, and qualifying products for use in the ESD Protected Area. The kit includes the following instruments:

• Digital Surface Resistance Meter to measure resistance point-to-point (Rtt) or surface to ground (Rtg) in accordance with ESD Association Standard ANSI/ESD S4.1
• Handheld Electrode to measure Floor Materials and Footwear – Resistance Measurement in Combination with a Person (ANSI/ESD STM97.1)
• Ground Hub Monitor to monitor the path-to-ground integrity of the electrical outlet and provide
• numerous ground-able points
• Low Resistance Tester to measure the resistance of grounding paths of banana jacks and other equipment
• Ionization Test Kit to measure static fields and to measure offset voltage (balance) and charge decay of ionization equipment
• Training Paddle Set to demonstrate the creation of static charges and the functionality of ESD control products

Not included in this package:

• Kasuga KSD-4000 Body Potential Meter
• Measures the effectiveness of personnel grounding systems.
• 50005 Concentric Ring Probe
• Measures surface resistance per ANSI/ESD STM11.11 and volume resistance per ANSI/ESD STM11.12 of planar material
