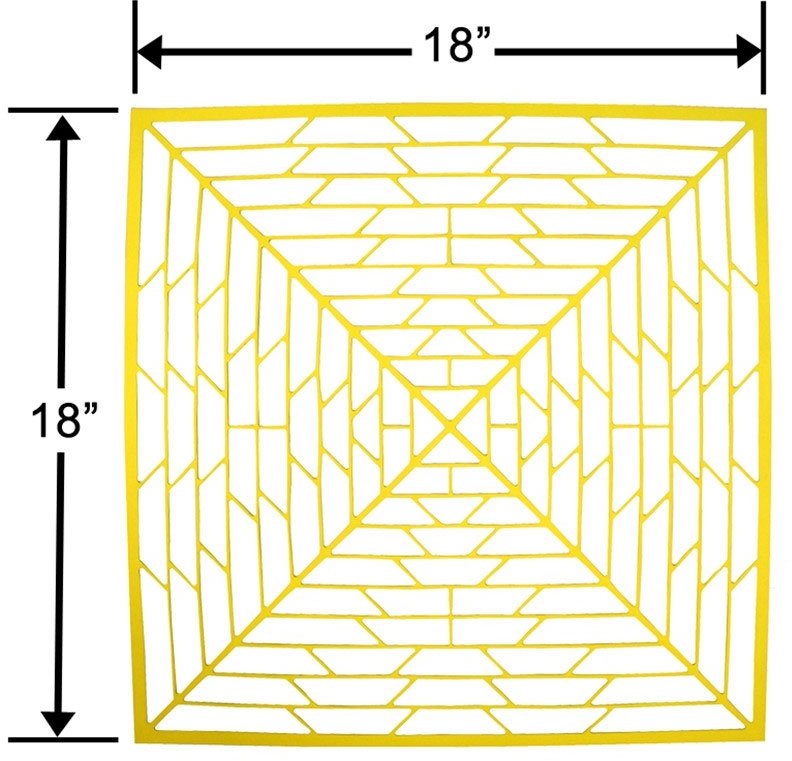

Desco 41403 – PCB Wash Tray Line, 18″ x 18″

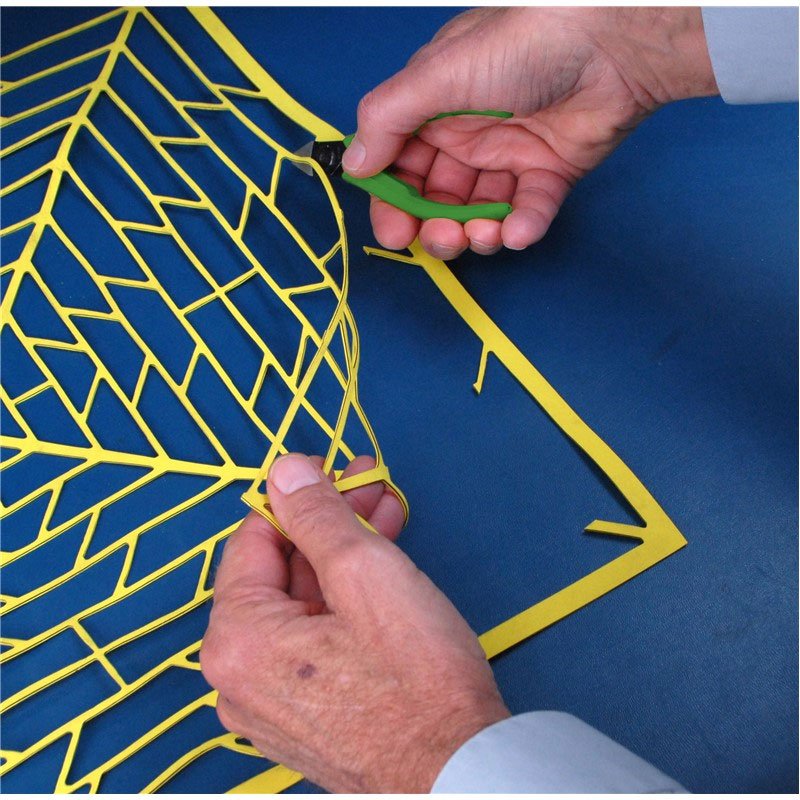

• Trim-to-fit dissipative 18in wash basket liner used in PCB washing applications
• RTT: 1 x 10E6 < 1 x 10E9 ohms
• Meets ANSI/ESD S20.20 worksurface required limit
• Meets ANSI/ESD S4.1 recommendation for contact with ESD susceptible items
• High strength nitrile rubber compound

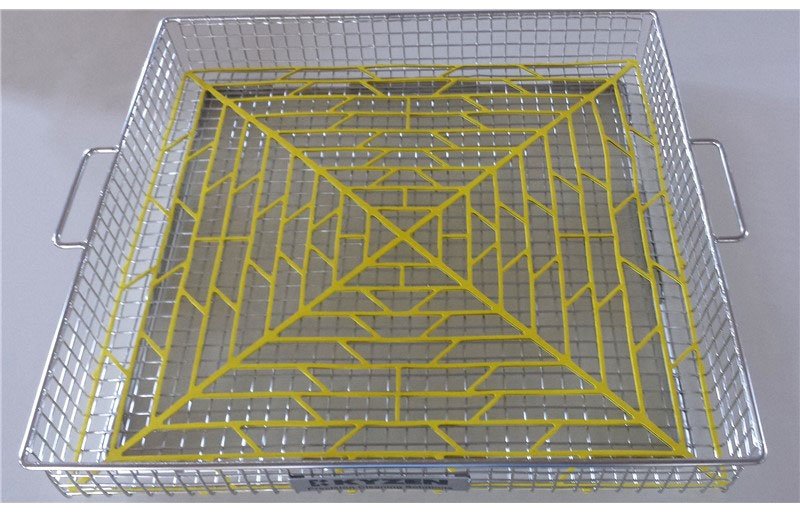

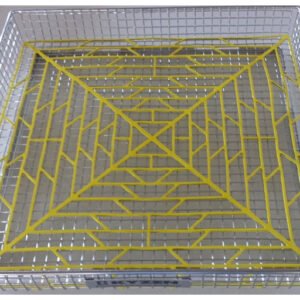

From Desco, the 41403 is a static dissipative, trim-to-fit 18in wash basket liner. It is for use in PCB washing applications. The PCB wash tray liner has a point to point resistance of (Rtt) 1 x 10E6 < 1 x 10E9 ohms. The design of the liner meets ANSI/ESD S20.20 worksurface required limit and the recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The high strength nitrile rubber compound withstands abrasions, stretching, and tearing. The liner may also be used with soldering flux and other chemicals.

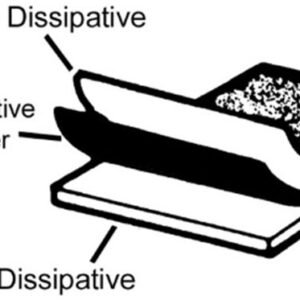

• Yellow Dissipative
• Black Conductive Middle Layer
• Yellow Dissipative
