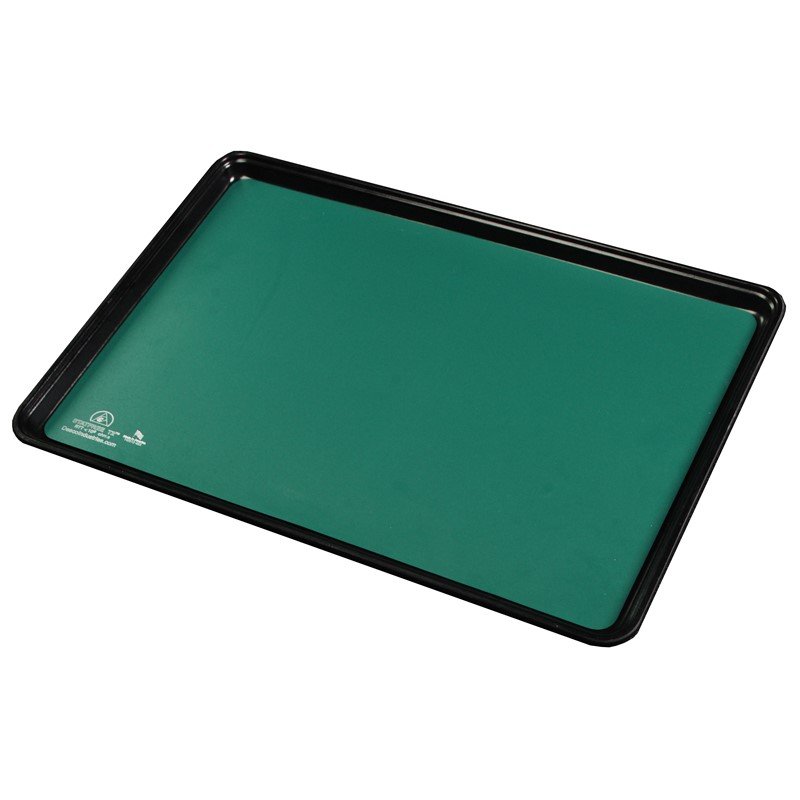

Desco 65159 – Statfree B2 Plus Vinyl Tray Liner, Green (0.080” x 16” x 24”)

• 0.080” (thickness), 16” x 24”
• Dissipative 3-layer ESD worksurface
• Improved material compound is more durable, dimensionally stable, and suitable for most electronic assembly applications
• Dissipative (1 x 10⁶to <1 x 10⁹ ohms Rtt) Top Layer
• Conductive (<1 x 10⁶Rtt) Bottom Layer

Dissipative 3-Layer ESD Worksurface

Provides a worksurface that does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface1.

NEW Reinforced Vinyl Compound

The improved material compound is more durable, dimensionally stable, and suitable for most electronic assembly applications.

Dissipative (1 x 106to <1 x 109 ohms Rtt) Top Layer – Limited Lifetime Warranty

Meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items.

Conductive (<1 x 106Rtt) Bottom Layer – Limited Lifetime Warranty

Reduces the resistance to ground (Rtg) from the top of the surface to the groundable point ground and allows the material to be used with ESD workstation monitors.

Laser Engraved With ESD Protective Symbol, Specs, and Manufacturer Information

Identifies ESD protective products for control & auditing purposes.

Lead-free RoHS compliant

Made in the United States of America
