Desco 82100 – Disposable ESD Mat, 11″ x 14″

• Disposable fiberboard with internal conductive layer, 11in x 14in
• Dissipative range: 10E6 – 10E8 ohms Rtt per ANSI/ESD S4.1
• Volume resistance range: 10E6 – 10E7 ohms per ANSI/ESD STM11.12
• Constructed with recyclable material
• Dimensions: 11in x 14in

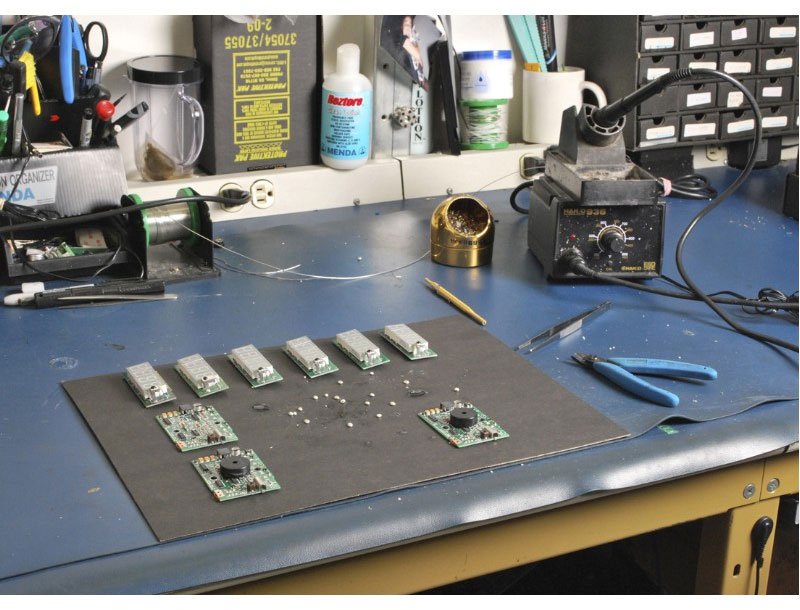

Desco’s Disposable ESD Mat meets ANSI/ESD S20.20 worksurface required limit and recommendation of ANSI/ESD S4.1 for contact with ESD susceptible items. The material is intended to be a sacrificial material to protect a more expensive worksurfaces from damage caused by conformal coating, solder fluxes, or other contaminates. The material is made from a 100% recyclable dissipative impregnated worksurface material and has an internal conductive layer so that it does not generate a static charge and will control the discharge rate from all conductors (including ESD susceptible items) that are placed on the surface. The mat may be grounded by placing it onto an already grounded ESD worksurface.

Product Features

• Disposable Fiberboard with Internal Conductive Layer
• Protects worksurfaces from solder, conformal coating, or other chemicals that will damage ESD rubber and vinyl mats
• Dissipative Worksurface – 10E6 – 10E8 ohms Rtt per ANSI/ESD S4.1
• Controls charge removal from ESD susceptible items; meets ANSI/ESD S20.20 worksurface required limit
• Volume Resistance 10E6 – 10E7 ohms per ANSI/ESD STM11.12
• Allows the mat to electrically couple to the grounded ESD mat it is being placed on without a separate ground cord for the Disposable ESD Mat
• 0.060in Material Thickness
• Allows mat to be used on top of another ESD worksurface
• Recyclable
• Made with 100% recycled material and can be disposed of in standard paper recycling bins
• Made in the United States of America
