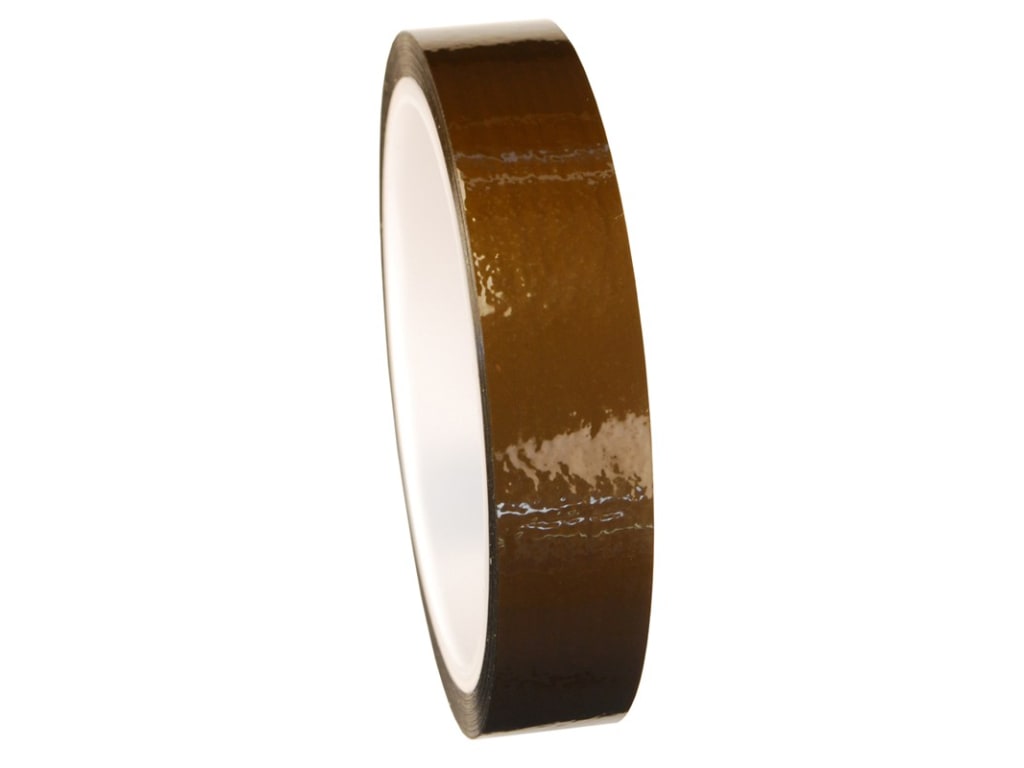

Desco Wescorp Anti-Static, High Temperature Polyimide Tape

• Anti-static high temperature polyimide tape
• 36 yard length
• Wound on a 3” plastic core
• Temperature resistance to a maximum of 572°F (300°C) for up to 10 seconds
• May be exposed to high temperatures for wave soldering and other applications without leaving residue when removed

This item is an anti-static, high-temperature Polyimide tape which is 36 yards long, wound on a 3” plastic core and available in several widths. It has a temperature resistance to a maximum of 572°F (300°C) for up to 10 seconds and may be exposed to high temperatures for wave soldering and other applications without leaving residue when removed.

This tape contains low charging Polyimide film (2.4mils thick) with Polysiloxide adhesive. Wescorp tape generates less 50 volts when unwound from roll (at 73°F, 45% RH average) making it safe to use around most ESD sensitive items. Please note, all tapes will generate some amount of triboelectric charge when unwound from roll. Standard, non-ESD tapes typically generate more than 1000 volts when unwound from roll. If you require less voltage than 50 volts, a grounded tape dispenser or ionization is recommended when unrolling the tape.

Desco’s high-temperature Polyimide tape has a surface resistance of 1 x 10⁸ to < 1 x 10¹¹ ohms, tested per ANSI/ESD S11.11, and meets dissipative limit requirements of packaging standard ANSI/ESD S541.

Additional Features:

• Surface Resistance 1 x 10⁸ to < 1 x 10¹¹ ohms, tested per ANSI/ESD S11.11
• Meets dissipative limit requirements of packaging standard ANSI/ESD S541
• Low Charging Polyimide Film (2.4 Mils Thick) With Polysiloxide Adhesive
• Wescorp tape generates less 50 volts when unwound from roll (at 73°F, 45% RH average) making it safe to use around most ESD sensitive items
