Digilent 410-352-25 – Arty S7-25 Board

• 8,150 slices containing four 6-input LUTs and 8 flip-flops (3,650 slices*)
• 2,700 Kbits of fast block RAM (*1620 Kbits)
• Five clock management tiles, each with a phase-locked loop and mixed-mode clock manager (Three CMTs*)
• 120 DSP slices (80 DSP slices*)

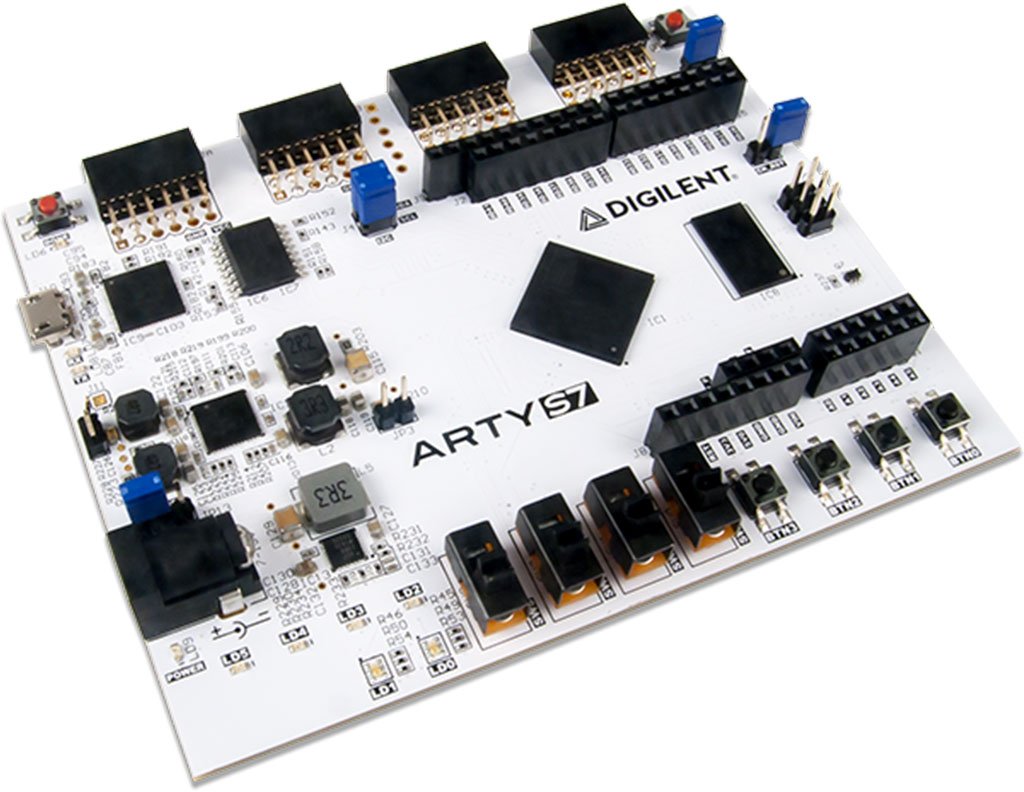

The Arty S7 board features the new Xilinx Spartan-7 FPGA and is the latest member of the Arty FPGA development board family from Digilent. The Spartan-7 FPGA offers the most size, performance, and cost-conscious design engineered with the latest technologies from Xilinx and is fully compatible with Vivado Design Suite versions 2017.3 and newer. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Use the dual row Arduino® connectors to mount one of the hundreds of hardware compatible shields available, or use the Pmod ports with Digilent’s pre-made Pmod IP blocks for a more streamlined design experience. Arty S7 was designed to be MicroBlaze ready and comes out of the box ready to use with the free Xilinx WebPack licensing with the Vivado Design Suite.

Memory

• 256MB DDR3L with a 16-bit bus @ 650MHz
• 16MB Quad-SPI Flash
• Power
  – Powered from USB or any 7V-15V external power source
• USB
  – USB-JTAG Programming circuitry
  – USB-UART Bridge

Switches, Push-buttons, and LEDs

• 4 Switches
• 4 Buttons
• 1 Reset Button
• 4 LEDs
• 2 RGB LEDs

Expansion Connectors

• 4 Pmod ports
  – 32 total FPGA I/O (16 shared with shield connector)
• Arduino/chipKIT Shield connector
  – 45 total FPGA I/O (16 shared with Pmod connectors)
  – 6 Single-ended 0-3.3V Analog inputs to XADC
  – 3 (4*) Differential 0-1.0V Analog input pairs to XADC
