Digilent 471-022 – Breadboard Breakout with Ribbon Cable for Analog Discovery 2

• One 2×15 female header to connect the Analog Discovery or Ribbon Cable
• 30 male pins broken out to fit into a standard breadboard
• Provides a direct connection with Digilent’s Analog Discovery 2 Inputs and Outputs
• Labels for breadboard breakout pins correspond to Analog Discovery header connections
• For use with Analog Discovery 2 to easily connect, reconnect, and demonstrate portable circuits

The Digilent 471-022 is a breadboard breakout for use with the Digilent Analog Discover 2. MTE cables are a convenient connection method to probe circuits under test with the Analog Discovery but can be cumbersome when using a breadboard. The Breadboard Breakout is designed to connect all of the inputs and outputs on the Analog Discovery directly to a breadboard. When switching between circuits, the entire breadboard adapter can be removed or the Analog Discovery can be unplugged from the adapter, leaving the entire circuit intact. Multiple Breadboard Breakouts can be used to conveniently switch between projects or designs.

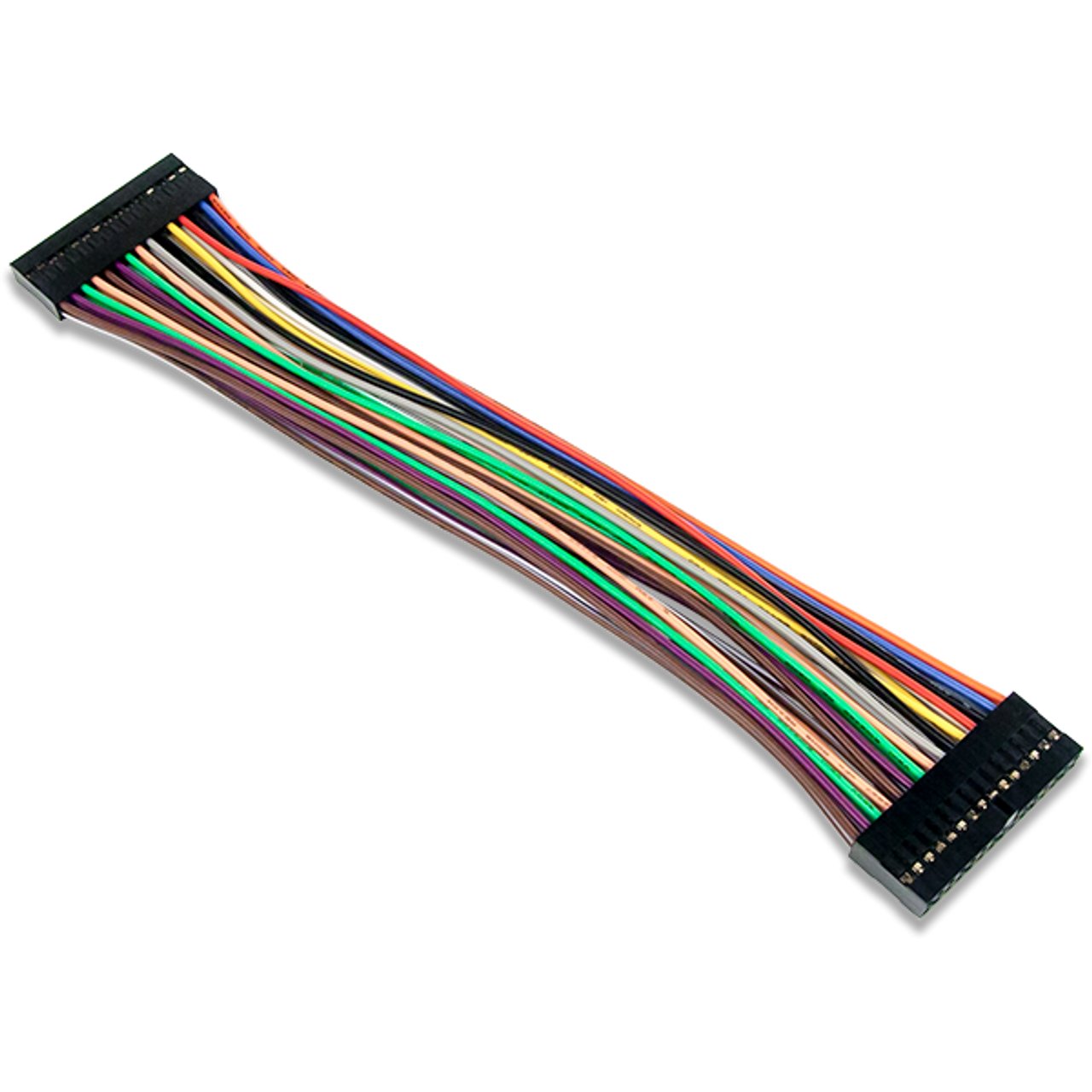

The Analog Discovery (sold separately) connects to the Breadboard Breakout directly to the 2×15 pin connector on the top of the breakout, or with the 2×15 Ribbon Cable. All of the signals are passed directly through to the Cmod style header to individual nodes in the breadboard.
