Description

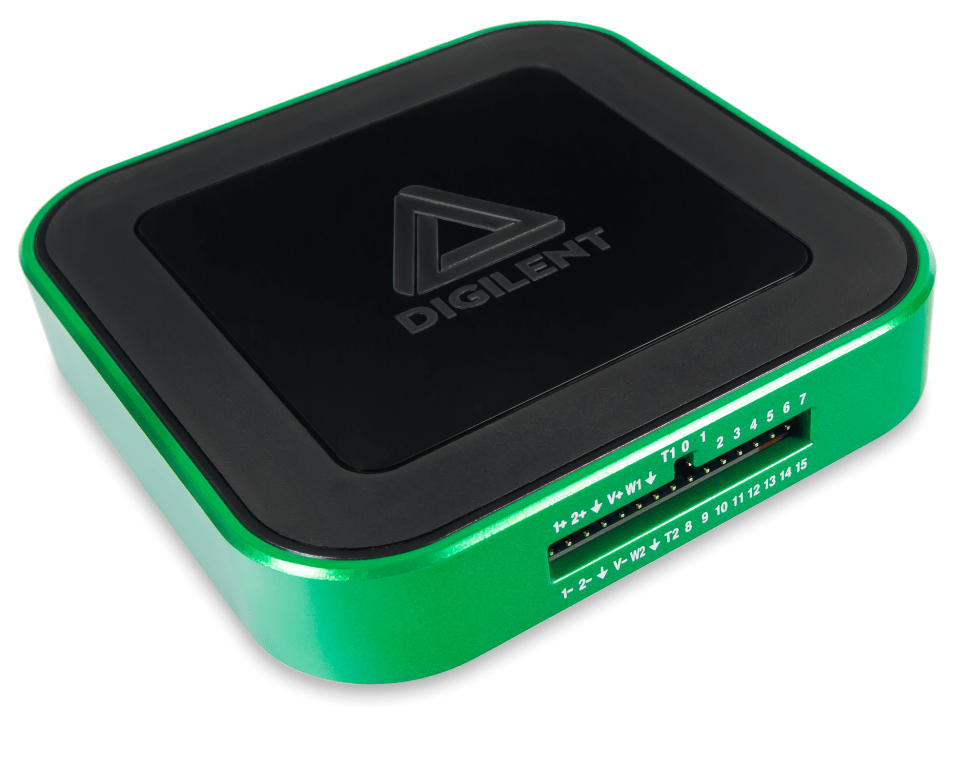

Digilent Analog Discovery 3
- 2 channels, 14-bit resolution, 125 MS/s per channel (Oscilloscope)
- 2 channels, 14-bit resolution, 125 MS/s per channel (Arbitrary Waveform Generator)
- 16 digital I/O channels at up to 125 MS/s per channel (Logic Analyzer/Pattern Generator)
- 0.5 V to 5 V and -0.5 V to -5 V Variable Power Supplies
- Free WaveForms software to capture, record, analyze, and generate mixed signal waveforms
USB Oscilloscope, Function Generator, Logic Analyzer, Pattern Generator and Power Supply
The Digilent Analog Discovery 3 is a digital oscilloscope, logic analyzer, waveform generator, pattern generator, and much more. Using the included WaveForms software (supported by Windows, Mac, and Linux), the Analog Discovery 3 can be used in the lab, in the field, or even at home as any number of test instruments that you might have to buy separately on a traditional benchtop.
Like its predecessor, the Analog Discovery 3 is a portable USB-powered test and measurement device, though it now features an upgraded USB-C connection. It’s lightweight and small enough to fit in your pocket or backpack, so it becomes an exceptional companion for any engineer.
This iteration of the Analog Discovery digital oscilloscope also allows engineers access to two new powerful features in WaveForms: the FIR (finite impulse response) Filter and the PID (Proportional Integral Derivative) Controller. Through the use of optional FIR filters on Oscilloscope input channels, users can reduce the amount of high-frequency noise that could affect the quality of their measurements. The PID Controller allows the control of an output of a signal based on the response of your system.
The following instruments are available in the WaveForms application for Analog Discovery 3:
- Oscilloscope
- Waveform Generator
- Power Supplies
- Voltmeter
- Data Logger
- Logic Analyzer
- Pattern Generator
- Static I/O
- Spectrum Analyzer
- Network Analyzer
- Impedance Analyzer
- Curve Tracer
- Protocol Analyzer
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Double |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 5 V |
| Programmable | Yes |
| Current Output 1 | Variable |
| Max Current Output 1 | 800 mA (0.8 A) |
| Voltage Output 2 | Variable |
| Max Voltage Output 2 | -5 V |
| Current Output 2 | Variable |
| Max Current Output 2 | 800 mA (0.8 A) |
Generators / Counters/Function Generator Template | |
| Channels | 2 |
| Frequency Maximum | 12 MHz |
| Sample Rate | 125 MS/S (125 MSa/S) |
| Screen Type | None |
Oscilloscopes/Digital Oscilloscopes Template | |
| Bandwidth | 30 MHz |
| Sampling Rate | 125 MS/S (0.125 GS/S) |
| Bits | 14 |
Product General Attributes | |
| Unique Features | USB Oscilloscope, Function Generator, Logic Analyzer, Pattern Generator, and Variable Power Supply |
