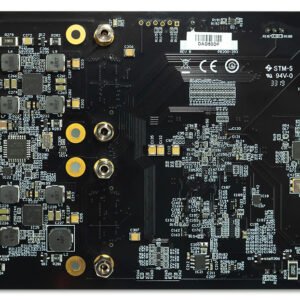

Digilent Eclypse Z7 – Zynq-7000 SoC Development Board

• High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
• 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally
• Powered from external 12V 5A supply
• Gigabit Ethernet PHY

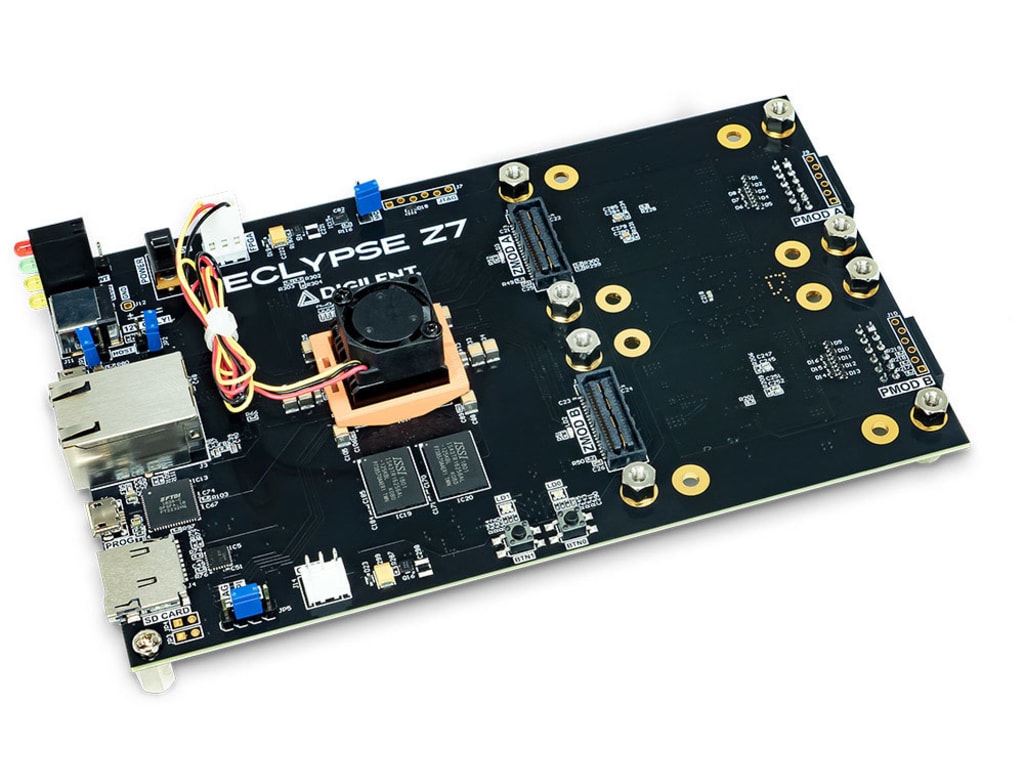

The Eclypse Z7 is Digilent’s newest FPGA/SoC development board, specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high-speed Zmod ports for modular expansion, a Xilinx Zynq®-7020 SoC plus software API from Digilent, the Eclypse Z7 is fast, flexible and shortens the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control, and measurement systems for edge-computing, medical, and communications applications. Eclypse Z7 is the first host board of the Eclypse Platform.

Zmod is Digilent’s new expansion solution using the open-source SYZYGY standard from Opal Kelly. Faster than the Pmod Standard and more compact and cost-effective than FMC, Zmods improve the customizability options for high-speed I/O. Plugin your application-specific Zmods and get up and running in hours or days, instead of weeks or months. Two Zmods are being released alongside the Eclypse Z7, the Zmod ADC 1410, and Zmod DAC 1411, both with 100 MSPS, 14-bit converters, with more planned in the future.

The Eclypse Z7 is a component of the Eclypse Platform, which pairs Digilent’s open software API with Digilent’s novel Eclypse hardware. Petalinux is supported out of the box, and pre-built Linux images are accompanied by the API for bulk data transfer. This system allows users to plug in their Zmods of choice and get started prototyping new high-speed measurement, instrumentation, and control systems without directly interfacing with the FPGA until desired. With this system, embedded Linux developers can leverage the power of FPGA without possessing hardware expertise. Currently, C and C++ are supported, with plans to add support for other programming languages in the future.
