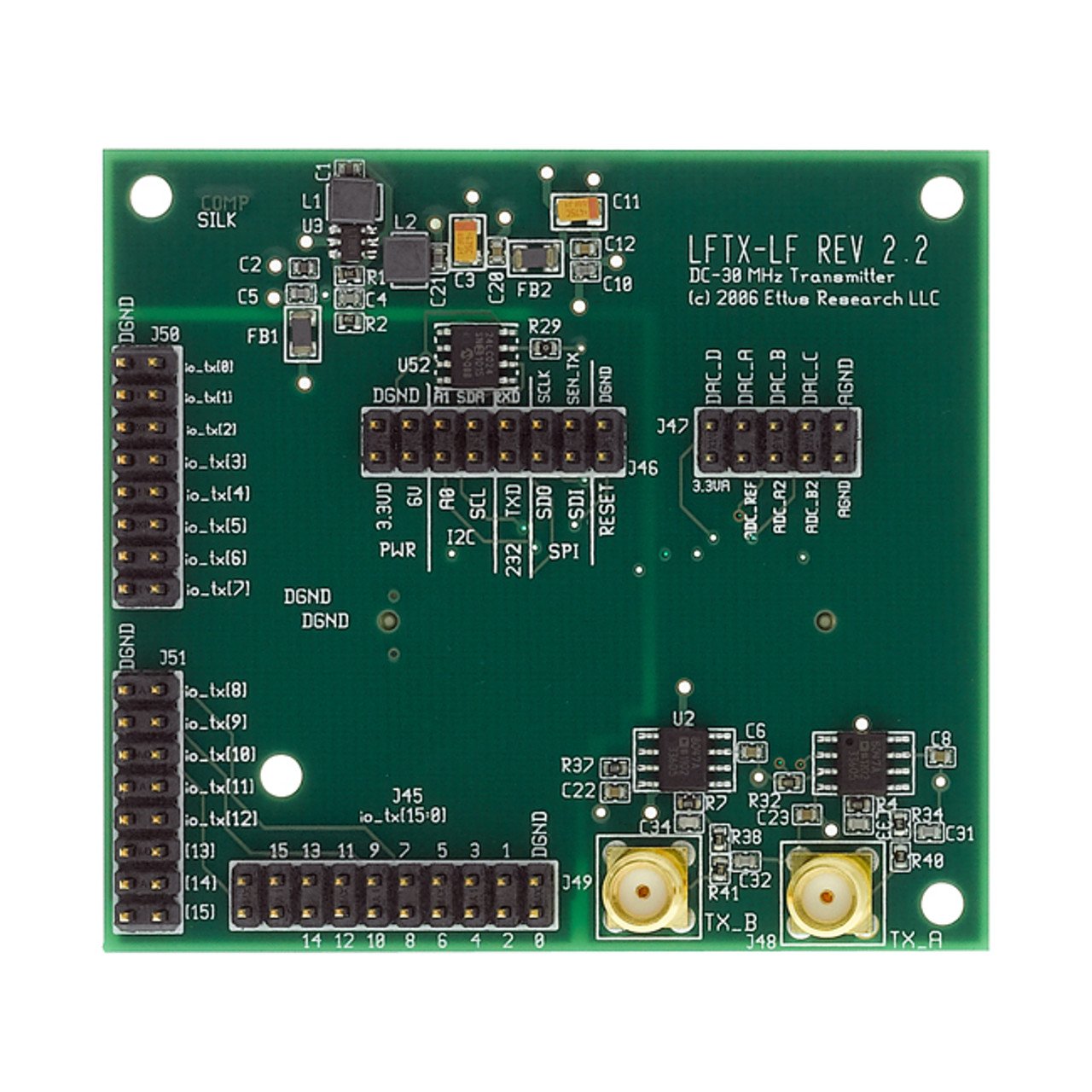

Digilent Ettus LFTX – Daughterboard for Ettus USRP N210, 0 – 30 MHz Tx

• Transmit Only
• Frequency range: 0 – 30 MHz
• Channel count: 1 TX intermediate frequency (IF) or 1 quadrature interface (IQ)
• Bandwidth: 30 MHz/Channel
• Outputs can be processed independently or as a single I/Q pair

The LFTX daughterboard utilizes two high-speed operational amplifiers to allow transmission from 0-30 MHz. The LFTX is ideal for applications in the HF band, or for applications using an external front end to up-convert and amplify the intermediate signal. The outputs of the LFTX can be processed independently, or as a single I/Q pair. Example applications include HF communications, radios with external front ends and direct signal generation below 30 MHz.
