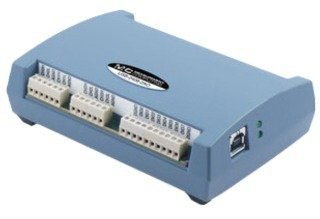

Digilent MCC USB-2408-2AO – High Precision Thermocouple and Voltage Measurement USB DAQ Device
12 people are viewing this product right now
$889.90
Shipping calculated at checkout.
Estimated delivery:5 days
USB-2408-2AO; DAQ; 16SE/8Diff; 24b; 1kS/s; 8DI/O
- 16 single-ended (SE) or eight differential (DIFF) analog input channels
- Up to eight analog inputs can be configured for thermocouples measurements
- 24-bit resolution
- 1 kS/s sample rate
- Two 16-bit analog output channels
- Eight digital I/O channels
- Two counter channels (32-bit) that count TTL pulses
- 500 VDC input isolation between field wiring and the USB interface
- Screw terminals for field wiring connections
- Powered by USB supply from your computer, USB cable included
Guarantee Safe and Secure Payment Checkout
Description
Digilent MCC USB-2408-2AO
- 16 single-ended (SE) or eight differential (DIFF) analog input channels
- Up to eight analog inputs can be configured for thermocouples measurements
- 24-bit resolution
- 1 kS/s sample rate
- Two 16-bit analog output channels
High Precision Thermocouple and Voltage Measurement USB DAQ Device
The Digilent MCC USB-2408-2AO is a high-precision thermocouple and voltage measurement USB DAQ device. The device provides up to 16 single-ended (SE)/8 differential (DIFF) analog inputs, 8 digital I/O, two counter inputs, and two analog outputs. The USB-2408-2AO offers a 24-bit resolution for ultra-accurate voltage or thermocouple measurements.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
MCC USB-2408-2AO Block Diagram
USB-2408-2AO functions are illustrated in the block diagram shown below.
Dataloggers / Data Acquisition/Data Recorders Template | |
|---|---|
| Type (Recorders) | DAQ System |
| Sampling Frequency (Recorders) | 1 kS/S (0.001 MS/S) |
| Input Types (Controllers/Recorders) | Digital / Logic / On-Off, T/C – RTD, Voltage |
| Power Source | USB Powered |
Product General Attributes | |
| Product Height | 1.40 IN |
| Product Length | 5.00 IN |
| Product Width | 3.53 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Dimensions | 5 × 3.53 × 1.4 in |
|---|
