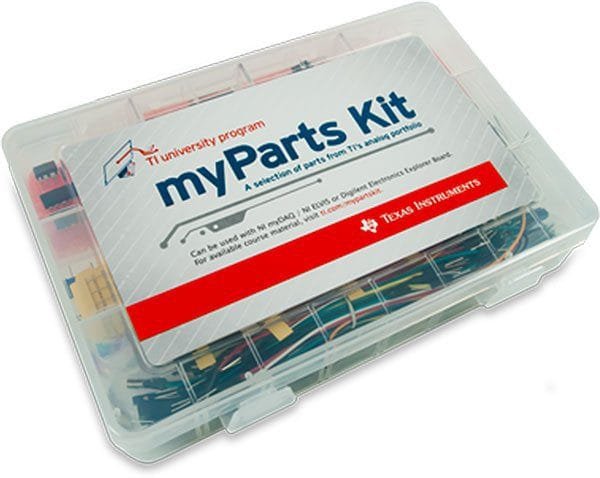

Digilent myParts Kit – Companion Parts Kit for NI myDAQ

The set of key components in the myParts Kit encourages hands-on experimentation with breadboards of basic circuitry, helping to make learning productive and enjoyable for beginners and more advanced students alike. Hobbyists and independent developers will also find the kit useful for investigating their design concepts.

The kit comes with a collection of parts that are the building blocks of all electronics, including op-amps, an instrumentation amplifier, a comparator, voltage regulators, switching regulators, digital logic gates, timers, temperature sensors, data converters, transistors, resistors, capacitors, LEDs, switches, a wiring kit and more. myParts Kit enables your students to run experiments that help them understand real-life applications in areas such as power management, audio amplification, spinning motors, light detection, signal conditioning, data acquisition, and telecommunications to name a few.

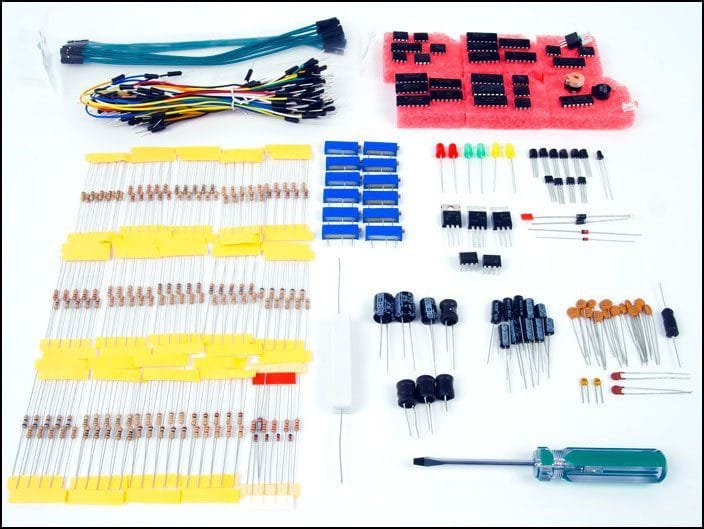

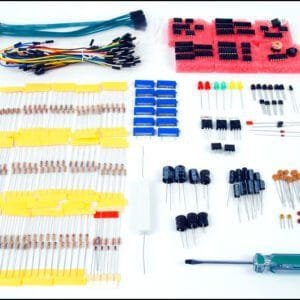

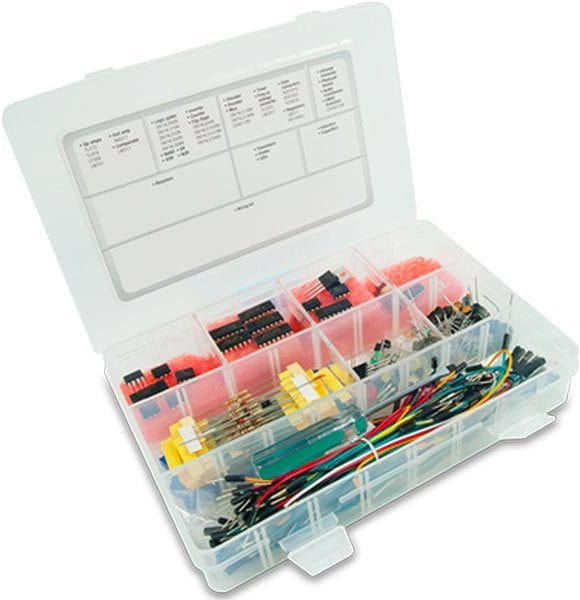

Kit includes:

Op-amps:

• Op-amp: TL072CP
• Op-amp: TL074CN
• Op-amp: LF356
• Op-amp: LM741C
• Instrumentation Amp: INA217
• Comparator: LM311P

Regulators:

• 1.5A boost/buck/inverting switching regulator: MC34063AP
• Voltage regulator: LM317 (TO-220)

Logic ICs:

• NAND: triple 3 input (SN74LS10N)
• NAND: quad 2 input (SN74LS00N)
• OR: quad 2 input (SN74LS32N)
• XOR: quad 2 input (SN74LS86N)
• NOR: quad 2 input (SN74LS02N)
• AND: quad 2 input (SN74LS08N)
• Inverter buffer/driver: SN74LS04N Hex
• Counter, 4-bit: SN74LS163N
• Dual JK flip-flop: SN74LS107AN
• D type dual flip-flop: SN74LS74N
• Decoder/encoder/mux: CD4511BE
• 3 to 8 decoder/demux: SN74LS138N
• 8 to 3 encoder: SN74LS148
• Dual complementary pair/inverter: CD4007UB
• Timer: TLC555CP

Converters:

• Freq to V converter: LM2917N/NOPB
• A/D converter, 12-bit: ADS7816P
• A/D converter: ADS7822P
• D/A converter, 12-bit: TLV5616CP

Diodes:

• Zener diode: 1N4735
• Small signal diode: 1N3064
• Fast switching diode: 1N914B
• 1A Shottky diode: 1N5819
• 1A rectifier diode: 1N4001
• Infrared receiver diode
• Infrared emitter diode

Resistors:

• 1/4 W, 1.1 Ω, ±5%
• 1/4 W, 2.2 Ω, ±5%
• 1/4 W, 10 Ω, ±5%
• 1/4 W, 47 Ω, ±5%
• 1/4 W, 68 Ω, ±5%
• 1/4 W, 100 Ω, ±5%
• 1/4 W, 150 Ω, ±5%
• 1/4 W, 200 Ω, ±5%
• 1/4 W, 220 Ω, ±5%
• 1/4 W, 330 Ω, ±5%
• 1/4 W, 470 Ω, ±5%
• 1/4 W, 680 Ω, ±5%
• 1/4 W, 1 kΩ, ±5%
• 1/4 W, 1.5 kΩ, ±5%
• 1/4 W, 2.2 kΩ, ±5%
• 1/4 W, 3.3 kΩ, ±5%
• 1/4 W, 4.7 kΩ, ±5%
• 1/4 W, 5.6 kΩ, ±5%
• 1/4 W, 10 kΩ, ±5%
• 1/4 W, 15 kΩ, ±5%
• 1/4 W, 20 kΩ, ±5%
• 1/4 W, 22 kΩ, ±5%
• 1/4 W, 33 kΩ, ±5%
• 1/4 W, 47 kΩ, ±5%
• 1/4 W, 68 kΩ, ±5%
• 1/4 W, 100 kΩ, ±5%
• 1/4 W, 200 kΩ, ±5%
• 1/4 W, 470 kΩ, ±5%
• 1/4 W, 1 MΩ, ±5%
• 1/4 W, 10 MΩ, ±5%

Power Resistors:

• 10W, 6.8 Ω, ±5%

Potentiometers:

• 3/4 W, 1 kΩ, ±10%: 3006P-102
• 3/4 W, 10 kΩ, ±10%: 3006P-103
• 3/4 W, 100 kΩ, ±10%: 3006P-104

Ceramic Capacitors:

• 39 pF (x2)
• 100 pF (x2)
• 1 nF (x2)
• 2.2 nF (x2)
• 4.7 nF (x2)
• 10 nF (x4)
• 47 nF (x2)
• 100 nF (x2)

Electrolytic Capacitors:

• 1 uF, 50V (x2)
• 4.7uF, 50V (x2)
• 10 uF, 50V (x2)
• 22 uF, 25V (x2)
• 47 uF, 25V (x2)
• 220 uF, 25V, ±20% (x1)
• 470 uF, 25V, ±20% (x2)

Transistors:

• P-channel MOSFET (x4): ZVP2110A
• NPN transistor (x3): 2N3904L
• PNP transistor (x3): 2N3906L
• NPN bipolar power transistor: TIP31C
• PNP bipolar power transistor: TIP32C
• N-channel power MOSFET: IRF510
• Compl. transistor pair: STD815CP40 or STD830CP40
• Dual NPN high voltage transistors: STD845DN40 or STD840DN40

LEDs:

• Red (x2)
• Yellow (x2)
• Green (x2)

Misc:

• Audio transformer
• Photocell buzzer
• Light sensor
• Wiring kit
