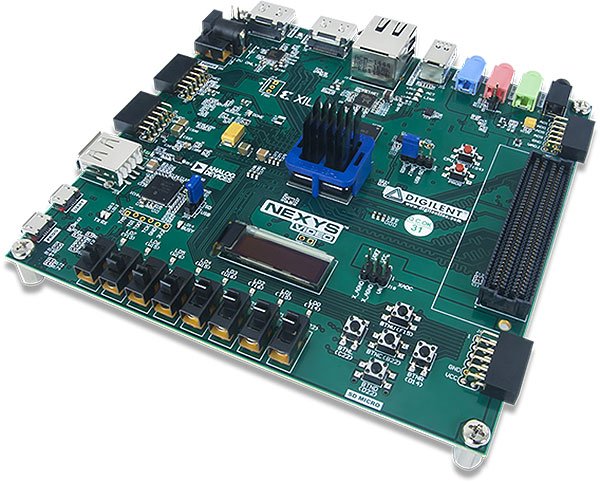

Digilent Nexys Video – Artix-7 FPGA: Trainer Board for Multimedia Applications

• Features the Xilinx Artix-7 FPGA (XC7A200T-1SBG484C)
• 33,650 logic slices, each with four 6-input LUTs and 8 flip-flops
• 13 Mbits of fast block RAM (3x more than the Nexys 4 DDR)
• 10 clock management tiles, each with phase-locked loop (PLL)

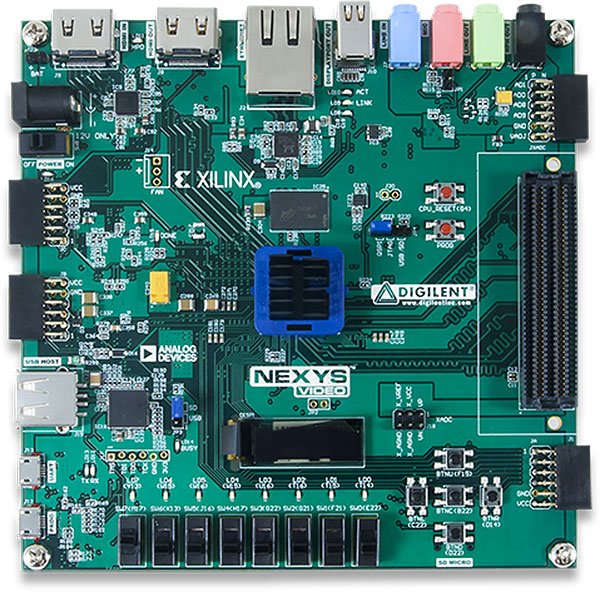

The Nexys Video board is a complete, ready-to-use digital circuit development platform based on the latest Artix-7 Field Programmable Gate Array (FPGA) from Xilinx. With its large, high-capacity FPGA (Xilinx part number XC7A200T-1SBG484C), generous external memories, high-speed digital video ports, and 24-bit audio codec, the Nexys Video is perfectly suited for audio and video processing applications. Several built-in peripherals, including Ethernet, USB-UART, and a high bandwidth USB data transfer protocol expand the connectivity of the Nexys Video so that it can be cleanly integrated as a single component of a large system. The Nexys Video also includes provisions for direct human interaction with a connector for USB-HID devices, an OLED display, and a vast assortment of switches, buttons, and LEDs. Lastly, the FMC and Pmod ports can be used to add virtually any functionality or connection interface your application demands.
