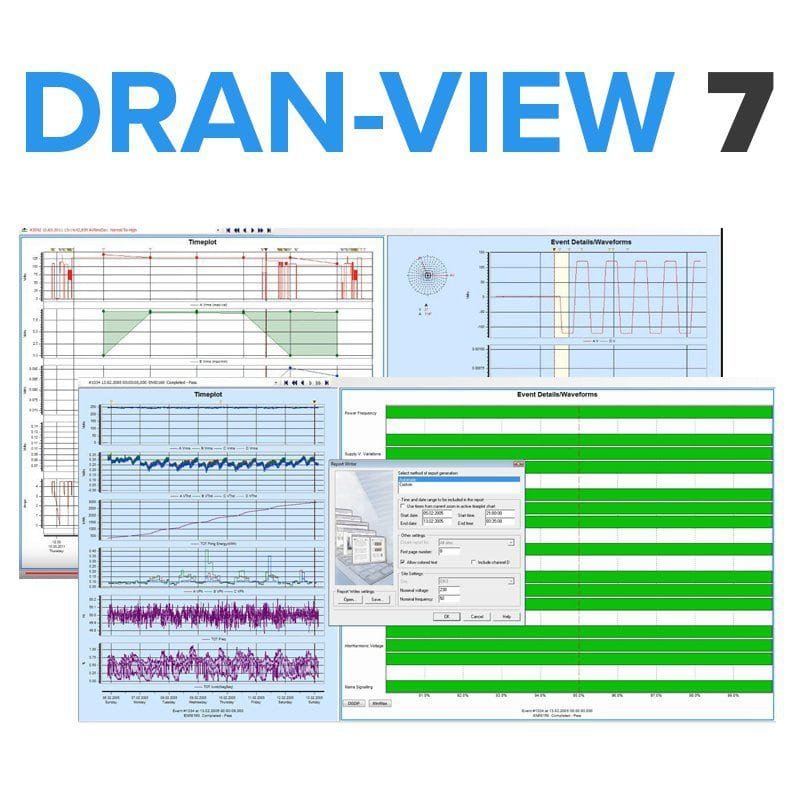

Dranetz DV7E-PX – Dran-View Enterprise Software

• Significantly faster waveform calculations and file loading
• Support for large data files. Effects file-compression (half-size of the original data) when saving DV6 documents
• Customizable report presentations and math functions in a wide variety of situations
• Has an unlimited Undo/Redo queue

Dranetz Dran-View Enterprise Software for PX5, PX5-400, 4400, PowerVisa, EP1, PP1, PP4300, 658, MeasurePAD, PQDIF, COMTRADE. Includes DranSET2.

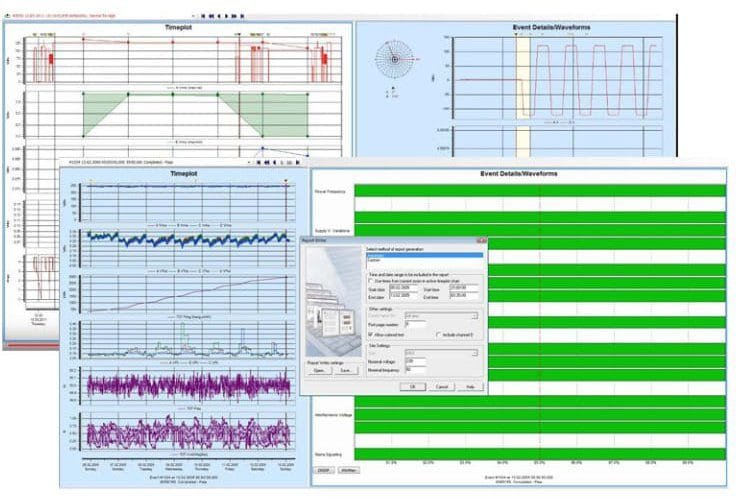

Detailed analysis of Power Quality and/or Energy data from nearly any recent products from Dranetz. These are not just screen captures, this is an advanced analysis of sample points recorded and saved by your Dranetz instrument and presented in various forms including Time Plots, Event Lists, and Event detail. Due to the advanced design of the Dranetz event database Time Plots and Event Detail graphs can be zoomed in to get to the detailed information.

• A simple mouse click allows you to quickly scroll through data, zoom in on disturbances, trend data, filter events, evaluate statistics and perform advanced harmonic and inter harmonic analyses.
• The software has been optimized for speed and to accommodate large data sets.
• Flexibility has been integrated throughout the package users can customize both appearance and behavior.
• Two versions are available one for the everyday user (Pro), the second for advanced power professionals (Enterprise).
• Multi-functional Dran-View helps you make the most of complex data so that you can spend time where it counts most evaluating, troubleshooting, and preventing power quality events.

DRAN-VIEW 7 software runs on your Windows operating system. The data file is read by the PC via a memory card/reader or direct connect interface. Launch Windows and simply select File>Open and locate the data file you wish to analyze.
