Dwyer 473B-1 – Vane Thermo-Anemometer Test Instrument
31 people are viewing this product right now
$650.48
Shipping calculated at checkout.
Estimated delivery:5 days
DwyerVanometer Test Instrument, 473B-1, Measures Air Velocity, Flow, Humidity, and Temperature
- Measures air velocity or air volume, temperature and humidity simultaneously

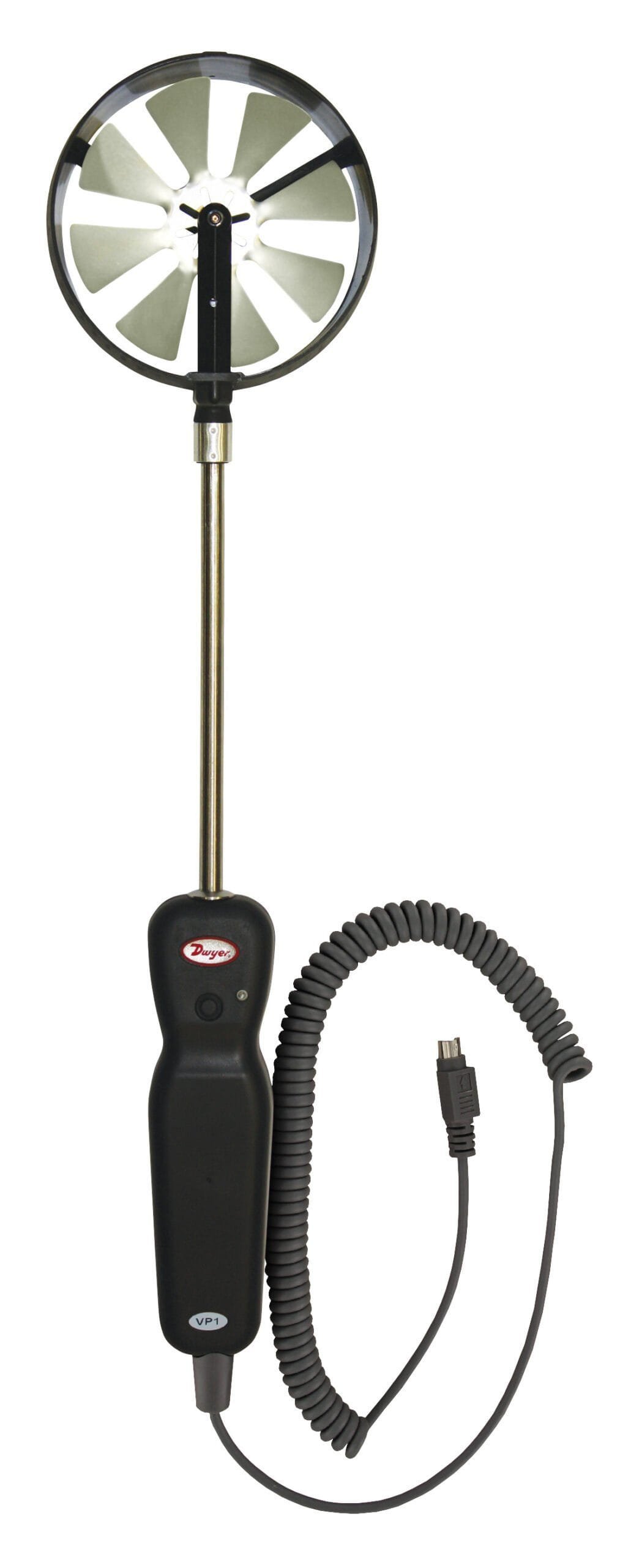

- 100mm vane probe is included
- High contrast and backlit LCD for visibility in any condition
- Able to store up to 99 readings for later evaluation
- Compatible with AP1 thermo-anemometer probe
- Compatible with RP1 thermo-hygrometer probe
Guarantee Safe and Secure Payment Checkout
Description
Dwyer 473B-1
- Measures air velocity or air volume, temperature and humidity simultaneously
- 100mm vane probe is included
- Compatible with AP1 thermo-anemometer probe
- Compatible with RP1 thermo-hygrometer probe
Vane Thermo-Anemometer Test Instrument

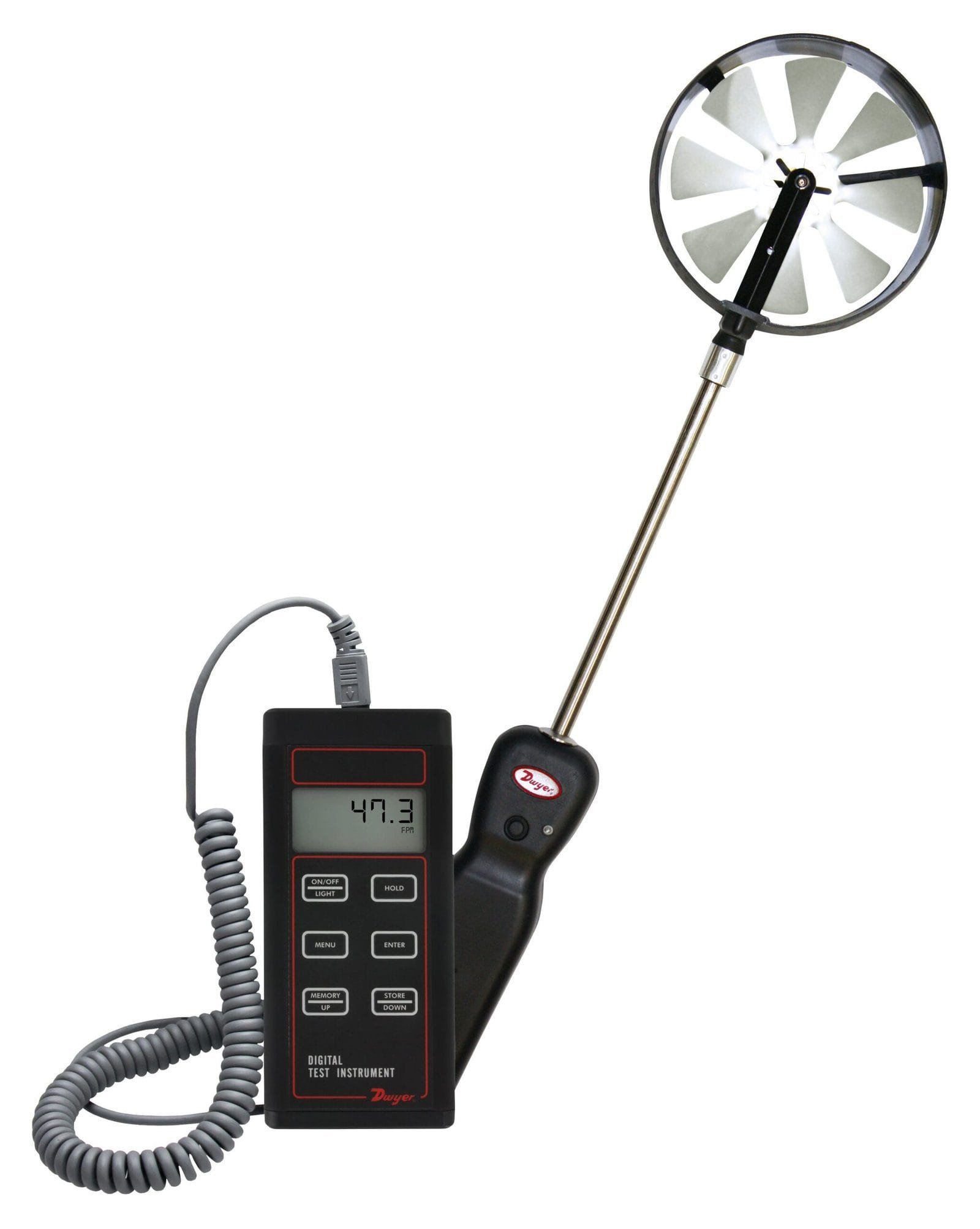

The Dwyer 473B-1 100 mm Vane Thermo-Anemometer Test Instrument is a versatile unit that quickly and easily measures air velocity or volumetric airflow, as well as air temperature and humidity in imperial or metric units. A stainless steel 100 mm vane probe is included, which has a comfortable handgrip. The extruded aluminum housing fully protects electronics, yet is lightweight and comfortable to hold.
The 473-B is also compatible with two other probes – the AP1 thermo-anemometer probe, and RP1 thermo-hygrometer probe. Both are sold separately.
Environmental Testers / Physical Property/Anemometer / Air Flow Template | |
|---|---|
| Type (anemometer) | Vane |
| Measurement (anemometer) | Ft/Min, m/s |
| Air Velocity Max | 5000 ft/min |
| Air Velocity Min | 40 ft/min |
| Accuracy Air Velocity | ±1.5% of reading ±20 fpm (±0.1 m/s) [0.25 to 10 m/s]±1.5% of reading ±40 fpm (±0.2 m/s) [10 to 20 m/s] ±1.5% of reading ±60 fpm (±0.3 m/s) [20 to 25 m/s] |
| Humidity | Yes |
| Temperature | Yes |
| Dew Point | Yes |
| Min/Max Display | Yes |
| Data Hold | Yes |
| Interchangable Probe Options | Yes |
| Replaceable Vane | Yes |
Product General Attributes | |
| Unique Features | • Compatible with Dwyer AP1 thermo-anemometer and RP1 thermo-hygrometer wired probes (sold separately) • Included 100 mm vane probe is able to measure air velocity, volumetric air flow, temperature, and humidity • High contrast and backlit LCD for visibility in any condition • Able to store up to 99 readings for later evaluation |
| Warranty | 1 YEARS |
| Warranty Details | The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller’s option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused/altered. |
| Safety Approval | CE |
| Storage | Internal Memory |
| Product Weight | 521 GRAMS (1.15 LBS) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.80.2000 |
| ECCN Number | EAR99 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Other Information | Probe Length:: 8˝ (203 mm) insertion Cable Length:: 28˝ (71 cm) retracted; 6´ (18.3 m) extended Vane Material:: Anodized aluminum |
