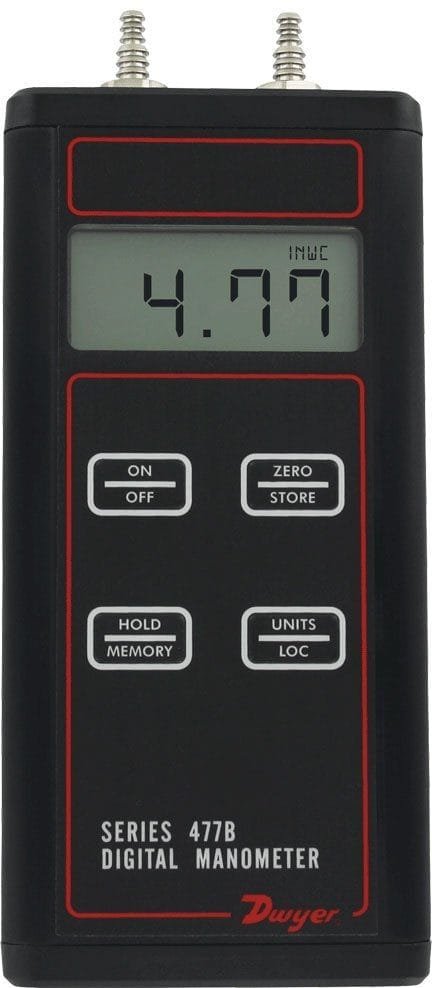

Dwyer 477B-6 – Handheld Digital Manometer, 0 to 50 psi (0 to 344.7 kPa)

• Range: 0-50.00 psi
• 4 Digit LCD Display
• Precise 0.1% FS accuracy provides four times better accuracy than most standard manometer/gages
• Aluminum housing protects instruments against damage
• 40 readings in internal memory reduce time to record data

The Series 477B Handheld Digital Manometer is a versatile, hand-held, battery-operated manometer available in several basic ranges from 0-20 in w.c. up to 100 psi. All models measure either positive, negative or differential pressures with ±0.10% of full-scale accuracy. You can select from up to seven common English and metric pressure units so conversions are not necessary. A memory function allows storage of up to 40 readings for later recall and a backlight provides auxiliary lighting for hard-to-see locations. Also standard are a hold feature plus both visual and audible overpressure alarms.

Applications

• Lab calibration of other pressure instruments
• Air velocity/air flow measurements in commercial buildings

Product Dimension
