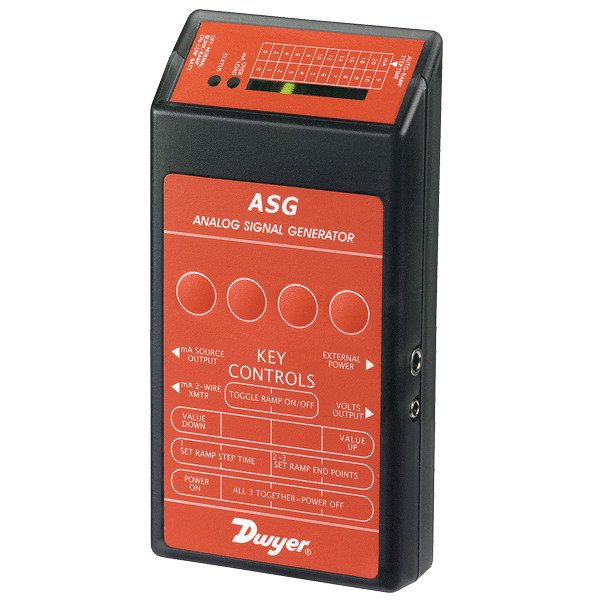

Dwyer ASG – Analog Signal Generator
34 people are viewing this product right now
$340.56
Shipping calculated at checkout.
Estimated delivery:5 days
Dwyer Analog Signal Generator, ASG, Ramp Function, Bar Graph LED
- Analog Signal Generator, ASG, Ramp Function, Bar Graph LED
- Pocket size
- Bar graph LED for signal display
- Ramp function to minimum and maximum values
- Variable ramp function timing
- Low battery indication
- User-defined auto shutoff times for battery conservation
- Separate milliamp and voltage output jacks
- Up to 30 hours continuous on a single battery
Guarantee Safe and Secure Payment Checkout
Description
Dwyer ASG – Analog Signal Generator
Ramp Function, Bar Graph LED, Selectable Auto Shut Off
The Model ASG Analog Signal Generator generates a 0-10 VDC signal in increments of 1 V or a 4-20 mA signal in increments of 2 mA. An LED bar graph visually indicates the analog signal level. Model ASG will also continuously ramp to user-defined maximum and minimum values with user-defined ramp interval timing.
APPLICATIONS
- Troubleshooting transmitters and transducer
- Calibrating transducers, displays, and other analog signal devices
Product General Attributes | |
|---|---|
| Unique Features | • LED bar graph for visibility in dark areas • Variable ramp function timing • Auto shut-off to conserve battery life |
| Warranty | 1 YEARS |
| Warranty Details | The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller’s option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused, altered |
| Product Weight | 3.2 OUNCES (0.2 LBS) |
| Product Height | 4.7 IN |
| Product Width | 2.4 IN |
| Battery Type | 9v |
| Power Supply Voltage | 120V 50/60 Hz, Battery Powered |
| Country of Origin | United States |
You must be logged in to post a review.
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 2.4 × 4.7 in |
