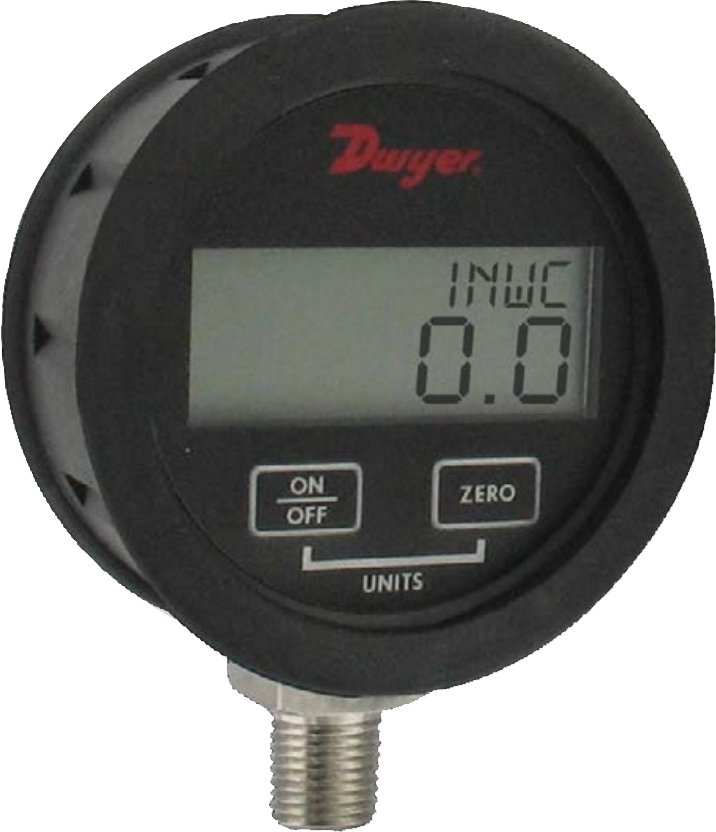

Dwyer DPGWB-09 – Single Pressure Digital Gauge with Rubber Boot, 0-200 psi
25 people are viewing this product right now
$247.11
Shipping calculated at checkout.
Estimated delivery:3 days
Single Pressure Digital Gauge with Rubber Boot, 0-200 psi
- Single Pressure Digital Gauge
- With Rubber Boot
- 0-200 psi, 0.5 accuracy
Guarantee Safe and Secure Payment Checkout
Description
Dwyer DPGWB-09
- Single Pressure Digital Gauge
- With Rubber Boot
- 0-200 psi, 0.5 accuracy
Single Pressure Digital Gauge with Rubber Boot, 0-200 psi
The Series DPGWB/DPGAB 0.5% Digital Pressure Gage offers full-scale accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gages. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquids or gases. The gages feature user-selectable units of a measure, allowing one gage to be used for a variety of pressure scales. The DPGWB/DPGAB comes with a protective rubber boot to protect against short drops and rough handling.
Applications
- Ideal for checking line pressures at system startup
- Process applications
- Process start-up
- OEM applications
Process / Calibration/Pressure Calibration/Process Pressure Gauges Template | |
|---|---|
| Type (Pressure) | Gauge, Vacuum |
| Style (Press Gauge) | Digital Indicating |
| Accuracy (Digital-ASME B40.100 / B40.7 Grades) | 0.5% F.S. (Grade 2A) Process / Industrial |
| Units of Measure (Gauges) | bar, cmH2O, ftH2O, inH2O, inHg, kg/cm2, kPa, mbar, mmHg, psi |
| Gauge Case Material | ABS |
| Wetted Part Material | Stainless Steel (SS) |
| Special Functions / Options (Press Gauge) | NACE Certified (sour gas), Protective Rubber Boot, Zero Function |
| Power (Press Gauges) | Battery |
| Connection Location (Press Gauges) | Lower |
| Maximum Range Pressure (Gauges) | 200 psi |
| Minimum Range Pressure (Gauges) | 0 psi |
| # Digit Display | 4 |
| Process Connection | NPT (National Pipe Thread) |
Product General Attributes | |
| Unique Features | • Range 0-200 psi with 4-digit display • ±0.5% accuracy, battery powered |
| Warranty | 1 YEARS |
| Warranty Details | The Seller warrants all Dwyer Instruments and equipment to be free from defects in workmanship or material under normal use and service for a period of one year from date of shipment. Liability under this warranty is limited to repair or replacement EXW Ex Works Dwyer Instruments, Inc. of any parts which prove to be defective within that time or repayment of the purchase price at the Seller’s option provided the instruments have been returned, transportation prepaid, within one year from date of purchase. All technical advice, recommendations and services are based on technical data and information which the Seller believes to be reliable and are intended for use by persons having skill and knowledge of the business, at their own discretion. In no case is Seller liable beyond replacement of equipment EXW Ex Works Dwyer Instruments, Inc. or the full purchase price. This warranty does not apply if the maximum ratings label is removed or if the instrument or equipment is abused/altered. |
| Safety Approval | CE |
| Product Weight | 0.35 LBS |
| Shipping Weight | 0.50 LBS |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Other Information | Size: : 2.62˝ O.D. x 1.52˝ deep |
