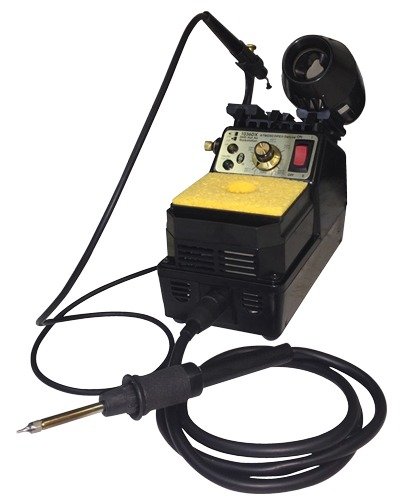

EDSYN 1036DX – LONER ATMOSCOPE Self-Contained SMT Deluxe Hot Air Station, 120V

• Self-contained deluxe hot air station with LU26 hot air tip and LT375 soldering tip
• Versatility to adjust to hot air or contact soldering from the same handle
• Uses a wide variety of nozzle sizes and general-purpose soldering tips
• 120V, 60Hz – USA standard plug
• Temperature range: 400°F – 800°F (205°C – 427°C)

The EDSYN 1036DX is a deluxe self-contained hot air station with the versatility to adjust to either hot air or contact soldering from the same handle. The small hand tool is light and easy to use and accepts a wide variety of nozzle sizes and general-purpose soldering tips. The single hose cord assembly delivers increased maneuverability.

The EDSYN 1036DX includes:

•  LU26 – hot air tip
•  LT375 – soldering tip
•  PD533 – tool pod for hot air tool
•  LP250 – pick-up tool for SMD components
•  PD532 – tool holder for pick-up tool
•  SH230 – sponge holder with RS199 cleaning sponge, RS243 leveling pad and LN230 liner

The EDSYN 1036DX unit is easy to calibrate due to the external calibration feature. The temperature control dial located on the front panel is easy to maneuver. The green indicator light shows when the heater is cycling, and the orange indicator light means the pump is active.
