Elite RF AB.02018G4348AC – Wideband RF Power Amplifier (20MHz-18GHz; 20W Psat) Rack Mount
42 people are viewing this product right now
$19,500.00
Shipping calculated at checkout.
Estimated delivery:5 days
20MHz to 18GHz, 20W Psat Linear RF Power Amplifier in 19-inch 2U rack .
- Two wideband RF power amplifiers in one cabinet designed for CW signals fabricated GaN or SiC process
- Frequency Range: 20MHz – 18GHz (BW)
- Output Power (CW): 20 Watt (Psat)
- Output Power at 1dB Compression (P1dB): 10 Watt
- Gain: 48dB
- Supply power: 100 – 240 VDC
- Class of Operation: AB
- Rack mount 19in 2U High
- Built-in Protection for over voltage and thermal overload
Guarantee Safe and Secure Payment Checkout
Description
Elite RF AB.02018G4348AC
- Two wideband RF power amplifiers in one cabinet designed for CW signals fabricated GaN or SiC process
- Frequency Range: 20MHz – 18GHz (BW)
- Output Power (CW): 20 Watt (Psat)
- Output Power at 1dB Compression (P1dB): 10 Watt
- Gain: 48dB
Wideband RF Power Amplifier (20MHz-18GHz; 20W Psat) Rack Mount
The Elite RF AB.02018G4348AC Wideband RF Power Amplifier is two wideband power amplifiers in one cabinet designed for CW signals fabricated on GaN on SiC process and can operate up to 18 GHz. These amplifiers offer high power low density, decade thermal resistance, bandwidth performance, and wideband performance. They can be widely used for military and commercial applications.
Elite RF AB.02018G4348AC – Wideband RF Power Amplifier Features
- Wide Frequency Range
- High Output Power
- High Gain
- High Reverse Isolation
- Built-in Protection for Thermal Overload and Over Voltage

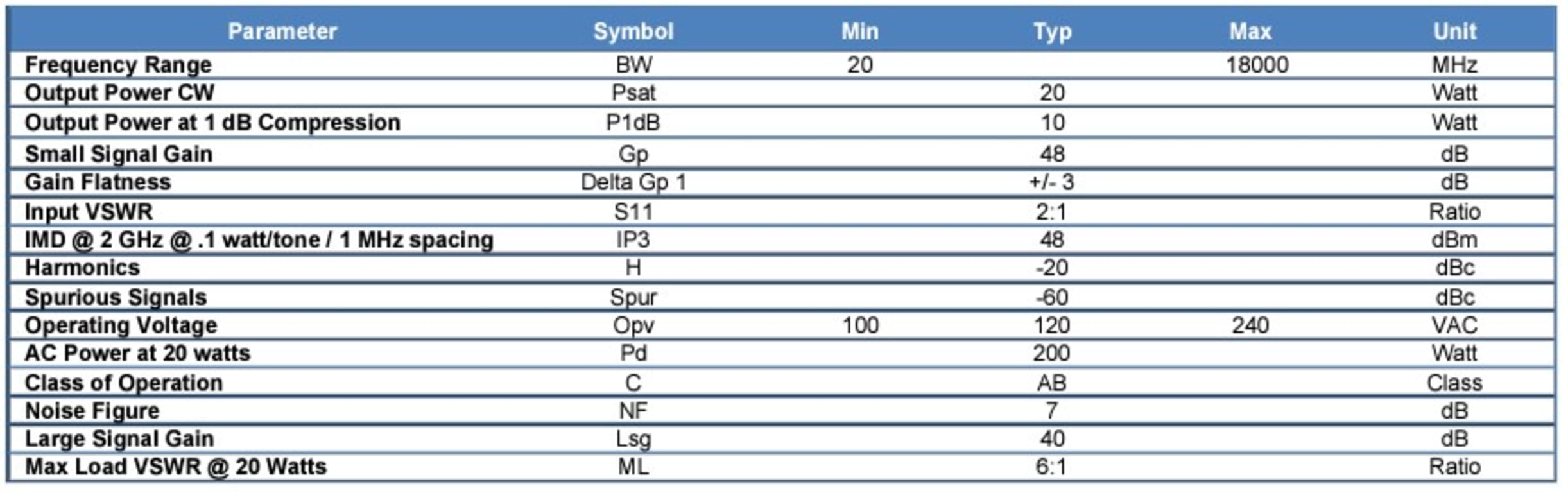

Elite RF AB.02018G4348AC Specifications
