Elite RF AB6.0012G4448AC – Linear Wideband Power Amplifier (6GHz-12GHz; 25W Psat) Rack Mount
19 people are viewing this product right now
$9,900.00
Shipping calculated at checkout.
Estimated delivery:3 days
6GHz to 12GHz, 25W Psat Linear RF Power Amplifier in 19-inch 2U rack.
- Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
- Frequency Range: 6GHz – 12GHz (BW)
- Output Power CW: 25 Watts (Psat)
- Output Power at 1dB Compression (P1dB): 10 Watts
- Gain: 48dB
- Noise Figure: 7dB
- Supply power: 100 – 240 VAC
- Class of Operation: AB
- Rack mount 19in 2U High
- High Reverse Isolation with Built-in Protection for over voltage and thermal overload
Guarantee Safe and Secure Payment Checkout
Description
Elite RF AB6.0012G4448AC
- Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
- Frequency Range: 6GHz – 12GHz (BW)
- Output Power CW: 25 Watts (Psat)
- Output Power at 1dB Compression (P1dB): 10 Watts
- Gain: 48dB
Linear Wideband Power Amplifier (6GHz-12GHz; 25W Psat) Rack Mount
The Elite RF 6.0GHz to 12.0GHz RF Power Amplifiers are a popular SSPA (solid-state power amplifier) series incorporating advanced, state-of-the-art RF GaN transistors. These amplifiers are biased class AB with gain ranging up to 48dB and operate in CW or pulsed mode. The units feature an enable/disable function and robust built-in protection. These RF amplifiers are well-suited for various applications, including EW, commercial and military radar, communications, industrial, scientific, medical, and laboratory use.
Elite RF 20MHz – 6GHz RF Power Amplifiers Features (AB6.0012G4448AC)
- Wide Frequency Range
- High Output Power
- High Gain
- High Reverse Isolation
- Built-in Protection for Thermal Overload and Over Voltage

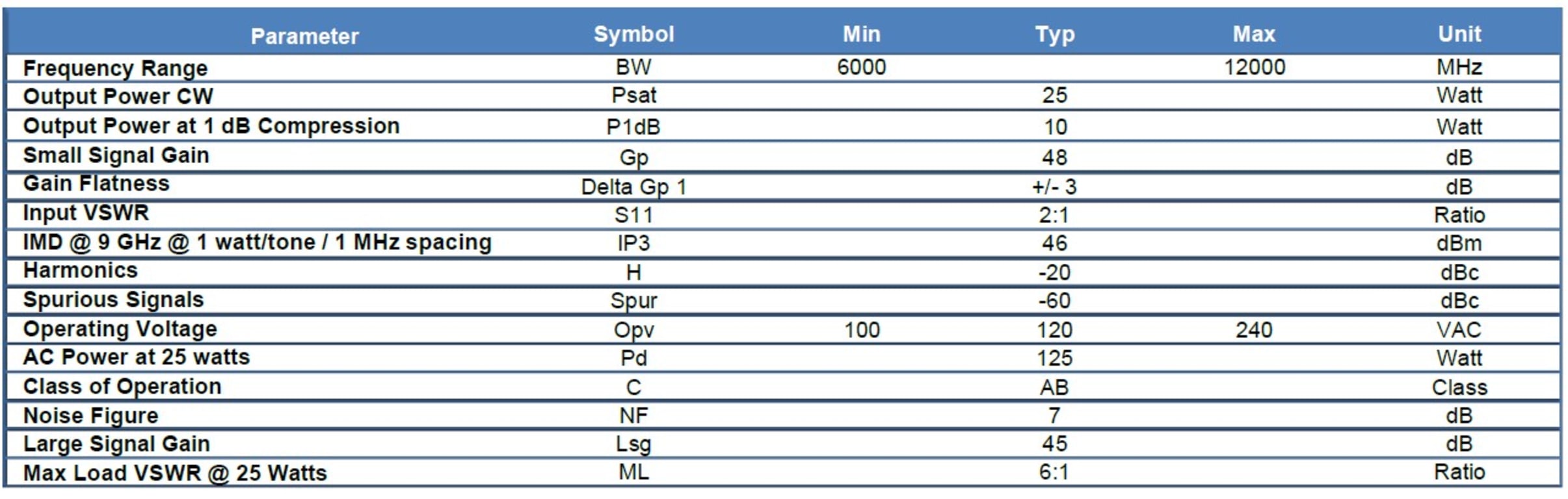

Elite RF AB6.0012G4448AC Specifications
