Elite RF AB6.0018G4348AC – Linear Wideband Power Amplifier (6GHz-18GHz; 20W Psat) Rack Mount
26 people are viewing this product right now
$11,200.00
Shipping calculated at checkout.
Estimated delivery:3 days
6GHz to 18GHz, 20W Psat Linear RF Power Amplifier in 19-inch 2U rack.
- Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
- Frequency Range: 6GHz – 18GHz (BW)
- Output Power CW: 20 Watts (Psat)
- Output Power at 1dB Compression (P1dB): 7 Watts
- Gain: 48dB
- Noise Figure: 7dB
- Supply power: 100 – 240 VAC
- Class of Operation: AB
- Rack mount 19in 2U High
- High Reverse Isolation with Built-in Protection for over voltage and thermal overload
Guarantee Safe and Secure Payment Checkout
Description
Elite RF AB6.0018G4348AC
- Wideband power amplifier designed for CW signals fabricated on GaN on SiC process
- Frequency Range: 6GHz – 18GHz (BW)
- Output Power CW: 20 Watts (Psat)
- Output Power at 1dB Compression (P1dB): 7 Watts
- Gain: 48dB
Linear Wideband Power Amplifier (6GHz-18GHz; 20W Psat) Rack Mount
The Elite RF 6.0GHz to 18.0GHz RF Power Amplifiers incorporate advanced, state-of-the-art RF GaN transistors, reflecting our commitment to advanced engineering. These class AB linear amplifiers are designed for power gain up to 48dB, operate in CW or pulse mode, and feature built-in protection and enable/disable functions. These amplifiers are widely used in X Band and Ku Band applications in defense, radar, communications, industrial and laboratory RF systems.
Elite RF 20MHz – 6GHz RF Power Amplifiers Features (AB6.0018G4348AC)
- Wide Frequency Range
- High Output Power
- High Gain
- High Reverse Isolation
- Built-in Protection for Thermal Overload and Over Voltage

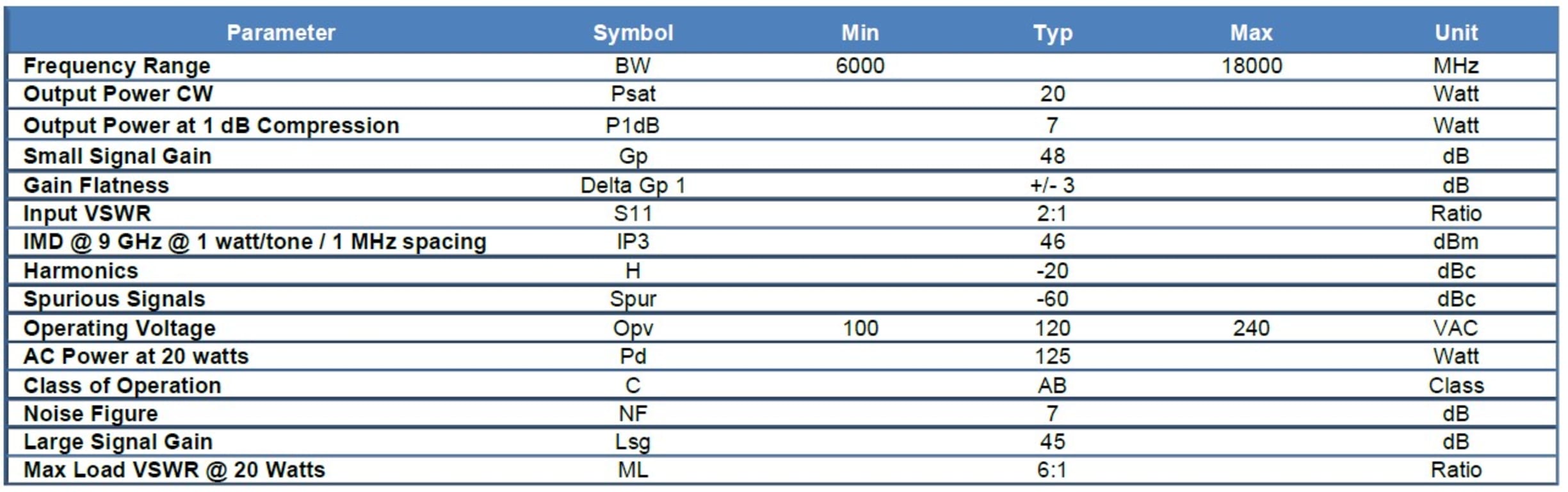

Elite RF AB6.0018G4348AC Specifications
