Description

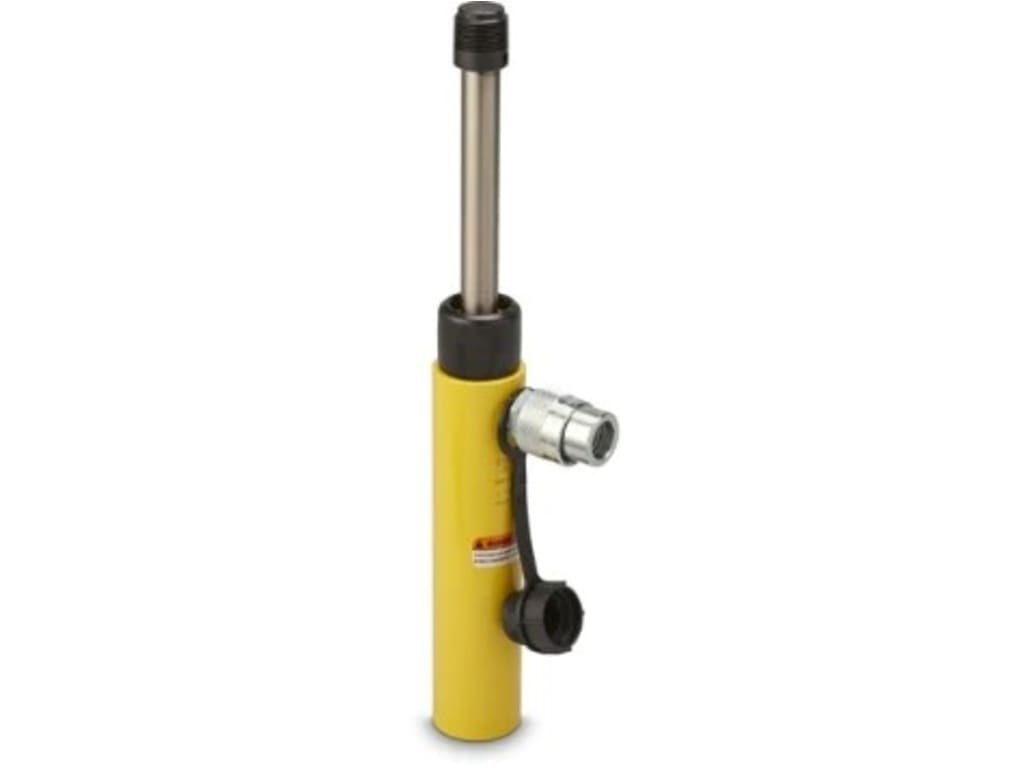

Enerpac BRC25
- Maximum Cylinder Capacity Retract (tons): 2.7| Capacity Class (tonnage): 2.5 | Stroke: 5″
- Single-acting spring return
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Replaceable links
Pull Hydraulic Cylinder, 2.7 Tons Capacity, 5″ Stroke
Enerpac BRC25 is a Baked enamel finish for increased corrosion resistance with High strength alloy steel construction and a Hard chrome-plated plunger for long life. Also, the Plunger wiper reduces contamination, extending cylinder life. Its Single-acting spring return and the Plunger blow-out protection prevent over-extension. The CR-400 coupler and dust cap are included on all models and have Replaceable links.
Enerpac Pull-pac cylinders use hydraulic pressure to produce a pulling or tensioning force. Typical applications include tension testing, weight measurements, tightening tension lines, or as a replacement for conventional ratchet cable pullers, in situations where high force is needed over a short stroke.
Think Safety
Manufacturers’ rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
BRC Series Comparison Table
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Retract (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type | Material |
| BRC25 | 10,000 | 2.5 | 2.7 | 5 | 10.44 | 15.44 | Single-Acting, Spring Return | Solid | Steel |
| BRC46 | 10,000 | 5 | 5.6 | 5.5 | 11.88 | 17.38 | Single-Acting, Spring Return | Solid | Steel |
| BRC106 | 10,000 | 10 | 11.6 | 5.95 | 11.38 | 17.33 | Single-Acting, Spring Return | Solid | Steel |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 4 LBS |
| Product Height | 10.44 IN |
| Product Width | 1.89 IN |
| Shipping Weight | 4.6 LBS |
| Shipping Height | 12 IN |
| Shipping Width | 2.17 IN |
