Enerpac BRP606 – Pull Hydraulic Cylinder, 55.8 Tons Capacity, 6″ Stroke, 34.28″ H
45 people are viewing this product right now
$13,066.90
Shipping calculated at checkout.
Estimated delivery:3 days
Pull hydraulic cylinder, 60 tons capacity class, 6″ stroke, 34.28″ H
- Maximum Cylinder Capacity Retract (tons): 55.8| Capacity Class (tonnage): 60 | Stroke: 6″
- Extended height: 34.28″
- Single-acting spring return
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
Guarantee Safe and Secure Payment Checkout
Description
Enerpac BRP606
- Maximum Cylinder Capacity Retract (tons): 55.8| Capacity Class (tonnage): 60 | Stroke: 6″
- Extended height: 34.28″
- Single-acting spring return
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life

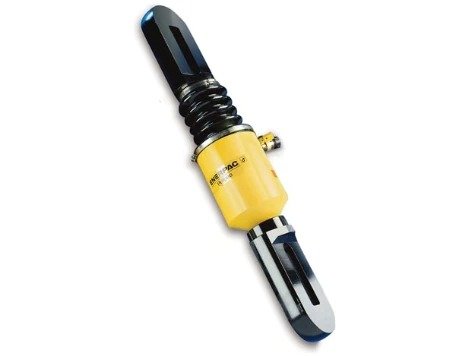

Pull Hydraulic Cylinder, 55.8 Tons Capacity, 6″ Stroke, 34.28″ H
Enerpac BRP606 is a Baked enamel finish for increased corrosion resistance with High strength alloy steel construction and a Hard chrome-plated plunger for long life. Also, the Plunger wiper reduces contamination, extending cylinder life. Its Single-acting spring return and the Plunger blow-out protection prevent over-extension. The CR-400 coupler and dust cap are included on all models and have Replaceable links.

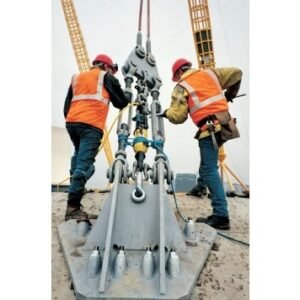

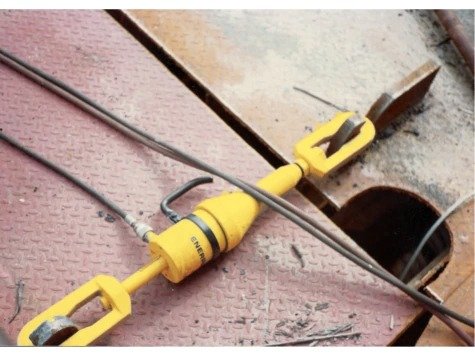

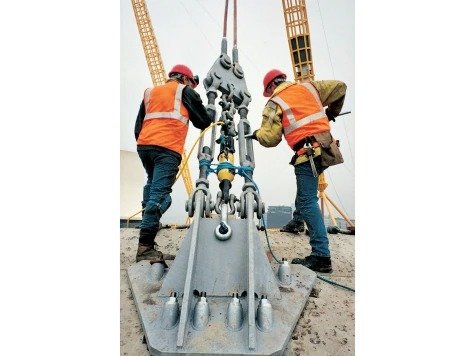

Enerpac Pull-pac cylinders use hydraulic pressure to produce a pulling or tensioning force. Typical applications include tension testing, weight measurements, tightening tension lines, or as a replacement for conventional ratchet cable pullers, in situations where high force is needed over a short stroke.
Think Safety
Manufacturers’ rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings!
BRP Series Comparison Table
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Retract (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type | Material |
| BRP106C | 10,000 | 10 | 11.6 | 5.91 | 23.66 | 29.57 | Single-Acting, Spring Return | Solid | Steel |
| BRP106L | 10,000 | 10 | 11.6 | 5.91 | 22.56 | 28.46 | Single-Acting, Spring Return | Solid | Steel |
| BRP306 | 10,000 | 30 | 35.95 | 6.1 | 43.71 | 49.71 | Single-Acting, Spring Return | Solid | Steel |
| BRP606 | 10,000 | 60 | 55.8 | 6 | 28.28 | 34.28 | Single-Acting, Spring Return | Solid | Steel |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 129 LBS |
| Product Height | 28.28 IN |
| Product Width | 5.51 IN |
| Shipping Weight | 148.35 LBS |
| Shipping Height | 32.52 IN |
| Shipping Width | 6.33 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 129 lbs |
|---|---|
| Dimensions | 5.51 × 28.28 in |
