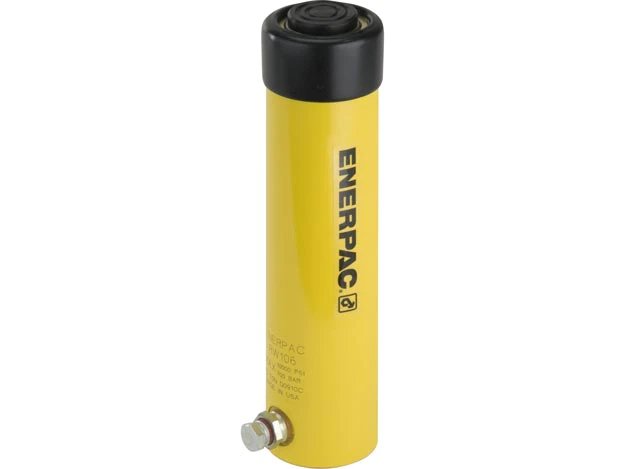

Enerpac BRW106 – General Purpose Hydraulic Cylinder, 155,2 mm Stroke, 50,6 kN Capacity
9 people are viewing this product right now
$746.90
Shipping calculated at checkout.
Estimated delivery:4 days
General purpose hydraulic cylinder, 155,2 mm stroke, 50,6 kN capacity
- 155,2 mm stroke
- 50,6 kN capacity
- Single-acting, spring return
- High pressure 700 bar
- Long stroke lengths in compact design
- Collar thread and base mounting holes
- Hardened snap-in removable saddles
- Chrome plated plunger with bronze upper and lower bearing
Guarantee Safe and Secure Payment Checkout
Description
Enerpac BRW106
- 155,2 mm stroke
- 50,6 kN capacity
- Single-acting, spring return
- High pressure 700 bar
- Long stroke lengths in a compact design
General Purpose Hydraulic Cylinder, 155,2 mm Stroke, 50,6 kN Capacity
The Enerpac BRW106 is a general-purpose hydraulic cylinder with a capacity of 50,6 kN and a stroke of 155,2 mm. This single-acting cylinder handles a variety of applications, providing a high pressure of 700 bars when an additional force is required. Its long stroke lengths in a compact design make it well suited for welding applications, while the collar thread and base mounting holes allow flexible mounting options. The hardened snap-in removable saddles provide additional plunger protection. The chrome-plated plunger with bronze upper and lower bearings provides long life.
BRW Series Comparison Table
| Model Number | Maximum Operating Pressure (bar) | Minimum Operating Pressure (bar) | Stroke (mm) | Cylinder Effective Area Advance (cm2) | Oil Capacity Advance (cm3) | Cylinder Capacity Advance At 350 (bar) |
| BRW101 | 700 | 40 | 25.1 | 14,39 | 36,54 | 50,6 |
| BRW1010 | 700 | 40 | 257.3 | 14,39 | 370,18 | 50,6 |
| BRW102 | 700 | 40 | 55.4 | 14,39 | 77,84 | 50,6 |
| BRW104 | 700 | 40 | 106.2 | 14,39 | 150,92 | 50,6 |
| BRW106 | 700 | 40 | 155.2 | 14,39 | 224,01 | 50,6 |
| BRW51 | 700 | 40 | 25.7 | 6,39 | 16,22 | 22,1 |
| BRW53 | 700 | 40 | 80.5 | 6,39 | 48,67 | 22,1 |
| BRW55 | 700 | 40 | 131.3 | 6,39 | 81,12 | 22,1 |
General Attributes | |
|---|---|
| Shipping Weight | 9.92 LBS |
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
