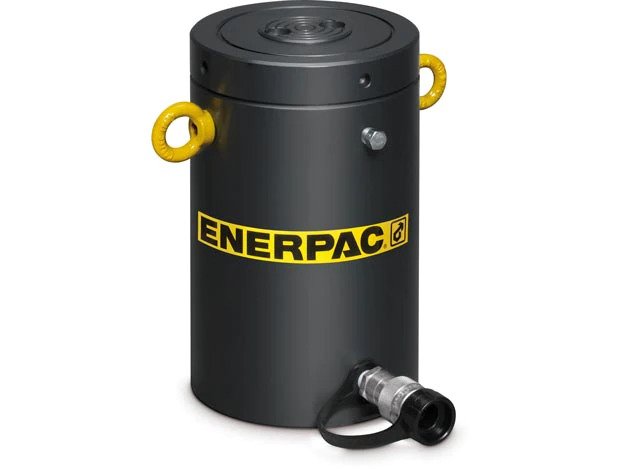

Enerpac HCL15012 – High Tonnage Lock Nut Hydraulic Cylinder, 168 Tons Capacity, 11.81″ Stroke
17 people are viewing this product right now
$7,264.40
Shipping calculated at checkout.
Estimated delivery:3 days
Lock Nut Hydraulic Cylinder, 150 Tons Capacity Class, 11.81″ Stroke
- Maximum Cylinder Capacity Advance (tons): 168| Capacity Class (tonnage): 150 | Stroke: 11.81″
- Single-acting, load return
- Lock nut provides positive and safe mechanical load holding
- Low friction locking rings spin easy, save time and effort
- Designed to withstand 10% side-load up to 90% of maximum stroke
- Hardened surface resists side-loading and cyclic wear
- Overflow port as stroke limiter to prevent plunger blow-out
- Weather protected, inside and out
Guarantee Safe and Secure Payment Checkout
Description
Enerpac HCL15012
- Capacity Class (tonnage): 150
- Stroke (in): 11.81
- Surface Treatment: Nitride
- Return Type: Single-Acting, Load Return
- Maximum Cylinder Capacity Advance (tons): 168
High Tonnage Lock Nut Hydraulic Cylinder, 168 Tons Capacity, 11.81″ Stroke

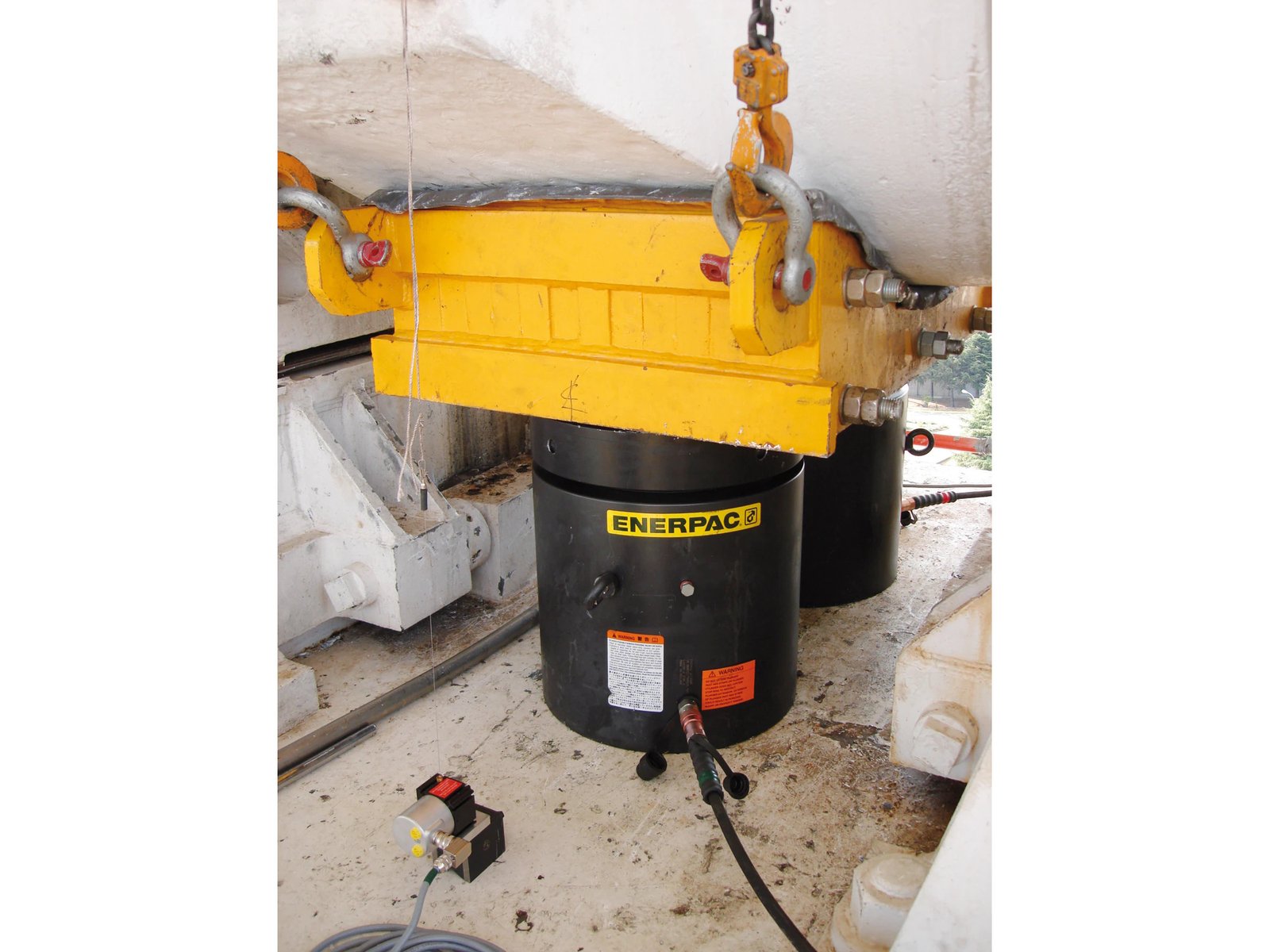

Enerpac HCL-Series lock nut cylinders are an ideal solution for a wide variety of commercial and industrial lifting applications. All HCL-Series cylinders are single-acting, with hydraulic advance and load return. An integral lock nut allows the load to be mechanically supported when hydraulic pressure is relieved.
HCL Series Comparison
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| HCL10010 | 10,000 | 100 | 113 | 9.84 | 15.24 | 25.08 | Single-Acting, Load Return | Solid |
| HCL10012 | 10,000 | 100 | 113 | 11.81 | 17.2 | 29.02 | Single-Acting, Load Return | Solid |
| HCL1002 | 10,000 | 100 | 113 | 1.97 | 7.36 | 9.33 | Single-Acting, Load Return | Solid |
| HCL1004 | 10,000 | 100 | 113 | 3.94 | 9.33 | 13.27 | Single-Acting, Load Return | Solid |
| HCL1006 | 10,000 | 100 | 113 | 5.91 | 11.3 | 17.2 | Single-Acting, Load Return | Solid |
| HCL1008 | 10,000 | 100 | 113 | 7.87 | 13.27 | 21.14 | Single-Acting, Load Return | Solid |
| HCL15010 | 10,000 | 150 | 168 | 9.84 | 16.1 | 25.94 | Single-Acting, Load Return | Solid |
| HCL15012 | 10,000 | 150 | 168 | 11.81 | 18.07 | 29.88 | Single-Acting, Load Return | Solid |
| HCL1502 | 10,000 | 150 | 168 | 1.97 | 8.23 | 10.2 | Single-Acting, Load Return | Solid |
| HCL1504 | 10,000 | 150 | 168 | 3.94 | 10.2 | 14.13 | Single-Acting, Load Return | Solid |
| HCL1506 | 10,000 | 150 | 168 | 5.91 | 12.17 | 18.07 | Single-Acting, Load Return | Solid |
| HCL1508 | 10,000 | 150 | 168 | 7.87 | 14.13 | 22.01 | Single-Acting, Load Return | Solid |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 287 LBS |
| Product Height | 18.07 IN |
| Product Width | 8.46 IN |
| Shipping Weight | 330.05 LBS |
You must be logged in to post a review.
Manuals/Guides
| Weight | 287 lbs |
|---|---|
| Dimensions | 8.46 × 18.07 in |
