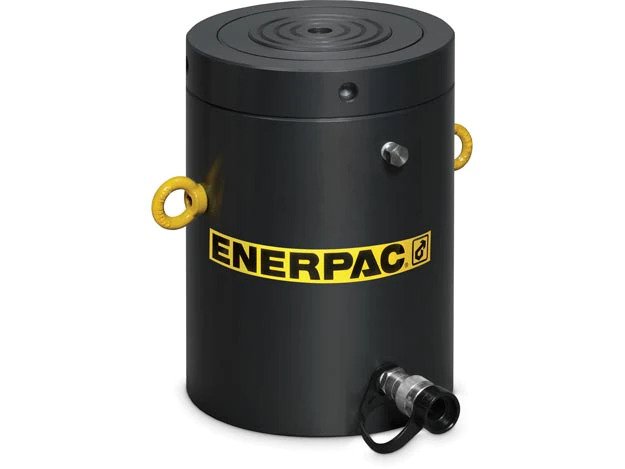

Enerpac HCL2008 – High Tonnage Lock Nut Hydraulic Cylinder, 223 Tons Capacity, 7.87″ Stroke
35 people are viewing this product right now
$7,810.00
Shipping calculated at checkout.
Estimated delivery:5 days
Lock Nut Hydraulic Cylinder, 200 Tons Capacity Class, 7.87″ Stroke
- Maximum Cylinder Capacity Advance (tons): 223| Capacity Class (tonnage): 200 | Stroke: 7.87″
- Single-acting, load return
- Lock nut provides positive and safe mechanical load holding
- Low friction locking rings spin easy, save time and effort
- Designed to withstand 10% side-load up to 90% of maximum stroke
- Hardened surface resists side-loading and cyclic wear
- Overflow port as stroke limiter to prevent plunger blow-out
- Weather protected, inside and out
Guarantee Safe and Secure Payment Checkout
Description
Enerpac HCL2008
- Capacity Class (tonnage): 200
- Stroke (in): 7.87
- Surface Treatment: Nitride
- Return Type: Single-Acting, Load Return
- Maximum Cylinder Capacity Advance (tons): 223
High Tonnage Lock Nut Hydraulic Cylinder, 223 Tons Capacity, 7.87″ Stroke
Enerpac HCL-Series lock nut cylinders are an ideal solution for a wide variety of commercial and industrial lifting applications. All HCL-Series cylinders are single-acting, with hydraulic advance and load return. An integral lock nut allows the load to be mechanically supported when hydraulic pressure is relieved.
HCL Series Comparison
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| HCL20010 | 10,000 | 200 | 223 | 9.84 | 17.24 | 27.09 | Single-Acting, Load Return | Solid |
| HCL20012 | 10,000 | 200 | 223 | 11.81 | 19.21 | 31.02 | Single-Acting, Load Return | Solid |
| HCL2002 | 10,000 | 200 | 223 | 1.97 | 9.37 | 11.34 | Single-Acting, Load Return | Solid |
| HCL2004 | 10,000 | 200 | 223 | 3.94 | 11.34 | 15.28 | Single-Acting, Load Return | Solid |
| HCL2006 | 10,000 | 200 | 223 | 5.91 | 13.31 | 19.21 | Single-Acting, Load Return | Solid |
| HCL2008 | 10,000 | 200 | 223 | 7.87 | 15.28 | 23.15 | Single-Acting, Load Return | Solid |
| HCL5010 | 10,000 | 50 | 62 | 9.84 | 14.33 | 24.17 | Single-Acting, Load Return | Solid |
| HCL5012 | 10,000 | 50 | 62 | 11.81 | 16.3 | 28.11 | Single-Acting, Load Return | Solid |
| HCL502 | 10,000 | 50 | 62 | 1.97 | 6.46 | 8.43 | Single-Acting, Load Return | Solid |
| HCL504 | 10,000 | 50 | 62 | 3.94 | 8.43 | 12.36 | Single-Acting, Load Return | Solid |
| HCL506 | 10,000 | 50 | 62 | 5.91 | 10.39 | 16.3 | Single-Acting, Load Return | Solid |
| HCL508 | 10,000 | 50 | 62 | 7.87 | 12.36 | 20.24 | Single-Acting, Load Return | Solid |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 316 LBS |
| Product Height | 15.28 IN |
| Product Width | 9.84 IN |
| Shipping Weight | 363.4 LBS |
You must be logged in to post a review.
Manuals/Guides
| Weight | 316 lbs |
|---|---|
| Dimensions | 9.84 × 15.28 in |
