Enerpac HCR100012 – High Tonnage Hydraulic Cylinder, 1196 Ton Capacity, 11.81″ Stroke

• Fast advance and retract
• 10% side-load resistance over full stroke
• Hardened surface resists side-loading and cyclic wear
• Weather protected, inside and out
• Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke

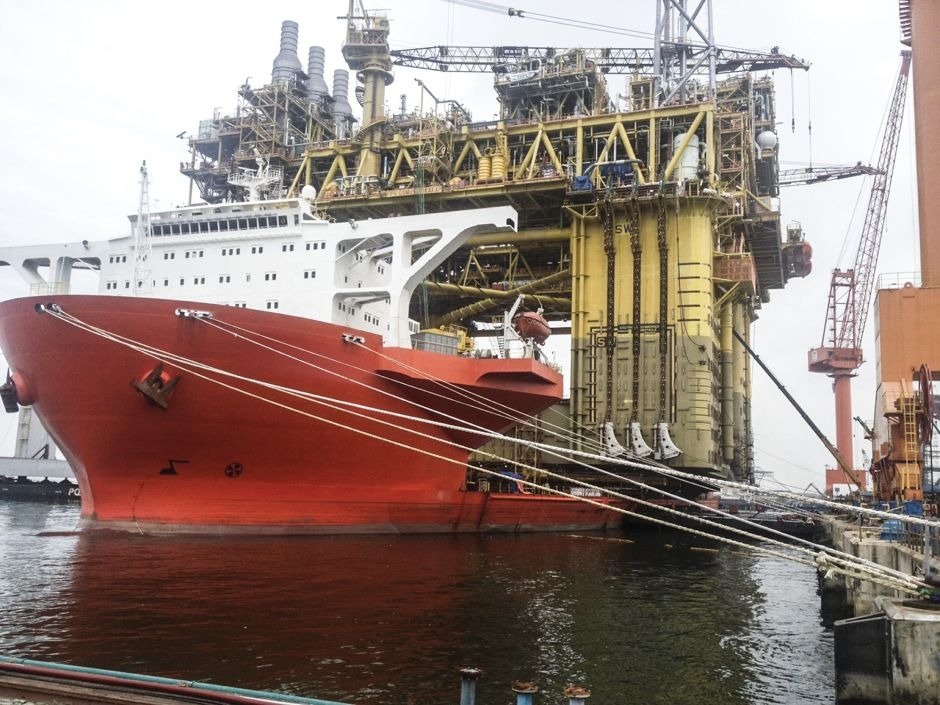

Enerpac HCR-Series high tonnage hydraulic cylinders are an ideal solution for a wide variety of commercial and industrial lifting applications.

HCR-Series models are double-acting with hydraulic advance and return. The hydraulic return feature allows greater control during lowering and provides positive retraction of the plunger. Note that the HCR-Series cylinders are not designed for pulling applications.

Optional Collar Thread

Collar thread is optional on 300 ton models and higher

For collar thread on cylinder add suffix “E002” to the end of the model number

The collar thread length is designed for full rated capacity

Thread Size (W): M570 x 5

Thread Length (X): 5.39 in (137 mm)
