Enerpac HCS20 – Hollow Plunger Hydraulic Cylinder, 4830 lbs. Capacity, 0.40″ Stroke
27 people are viewing this product right now
$542.30
Shipping calculated at checkout.
Estimated delivery:5 days
Hollow plunger hydraulic cylinder, 4830 lbs. capacity, 0.40″ stroke
- 0.4″ stroke
- 4830 lbs maximum cylinder capacity advance
- 5000 psi maximum operating pressure
- Load can be attached to either end of the cylinder
- Very high cylinder capacities contained within small dimensions
- Nickel-plated plungers, plunger wipers and internal venting
- Spring return operation
- Threaded collars and base mounting holes
Guarantee Safe and Secure Payment Checkout
Description
Enerpac HCS20
- 0.4in Stroke
- 4830 lbs Maximum Cylinder Capacity Advance.
- 5000 psi Maximum Operating Pressure.
- Single-Acting, Spring Return
- 2.4lbs Weight

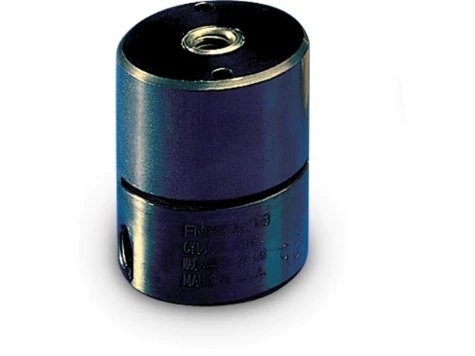

Hollow Plunger Hydraulic Cylinder, 4830 lbs. Capacity, 0.40″ Stroke
The Enerpac HCS20 is a hollow plunger hydraulic cylinder with a capacity of 4830 lbs. and a stroke of 0.40″. The load can be attached to either end of the cylinder, providing a choice of push or pull actions – both realizing full cylinder capacity. A very high cylinder capacity contained within small dimensions allows for compact fixture designs. A spring return operation allows for easy unloading of the workpiece. The threaded collars and base mounting holes allow mounting flexibility, including table-top surfaces and T-slots. Moreover, the nickel-plated plungers, plunger wipers, and internal venting prevent corrosion and support longer operation life on all HCS models
HCS Series Comparison Table
| Model Number | Maximum Cylinder Capacity Advance (lbs) | Return Type | Plunger Type | Material | Cylinder Effective Area Advance (cu.sq) | Oil Capacity Advance (cu.in) |
| HCS20 | 4,830 | Single-Acting, Spring Return | Hollow | Steel | 0.96 | 0.38 |
| HCS50 | 12,660 | Single-Acting, Spring Return | Hollow | Steel | 2.52 | 1.19 |
| HCS80 | 18,180 | Single-Acting, Spring Return | Hollow | Steel | 3.63 | 1.99 |
| HCS110 | 25,490 | Single-Acting, Spring Return | Hollow | Steel | 5.06 | 3.19 |
General Attributes | |
|---|---|
| Product Weight | 2.4 LBS |
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
