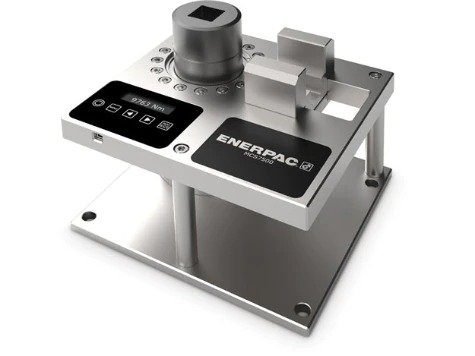

Enerpac MCS7500C – Mobile Calibration System w/ Carrying Case

• The tool database feature allows specific wrench data and calibration results to be recorded and saved for future use
• The compact design facilitates easy transport, allowing calibration to be carried out in the shop, on job sites, or even in a vehicle
• An integrated digital interface enables torque values to be displayed, saved, printed, or transferred to a computer

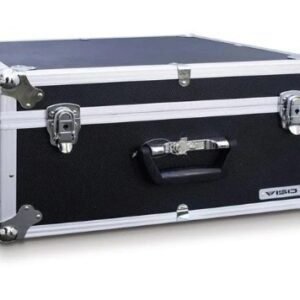

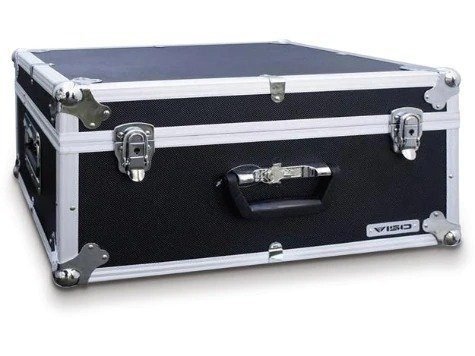

• The high-strength case provides secure and convenient transportation and storage
• It comes with a standard ISO17025 calibration

The MCS-Series Mobile Calibration System is the solution of choice for users with a wide range of controlled bolting tools being used in diverse locations.

The compact and lightweight construction is equally at home in the field or the back of a van, capable of accurately measuring torque from 148 to 7375 Ft.lbs.

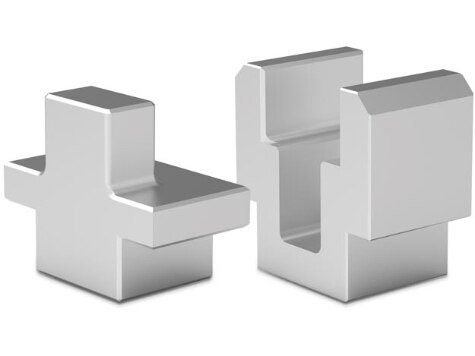

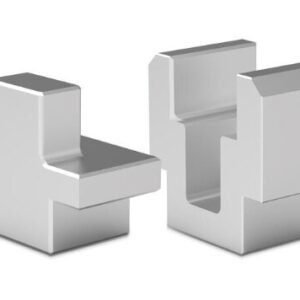

A heavy-duty, adjustable reaction block facilitates use with all Enerpac continuous rotation tools, and most competitive tools. A secondary reaction post enables use with those tools that won’t fit the standard reaction block.

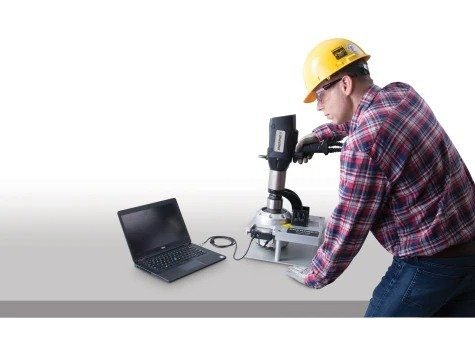

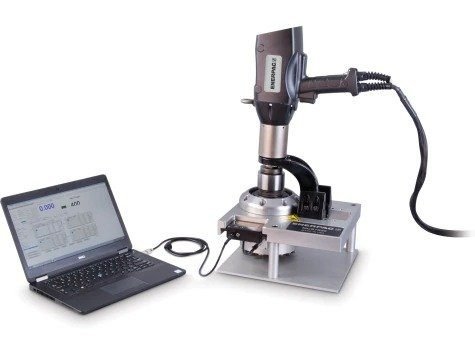

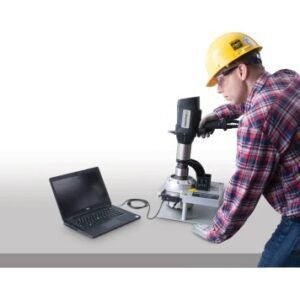

Simply mount the wrench to be calibrated onto the MCS, position the reaction arm into the reaction block, and actuate the wrench. A digital display indicates the torque output.

An integrated software (comes with standard MCS package) allows multiple runs to be recorded, graphed, displayed or printed using a computer equipped with Microsoft Windows (computer not included).

The software package also facilitates the creation of calibration certificates utilizing preset or operator designated calibration parameters.

When the job is finished, the calibration test results or certificate can be printed or stored electronically for later reference.

Versatility

• Accurately measures torque output for continuous rotation tools and hydraulic (*) torque wrenches from 148-7375 Ft.lbs (200-10,000 Nm)
• Adaptable design enables use with a large variety of Enerpac and competitive wrenches
• Internal Li-ion battery pack, external power via 5V DC USB power supply

Performance

• Certificate Manager feature enables quick and easy creation of calibration certificates
• Tool database feature allows specific wrench data and calibration results to be recorded and saved for future use

Ease of Use

• Compact design facilitates easy transport, allowing calibration to be carried out in the shop, on jobsites, or even in a vehicle
• Integrated digital interface enables torque values to be displayed, saved, printed or transferred to a computer
• High-strength case provides secure and convenient transportation and storage

Integrated software enables creation of unique calibration tests, and generation of calibration certificates.

Each MCS comes with a standard ISO17025 calibration.

* Additional Reaction Block and appropriate Adaptor is required with the use of S- and RSL-Series square drive hydraulic wrenches.
